Chapter 6 Control TerminalsC2000
6-5
Frame D0 & D
Applicable models:
VFD370C43S; VFD450C43S; VFD370C43U; VFD450C43U; VFD300C23A; VFD370C23A;
VFD550C43A; VFD750C43A; VFD300C23E; VFD370C23E; VFD550C43E; VFD750C43E; VFD450C63B-00;
VFD550C63B-00; VFD450C63B-21; VFD550C63B-21
Screw torque: 12–15 kg-cm / [10.4–13 lb-in.] / [1.2–1.5 Nm]
To remove the cover, lift it slightly and pull outward.
Loosen the screws and press the tabs on both sides to remove the cover.

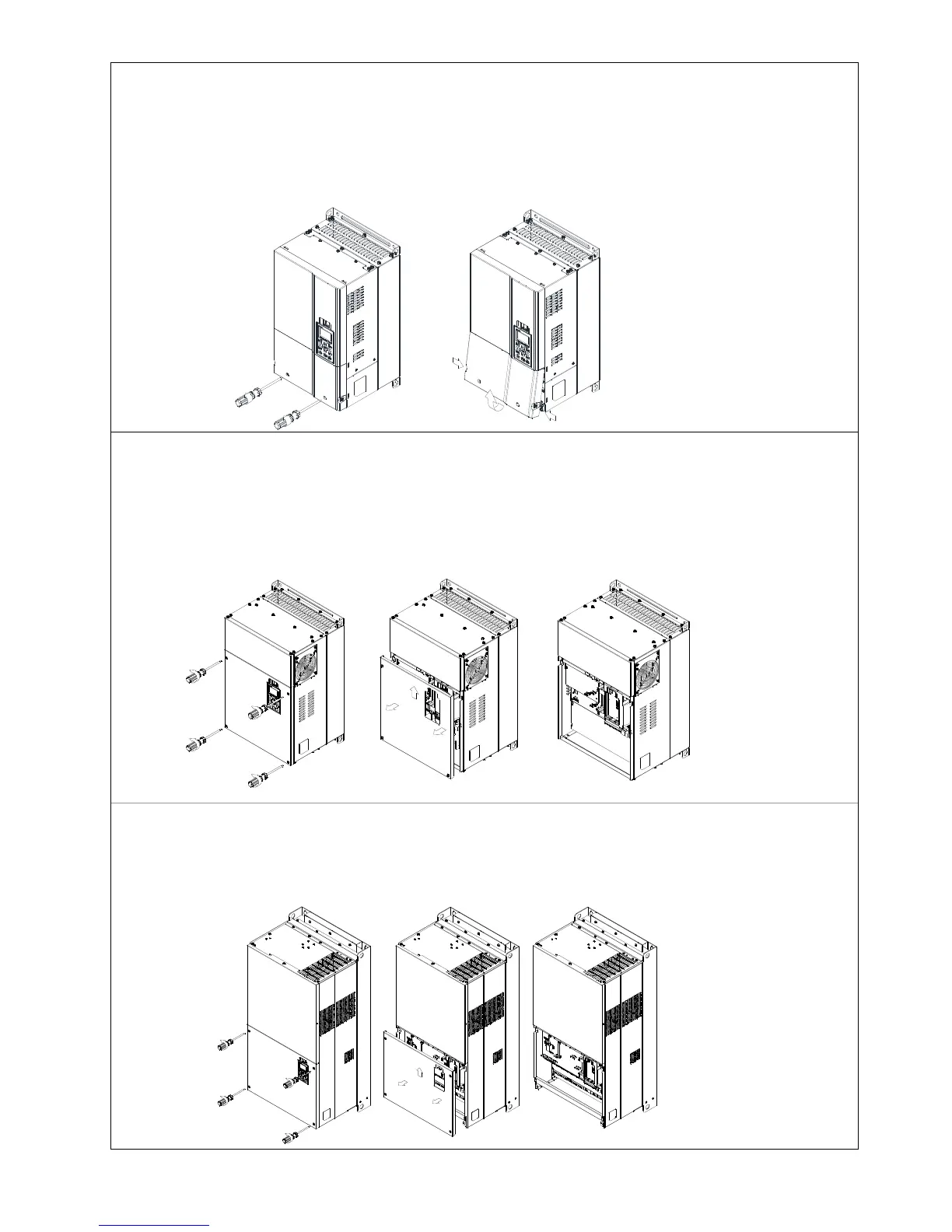

Figure 6-8
Frame E
Applicable models:
VFD450C23A; VFD550C23A; VFD750C23A; VFD900C43A; VFD1100C43A;
VFD450C23E; VFD550C23E; VFD750C23E; VFD900C43E; VFD1100C43E; VFD750C63B-00;
VFD900C63B-00; VFD1100C63B-00; VFD1320C63B-00; VFD750C63B-21; VFD900C63B-21;
VFD1100C63B-21; VFD1320C63B-21
Screw torque: 12–15 kg-cm / [10.4–13 lb-in.] / [1.2–1.5 Nm]
To remove the cover, lift it slightly and pull outward.
Figure 6-9
Frame F
Applicable models:
VFD900C23A; VFD1320C43A; VFD1600C43A; VFD900C23E; VFD1320C43E;
VFD1600C43E; VFD1600C63B-00; VFD2000C63B-00; VFD1600C63B-21; VFD2000C63B-21
Screw torque: 12–15 kg-cm / [10.4–13 lb-in.] / [1.2–1.5 Nm]
To remove the cover, lift it slightly and pull outward.
Figure 6-10
