Delta C2000 Series User Manual

Chapter 6 Control TerminalsC2000
6-6

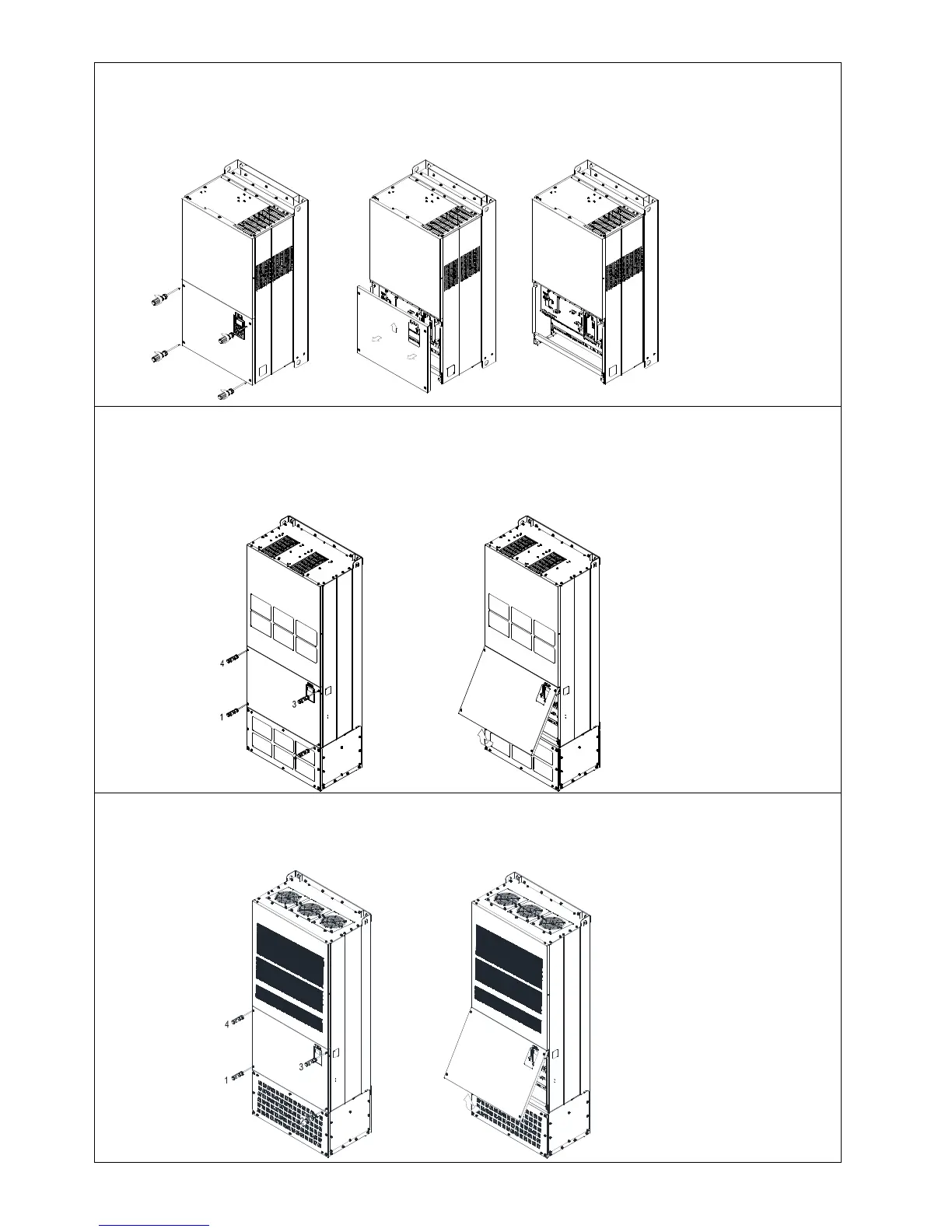

Frame G
Applicable models:
VFD1850C43A; VFD2200C43A; VFD1850C43E; VFD2200C43E; VFD2500C63B-00;
VFD3150C63B-00; VFD2500C63B-21; VFD3150C63B-21
Screw torque: 12–15 kg-cm / [10.4–13 lb-in.] / [1.2–1.5 Nm]
To remove the cover, lift it slightly and pull outward.
Figure 6-11
Frame H
Applicable models:
VFD2800C43A; VFD3150C43A; VFD3550C43A; VFD4500C43A; VFD2800C43E-1;
VFD3150C43E-1; VFD3550C43E-1; VFD4500C43E-1; VFD2800C43E; VFD3150C43E; VFD3550C43E;
VFD4500C43E; VFD4000C63B-00; VFD4500C63B-00; VFD5600C63B-00; VFD6300C63B-00
Screw torque: 14–16 kg-cm / [12.15–13.89 lb-in.] / [1.4–1.6 Nm]
To remove the cover, lift it slightly and pull outward.
Figure 6-12
690V Frame H3
Applicable models:
VFD4000C63B-21; VFD4500C63B-21; VFD5600C63B-21; VFD6300C63B-21
Screw torque: 14–16 kg-cm [12.15–13.89 lb-in.] [1.37–1.57 Nm]
To remove the cover, lift it slightly and pull outward.
Figure 6-13

Delta C2000 Series Specifications

General

Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Overload Capacity	150% of rated current for 60 seconds
Communication	DeviceNet
Protection	Overvoltage, Undervoltage, Overcurrent, Overload, Overheat
Humidity	5% to 95% (non-condensing)
Cooling	Forced air cooling
Control Mode	V/F Control, Sensorless Vector Control
