Delta C2000 Series - Page 123

Chapter 7 Optional AccessoriesC2000
7-16

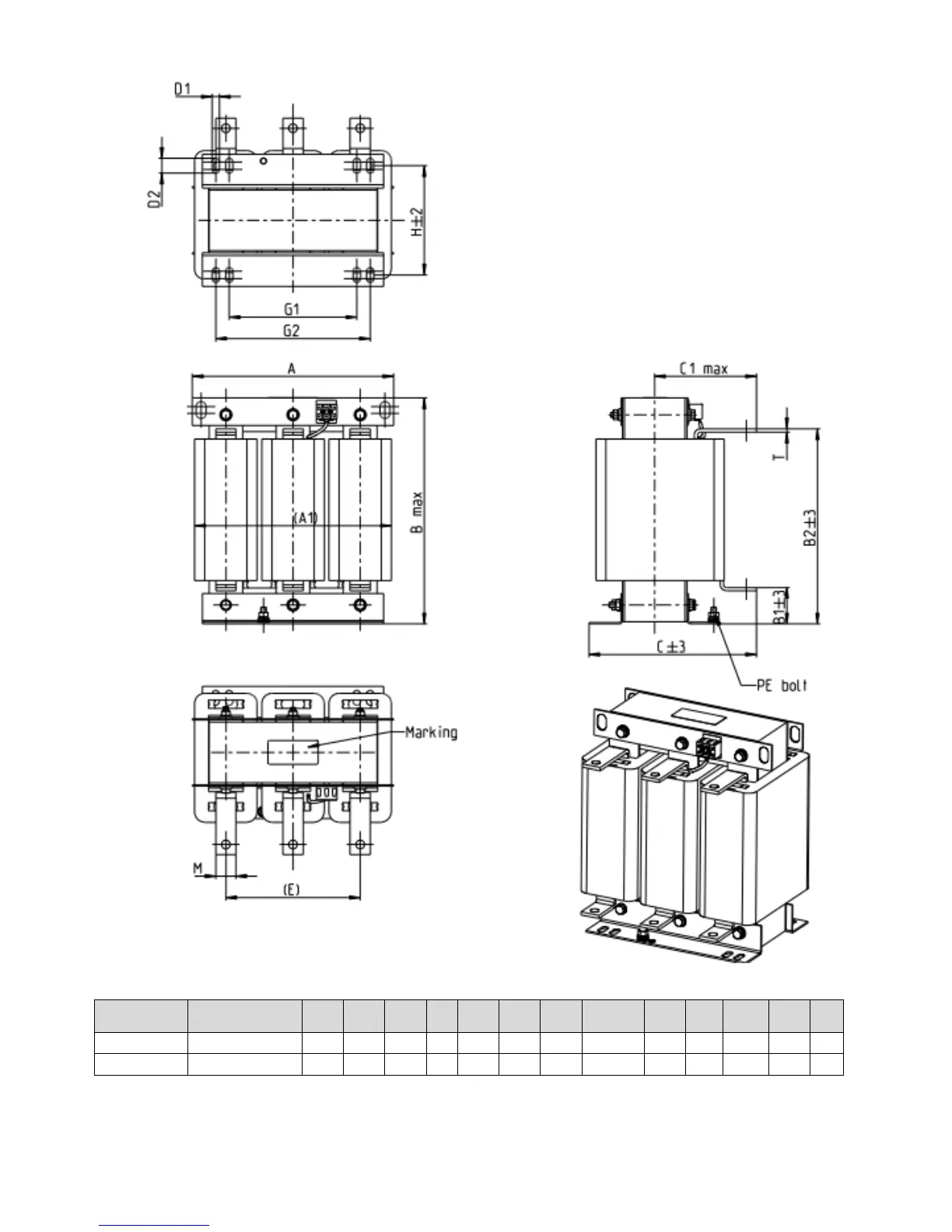

Unit: mm
Model
Input AC reactor
Delta part #
A A1 B B1 B2 C C1 D1*D2 E G1 H M*T PE
VFD750C23A DR276AP049 270 255 310 50 265 200 130 10*18 176 200 106 30*5 M8
VFD900C23A DR349AP037 270 260 333 50 285 200 130 10*18 176 200 106 30*5 M8
Table 7-22
