Delta C2000 Series User Manual

Chapter 7 Optional AccessoriesC2000
7-15
Unit: mm

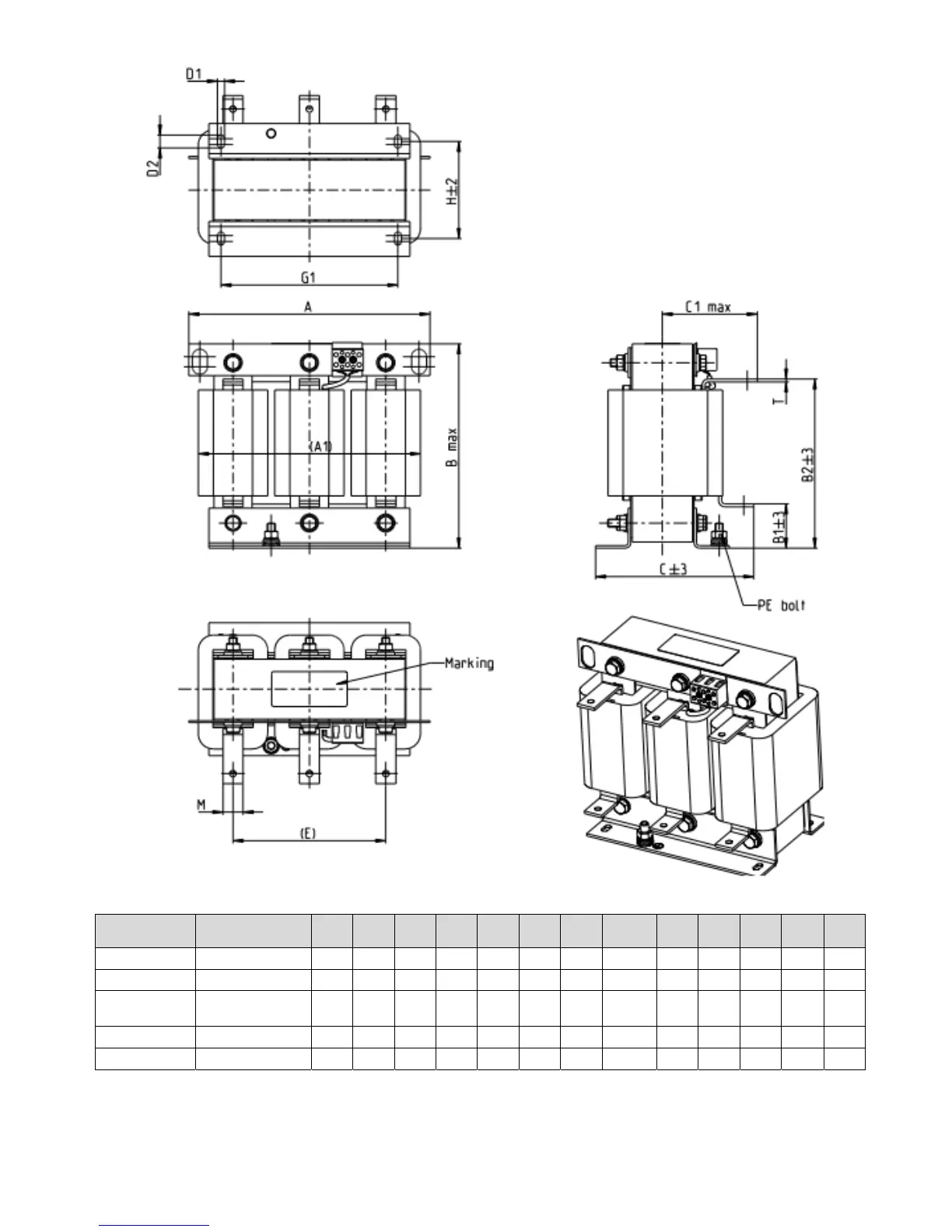

Model
Input AC reactor
Delta part #
A A1 B B1 B2 C C1 D1*D2 E G1 H M*T PE
VFD185C23A DR075AP170 240 220 205 42 165 151 95 7*13 152 176 85 20*3 M8
VFD220C23A DR090AP141 240 225 210 44 170 151 95 7*13 152 176 85 20*3 M8
VFD300C23A
VFD370C23A
DR146AP087 240 225 240 44 200 163 100 7*13 152 176 97 20*3 M8
VFD450C23A DR180AP070 250 235 250 49 206 175 105 11*18 160 190 124 30*3 M8
VFD550C23A DR215AP059 250 235 275 51 226 180 110 11*18 160 190 124 30*5 M8
Table 7-21

Delta C2000 Series Specifications

General

Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Overload Capacity	150% of rated current for 60 seconds
Communication	DeviceNet
Protection	Overvoltage, Undervoltage, Overcurrent, Overload, Overheat
Humidity	5% to 95% (non-condensing)
Cooling	Forced air cooling
Control Mode	V/F Control, Sensorless Vector Control
