Delta C2000 Series User Manual

Chapter 7 Optional AccessoriesC2000
7-41

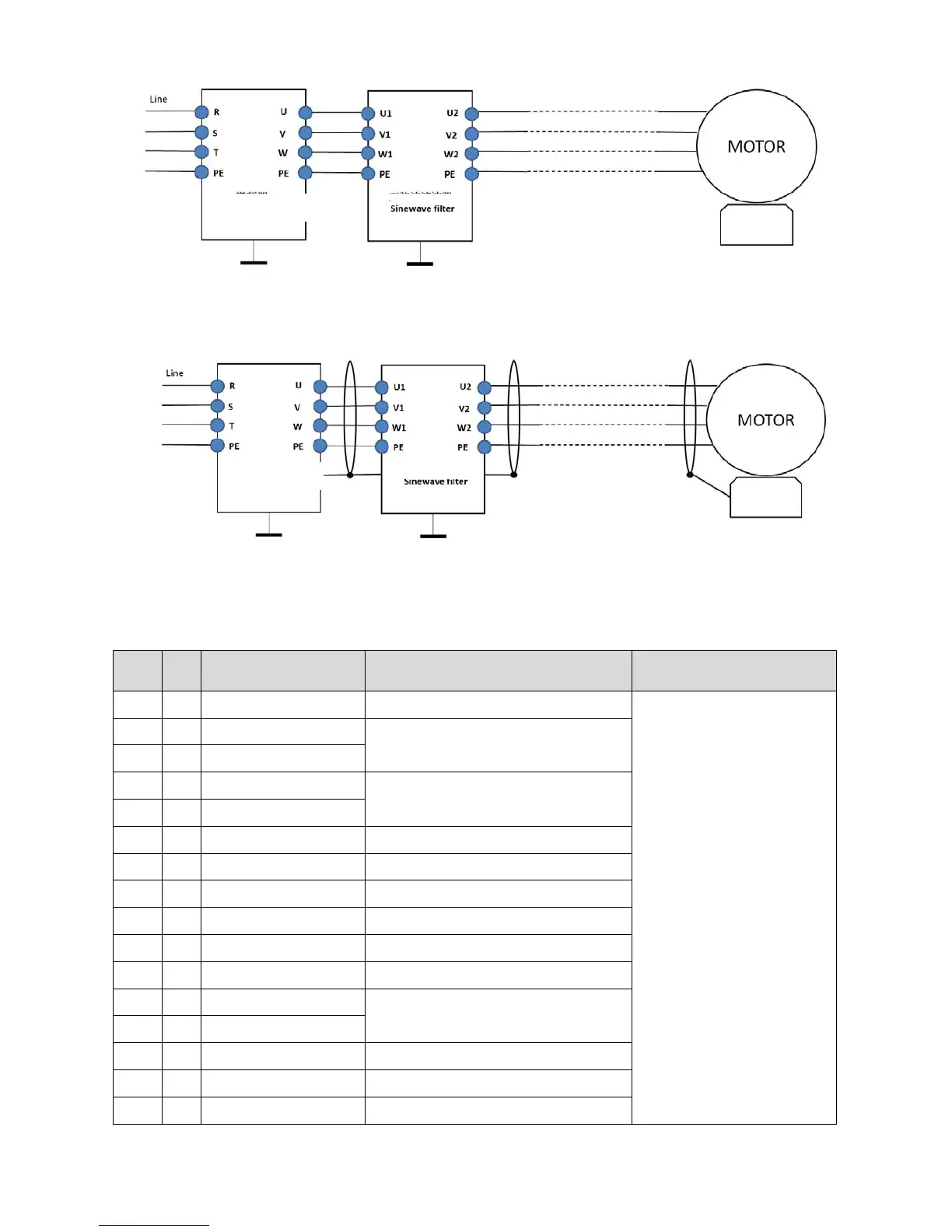

Wiring of non-shielded cable
Wiring of shielded cable
Following table shows the sin-wave filter specification of Delta C2000
200V~230V/ 50~60Hz
kW HP Rated current (Arms) Suggested sine-wave filter part #
Output cable length [m]
(Shielded or non-shielded)
0.75 1 5 B84143V0006R227
1000
1.5 2 8
B84143V0011R227
2.2 3 11
3.7 5 17
B84143V0025R227
5.5 7.5 25
7.5 10 33 B84143V0033R227
11 15 49 B84143V0050R227
15 20 65 B84143V0066R227
18.5 25 75 B84143V0075R227
22 30 90 B84143V0095R227
30 40 120 B84143V0132R227
37 50 146
B84143V0180R227
45 60 180
55 75 215 B84143V0250R227
75 100 255 B84143V0320R227
90 125 346 Please contact supplier EPCOS
AC motor drive
AC motor drive
Table 7-50

Delta C2000 Series Specifications
