Delta C2000 Series User Manual

Chapter 7 Optional AccessoriesC2000
7-94
 Fan Removal
Frame A
Model “MKC-AFKM” : Heat Sink Fan
Applicable model
VFD015C23A; VFD022C23A; VFD037C23A; VFD022C43A/43E; VFD037C43A/43E; VFD040C43A/43E; VFD055C43A/43E;
VFD015C53A-21; VFD022C53A-21; VFD037C53A-21

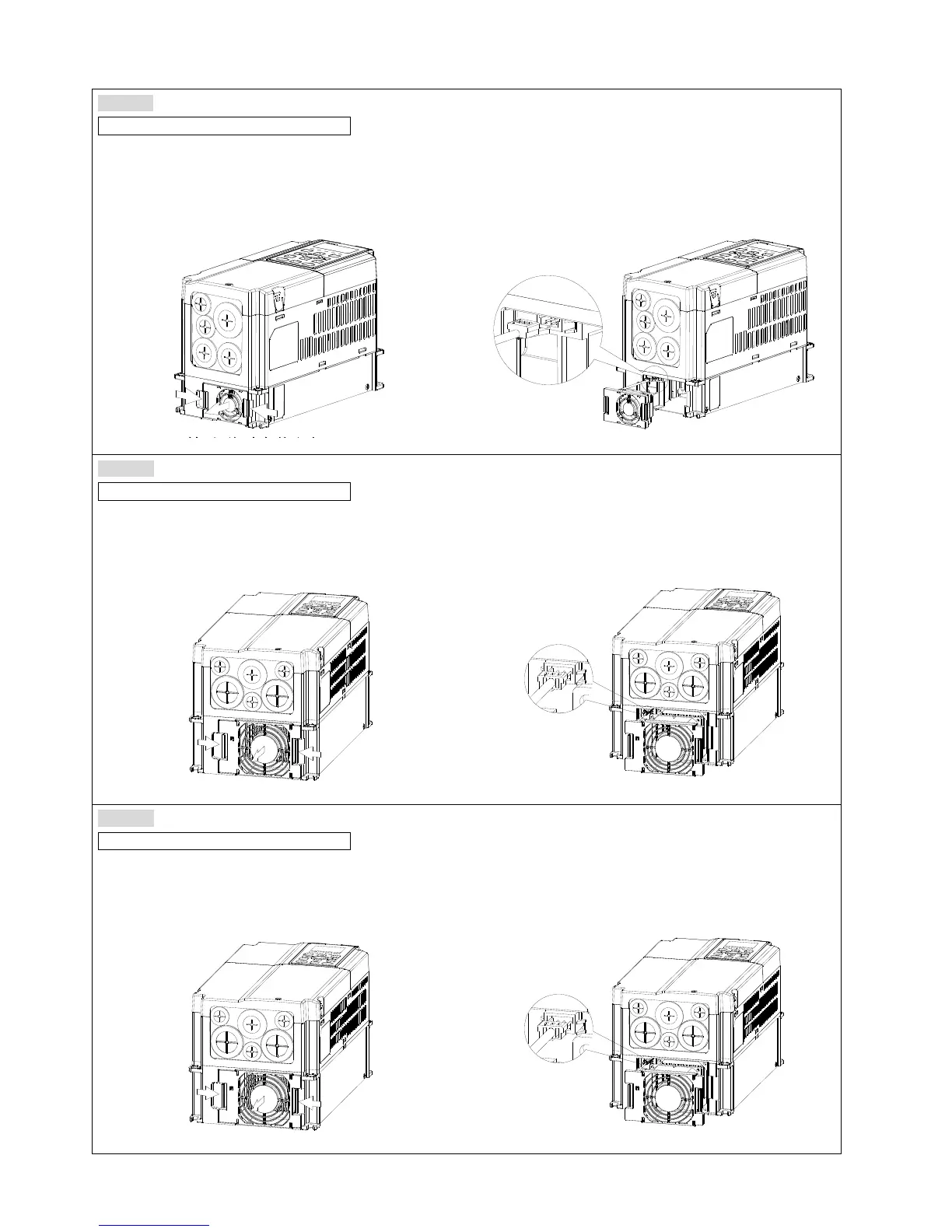

1. Refer to Figure 1, press the tabs on both side of the
fan to successfully remove the fan.
Figure 1
2. Disconnect the power terminal before removing the
fan. (As shown below.)
Figure 2
Frame B
Model ”MKC-BFKM1” Heat Sink Fan
Applicable model
VFD055C23A; VFD075C43A/43E; VFD055C53A-21; VFD075C53A-21; VFD110C53A-21; VFD150C53A-21
1. Refer to Figure 1, press the tab on both side of the
fan to successfully remove the fan.
Figure 1
2. Disconnect the power terminal before removing the
fan. (As shown below.)
Figure 2
Frame B
Model “MKC-BFKM2” Heat Sink Fan
Applicable model
VFD075C23A; VFD110C23A; VFD110C43A/43E; VFD150C43A/43E
1. Refer to Figure 1, press the tab on both side of the fan
to successfully remove the fan.
Figure 1
2. Disconnect the power terminal before removing the
fan. (As shown below.)
Figure 2
