Chapter 7 Optional AccessoriesC2000
7-95
Frame B
Model ”MKC-BFKB” Capacitor Fan
Applicable model
VFD055C23A; VFD075C23A; VFD110C23A; VFD075C43A/43E; VFD110C43A/43E; VFD150C43A/43E; VFD055C53A-21;
VFD075C53A-21; VFD110C53A-21; VFD150C53A-21
Disconnect fan power and pull out the fan by using flathead screwdriver. (As shown in the larger picture)
Frame C
Model ”MKC-CFKM / MKC-CFKM1” Heat Sink Fan
Applicable model
Single fan kit applicable models (only fan kit 1 is required to be installed):
VFD185C43A/E; VFD220C43A/E; VFD300C43A; VFD185C63B-21; VFD220C63B-21; VFD300C63B-21; VFD370C63B-21
Duo fan kit applicable models (both fan kit 1 and 2 are required to be installed):
VFD150C23A; VFD185C23A; VFD220C23A; VFD300C43E

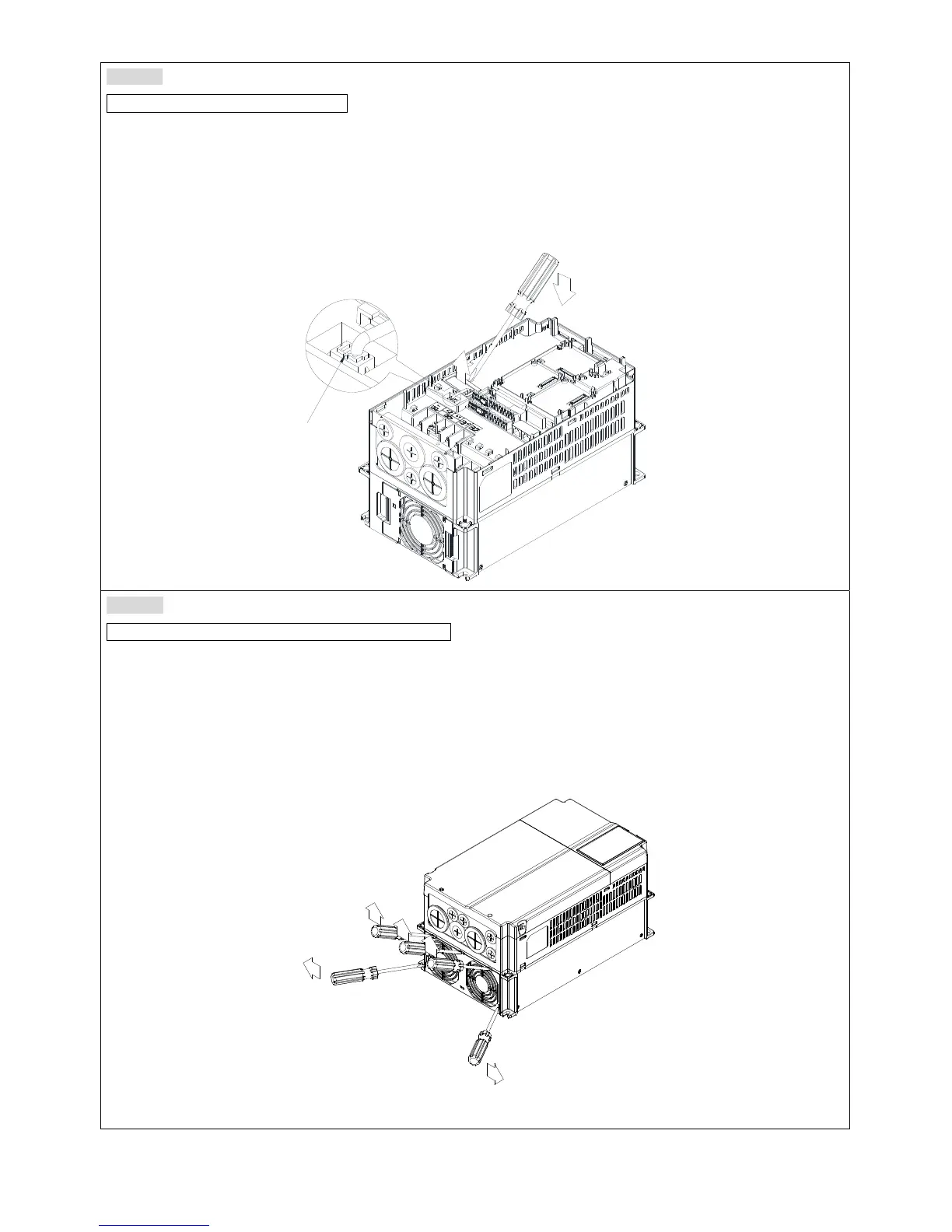

1. (As shown Figure 1) Before removing the fan, remove the cover by using a slotted screwdriver.
Figure 1
Disconnect fan power and pull out the
fan by flathead screwdriver
Pay attention to direction of the
latch during the installation
To Next Page
