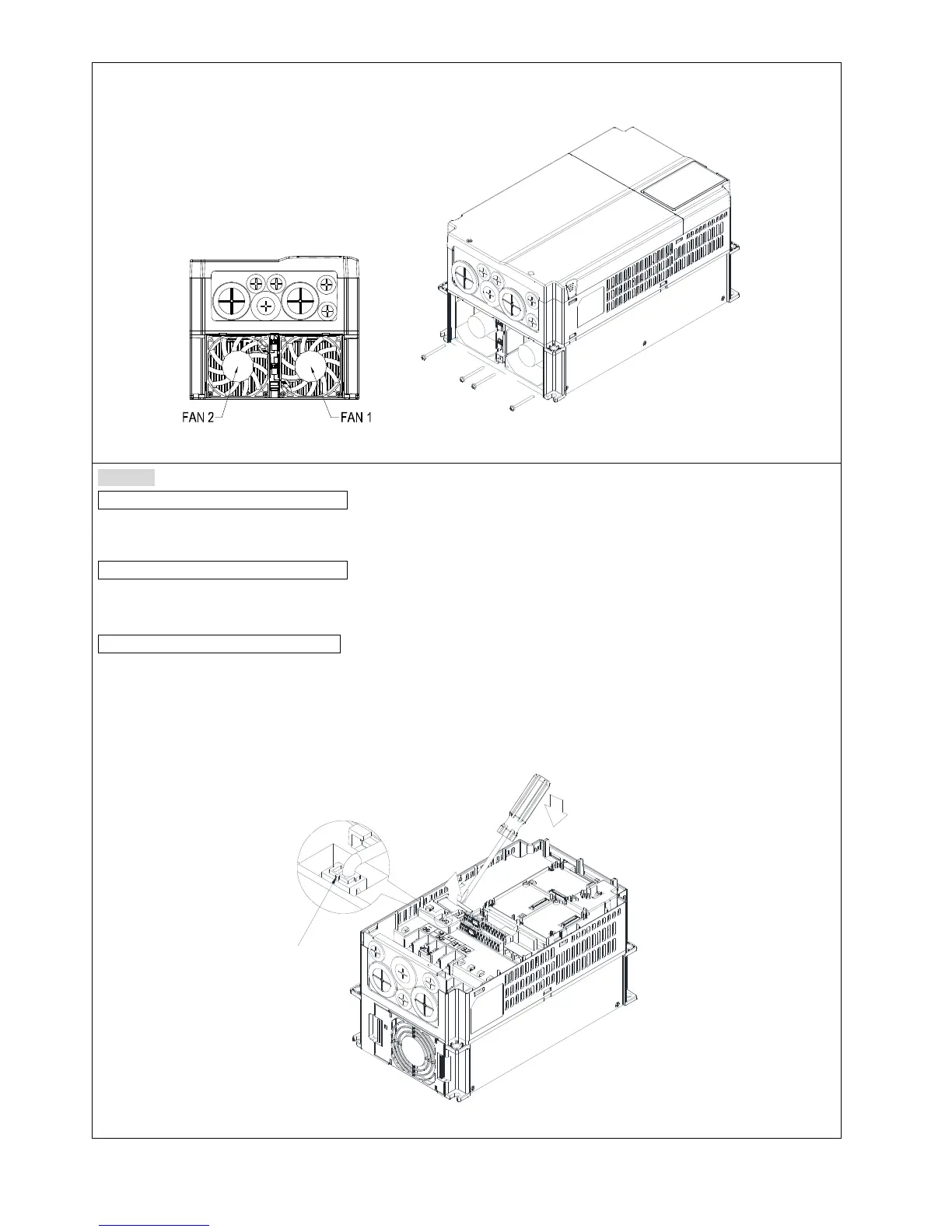

2. (As shown in Figure 2), remove the power connector, loosen the screw and remove the fan kit.
When installing the fan kit, have the label on the fan kit facing inside of the motor drive.
Screw’s torque force: 10~12 kg-cm / [8.7~10.4 lb-in.] / [1.0~1.2 Nm]
Figure 2
Frame C
Model “MKC-CFKB1” Capacitor Fan
Applicable model
VFD150C23A; VFD185C23A; VFD220C23A
Model “MKC-CFKB2” Capacitor Fan
Applicable model
VFD185C43A/43E; VFD220C43A/43E; VFD300C43A/43E
Model “MKC-CFKB3” Capacitor Fan
Applicable model
VFD185C63B-21; VFD220C63B-21; VFD300C63B-21; VFD370C63B-21
Disconnect fan power and pull out the fan by using flathead screwdriver. (As shown in the larger picture)
Figure 1
Disconnect fan power and pull out the
fan by flathead screwdriver.
Pay attention to direction of the
latch during the installation.

Delta C2000 Series Specifications

General

Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Overload Capacity	150% of rated current for 60 seconds
Communication	DeviceNet
Protection	Overvoltage, Undervoltage, Overcurrent, Overload, Overheat
Humidity	5% to 95% (non-condensing)
Cooling	Forced air cooling
Control Mode	V/F Control, Sensorless Vector Control
