Delta C2000 Series User Manual

Chapter 7 Optional AccessoriesC2000
7-103
Frame H
Applicable model
VFD4000C63B-00; VFD4000C63B-21
Fan model “MKC-HFKM1” Heat Sink Fan

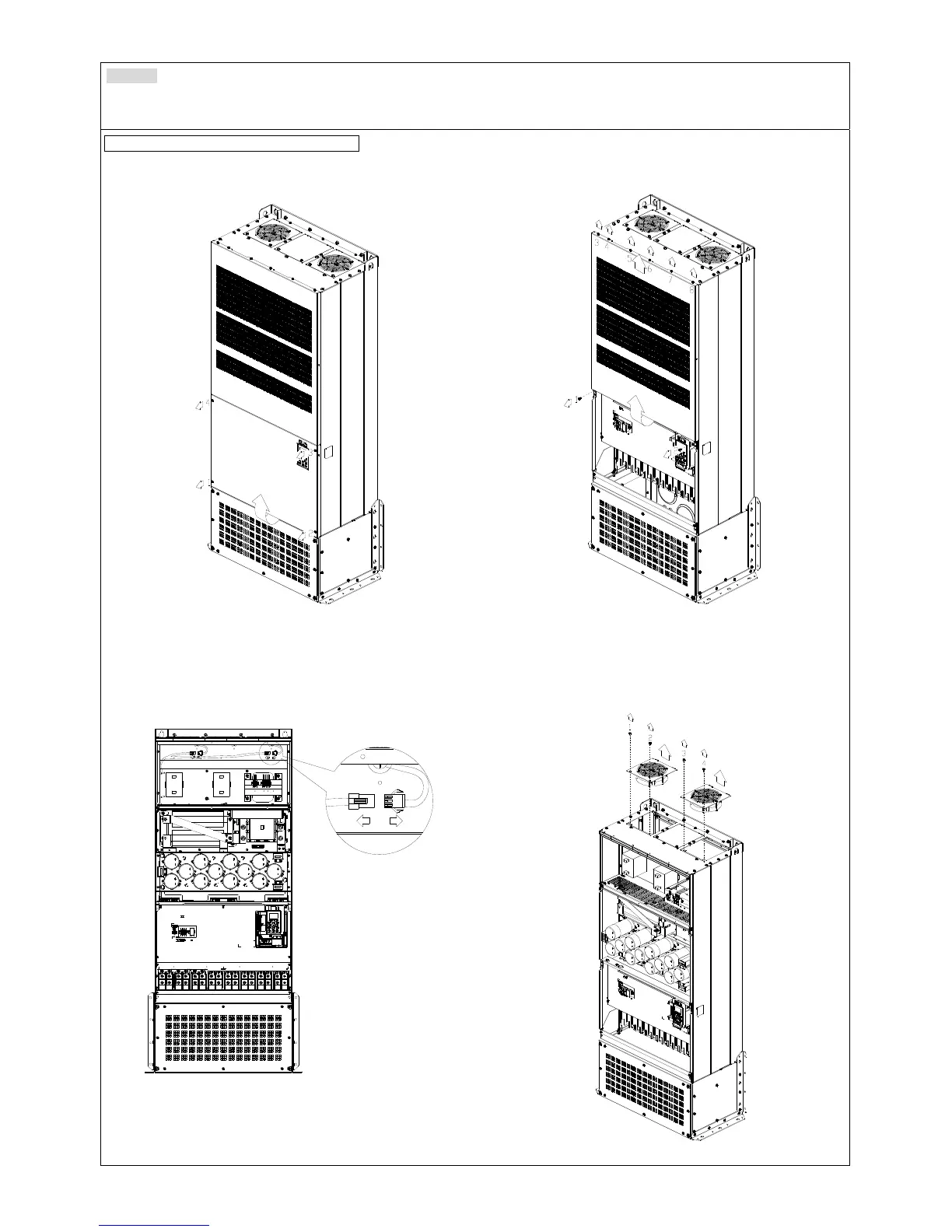

1. Loosen the screw 1~4 and remove the top cover (figure 1)
Screw torque: 14~16 kg-cm / [12.2~13.9 Ib-in.] /
[1.4~1.6 Nm]


Figure 1
2. Loosen the screw 1~8 and remove the top cover (figure 2).
Screw torque: 24~26kg-cm / [20.8~22.6 Ib-in.] /
[2.4~2.5 Nm]


Figure 2
3. Disconnect the fan connector (figure 3).


Figure 3
4. Loosen screws 1~4 (as shown below) and remove the fan.
Make sure the fan is disconnected when removing. Screw
torque: 24~26kg-cm / [20.8~22.6 Ib-in.] / [2.4~2.5 Nm]
(figure 4)


Figure 4

Delta C2000 Series Specifications

General

Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Overload Capacity	150% of rated current for 60 seconds
Communication	DeviceNet
Protection	Overvoltage, Undervoltage, Overcurrent, Overload, Overheat
Humidity	5% to 95% (non-condensing)
Cooling	Forced air cooling
Control Mode	V/F Control, Sensorless Vector Control
