Frame H
Applicable model
VFD2800C43A/43E; VFD3150C43A/43E; VFD3550C43A/43E; VD4500C43A/43E; VFD2800C43E-1; VFD3150C43E-1;
VFD3550C43E-1; VFD4500C43E-1
Fan model “MKC-HFKM” Heat Sink Fan

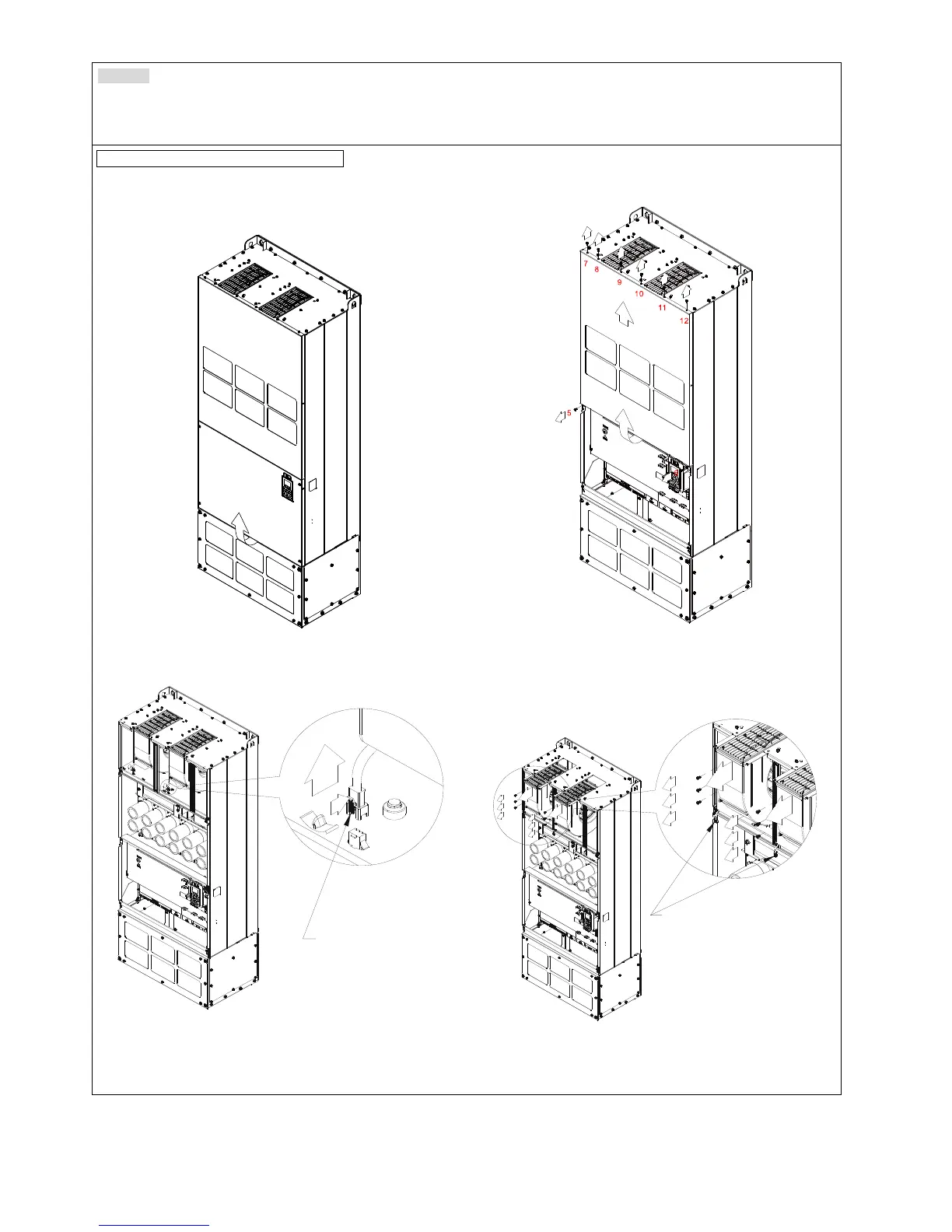

1. Loosen the screw 1~4 and remove the top cover (figure 1)
Screw torque: 14~16 kg-cm / [12.2~13.9 Ib-in.] /
[1.4~1.6 Nm]
1
2
4
3
Figure 1
2. Loosen the screw 5~12 and remove the top cover (figure
2). Screw torque: 24~26kg-cm / [20.8~22.6 Ib-in.] /
[2.4~2.5 Nm]
Figure 2
3. Press the latch to disconnect fan power (figure 3).
Figure 3
4. Loosen the screw 13~18 and remove the fan. Screw
torque: 24~26kg-cm / [20.8~22.6 Ib-in.] / [2.4~2.5 Nm]
(figure 4)
15
14
18
13
17
16
18
17
16
15
14
13
Figure 4
Pay attention to
direction of the latch
during the installation
Make sure the power is
properly disconnected
before removal.
