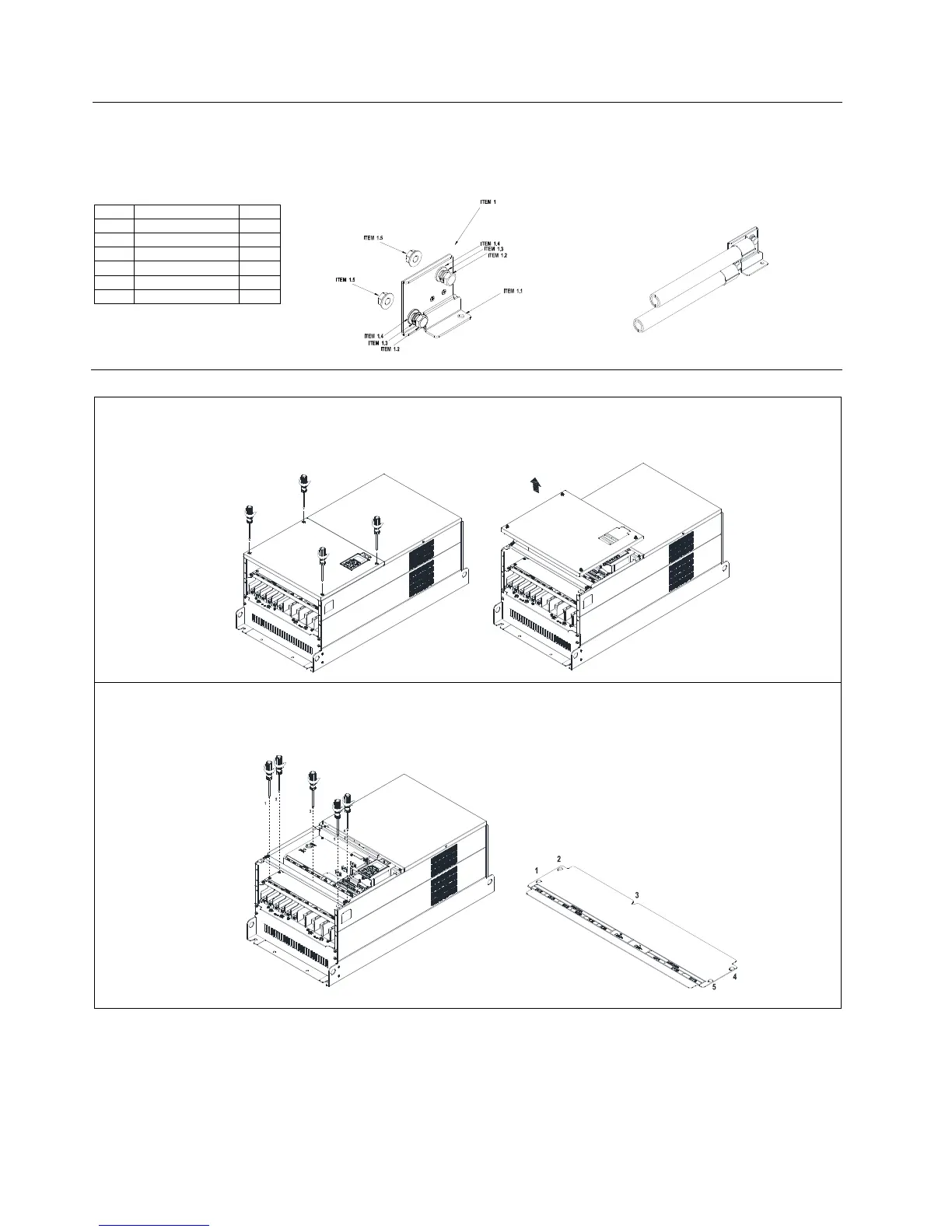

Chapter 7 Optional AccessoriesC2000
7-120
7-11 Power Terminal Kit
『MKC-PTCG』 (Applicable for Frame G models-VFDXXXCXXA)
Applicable model
VFD1850C43A; VFD2200C43A
(The MKC-PTCG is optional for the above models, after installation, the 12 plus will be 6 plus.)
Accessories
Item Description Q’ty
1 Copper Assy. 3
1.1 Copper 3
1.2 Screw M12*25L 6
1.3 Spring 6
1.4 Washer 6
1.5 Nuts 6
Diagram of power terminal connection
M12 Torque: 408 kg-cm / [354.1 lb-in] / [39.98 Nm]
『MKC-PTCG』Installation
1. Loosen the 4 screws on the cover, as shown in the following figure. Screw Torque: 12~15 kg-cm / [10.4~13
lb-in] / [1.2~1.5 Nm]
2. Remove the 5 screws from the FR4 board, as shown in the following figure. (The FR4 board is not needed
after the installation of the power terminal kit). Screw Torque: 12~15 kg-cm / [10.4~13 lb-in] / [1.2~1.5 Nm]
FR4 Board
To Next Page
