Chapter 8 Option CardsC2000
8-40
LED Status Indication
ERROR Red
Flashed
Basic configuration error (On / Off 200ms)
Status switching error
(On 200ms / Off 1000ms)
Times out (On 200ms twice / Off 1000ms)
Off No error
IN LINK Green
On Network connection in normal status
Flashes Network in operation
Off Network not connected
OUT LINK Green
On Network connection in normal status
Flashes Network in operation
Off Network not connected

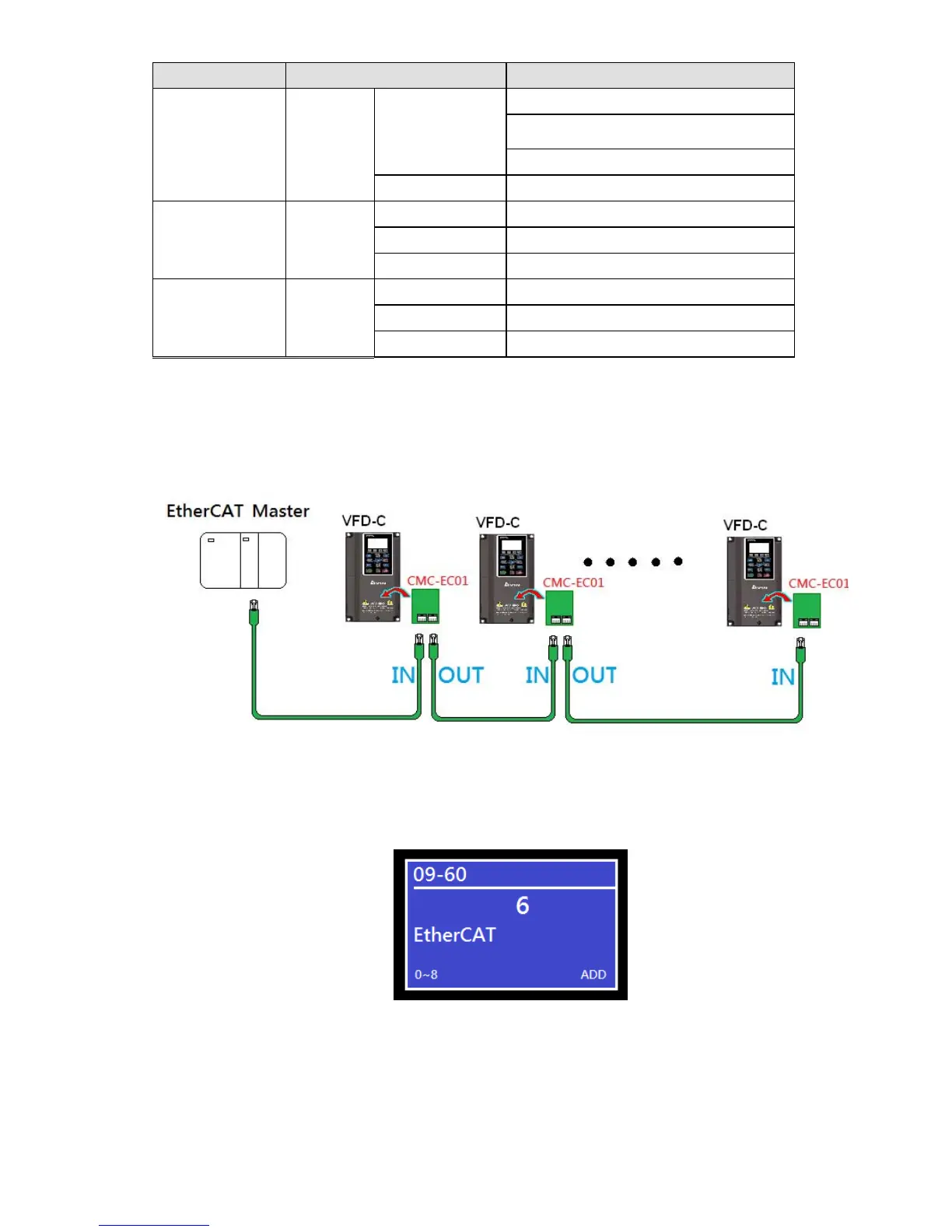

8-15-7 Network Connection
Because the packet delivery of EtherCAT has directional characteristics, the connection must be
correct. The designed delivery direction of CMC-EC01 is left for IN / right for ON, the correct wiring
is as below shown:
When the hardware is installed and power on, check for the display. The current set value of
Pr.09-60 will be 6, and shows “EtherCAT” on the display. If the above information does not show
on the display, please check the version of VFD-C2000 (V2.02 and above) and the connection of
the card.
