Delta C2000 Series User Manual

Chapter 8 Option CardsC2000
8-42

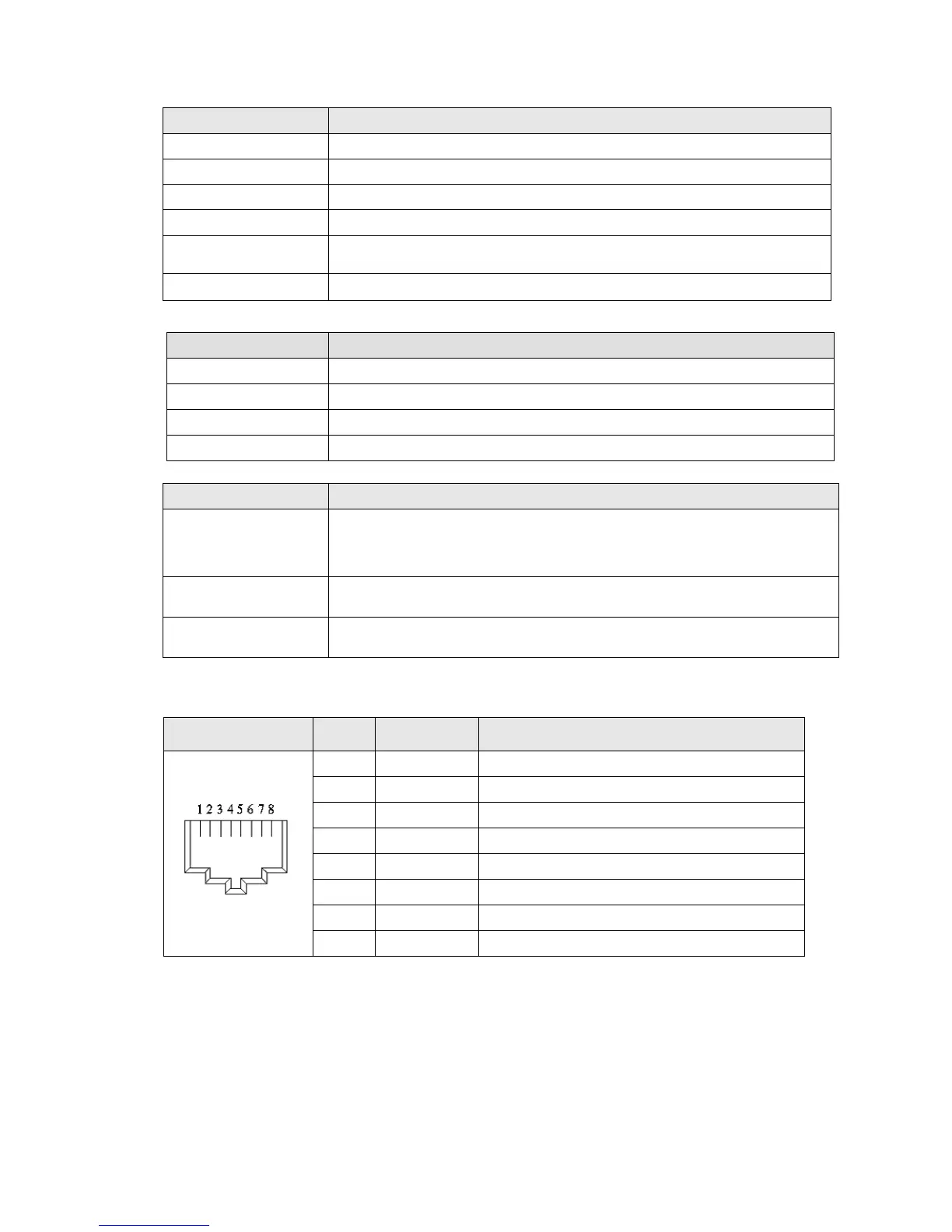

8-16-3 Specifications
Network interface
Item Specifications
Interface
RJ45
Number of ports
2 ports
Transmission cable
IEEE 802.3
Transmission rate
Category 5e shielding 100 M
Communication
protocol
10/100 Mbps auto-negotiate
Interface
PROFINET
Electrical specification
Environmental conditions
Item Specifications
Noise immunity
ESD (IEC 61800-5-1, IEC 6100-4-2)
EFT (IEC 61800-5-1, IEC 6100-4-4)
Surge Teat (IEC 61800-5-1, IEC 6100-4-5)
Conducted Susceptibility Test (IEC 61800-5-1, IEC 6100-4-6)
Operation and
storage
-10–50°C (temperature), 90% (humidity)
Vibration & shock
resistance
International Standard: IEC 61800-5-1, IEC 60068-2-6 / IEC
61800-5-1, IEC 60068-2-27
8-16-4 Definition of PINs in RJ45 port
RJ45 PIN Signal Definition
1 Tx+
Positive pole for data transmission
2 Tx-
Negative pole for data transmission
3 Rx+
Positive pole for receiving data
4 -- N/C
5 -- N/C
6 Rx-
Negative pole for receiving data
7 -- N/C
8 -- N/C
Item Specifications
Power supply voltage 5 V
DC
Power consumption 0.8 W
Insulation voltage 500 V
DC
Weight (g) 27 (g)
