Chapter 2 InstallationC2000
2-3

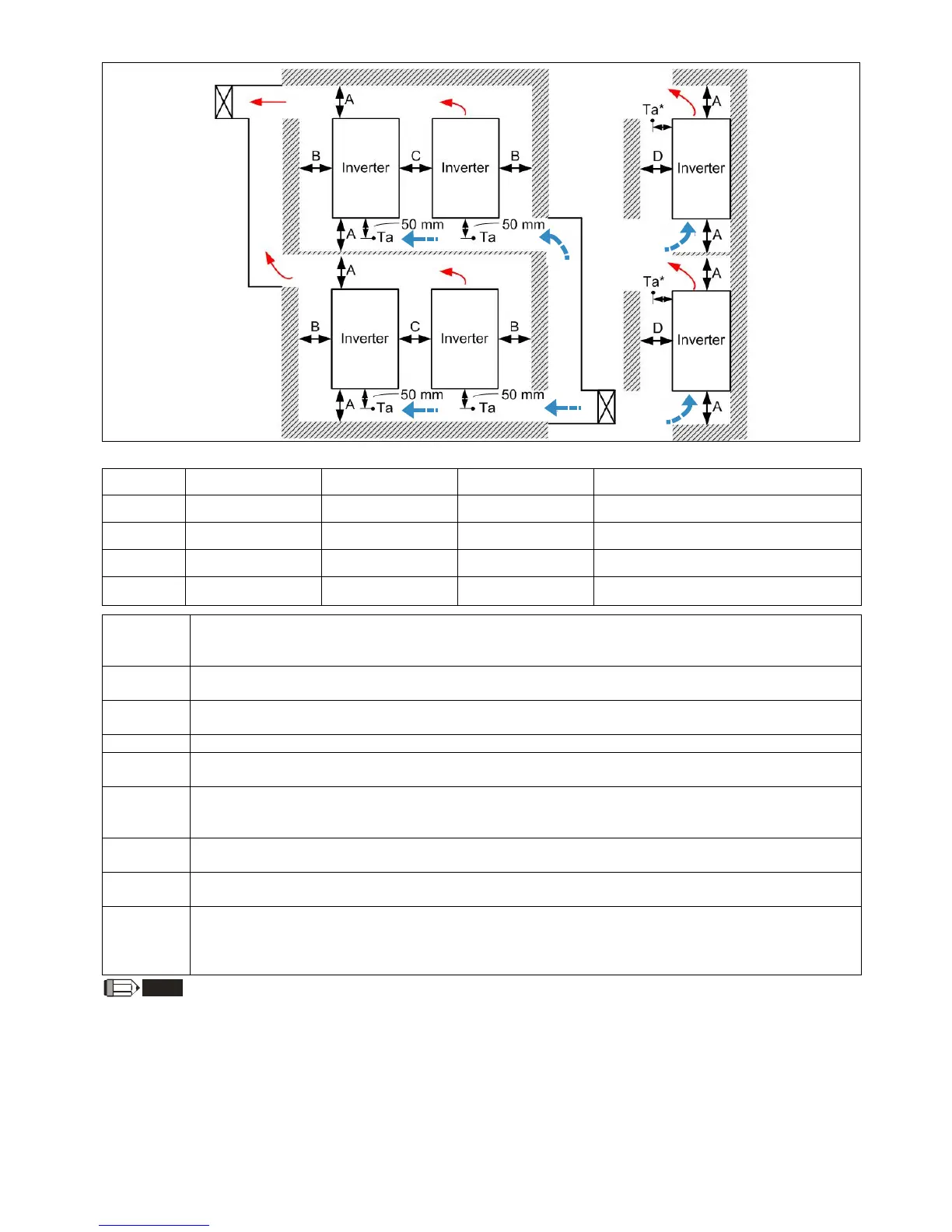

Frame A [mm] B [mm] C [mm] D [mm]
A–C 60 30 10 0
D0–F 100 50 - 0
G 200 100 - 0
H 350 0 0
200 (100, Ta=Ta*=50℃)
Frame A
VFD007C23A; VFD007C43A/E; VFD015C23A; VFD015C43A/E; VFD022C23A;
VFD022C43A/E; VFD037C23A; VFD037C43A/E; VFD040C43A/E; VFD055C43A/E; VFD015C53A-21;
VFD022C53A-21; VFD037C53A-21
Frame B
VFD055C23A; VFD75C23A; VFD075C43A/E; VFD110C23A; VFD110C43A/E;
VFD150C43A/E; VFD055C53A-21; VFD075C53A-21; VFD110C53A-21; VFD150C53A-21
Frame C
VFD150C23A; VFD185C23A; VFD185C43A/E; VFD220C23A; VFD220C43A/E;
VFD300C43A/E; VFD185C63B-21; VFD220C63B-21; VFD300C63B-21; VFD370C63B-21
Frame D0 VFD370C43S; VFD450C43S; VFD370C43U; VFD450C43U
Frame D
VFD300C23A/E; VFD370C23A/E; VFD550C43A/E; VFD750C43A/E; VFD450C63B-00;
VFD550C63B-00; VFD450C63B-21; VFD550C63B-21
Frame E
VFD450C23A/E; VFD550C23A/E; VFD750C23A/E; VFD900C43A/E; VFD1100C43A/E;
VFD750C63B-00; VFD900C63B-00; VFD1100C63B-00; VFD1320C63B-00; VFD750C63B-21;
VFD900C63B-21; VFD1100C63B-21; VFD1320C63B-21
Frame F
VFD900C23A/E; VFD1320C43A/E; VFD1600C43A/E; VFD1600C63B-00; VFD2000C63B-00;
VFD1600C63B-21; VFD2000C63B-21
Frame G
VFD1850C43A; VFD2200C43A; VFD1850C43E; VFD2200C43E; VFD2500C63B-00;
VFD3150C63B-00; VFD2500C63B-21; VFD3150C63B-21
Frame H
VFD2800C43A; VFD3150C43A; VFD3550C43A; VFD4500C43A; VFD2800C43E-1; VFD3150C43E-1;
VFD3550C43E-1; VFD4500C43E-1; VFD2800C43E; VFD3150C43E; VFD3550C43E; VFD4500C43E;
VFD4000C63B-00; VFD4500C63B-00; VFD5600C63B-00; VFD6300C63B-00; VFD4000C63B-21;
VFD4500C63B-21; VFD5600C63B-21; VFD6300C63B-21
NOTE
1. The minimum mounting clearances stated in the table above applies to AC motor drives frame A to D. A drive fails
to follow the minimum mounting clearances may cause the fan to malfunction and heat dissipation problem.
