Delta C2000 Series User Manual

Chapter 2 InstallationC2000
2-4
NOTE

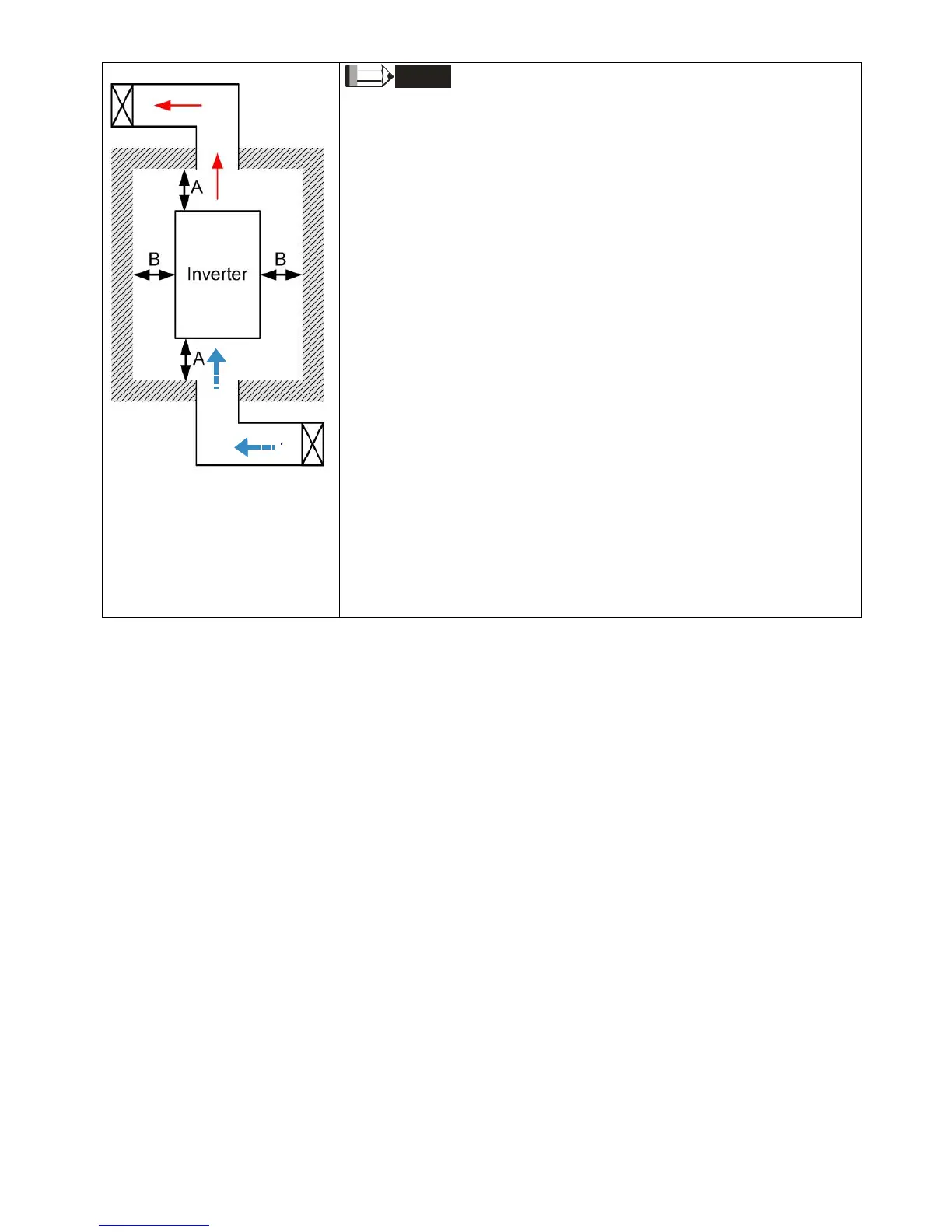

※ The mounting clearances stated in the figure is for installing the
drive in an open area. To install the drive in a confined space (such
as cabinet or electric box), please follow the following three rules:
(1) Keep the minimum mounting clearances. (2) Install a ventilation
equipment or an air conditioner to keep surrounding temperature
lower than operation temperature. (3) Refer to parameter setting
and set up Pr. 00-16, Pr.00-17, and Pr. 06-55.
※ The following table shows the heat dissipation and the required air
volume when installing a single drive in a confined space. When
installing multiple drives, the required air volume shall be multiplied
by the number of the drives.
※ Refer to the chart (Air flow rate for cooling) for ventilation
equipment design and selection.
※ Refer to the chart (Power dissipation) for air conditioner design and
selection.
※ Different control mode will affect the derating. See Pr. 06-55 for
more information.
※ Ambient temperature derating curve shows the derating status in
different temperature in relation to different protection level.
※ If UL Type 1 models need side by side installation, please remove
top cover of FrameA–C, and please do not install conduit box of
Frame D and above.
※ Suitable for Installation in a Compartment Handling Conditioned Air
(Plenum).

Delta C2000 Series Specifications

General

Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Overload Capacity	150% of rated current for 60 seconds
Communication	DeviceNet
Protection	Overvoltage, Undervoltage, Overcurrent, Overload, Overheat
Humidity	5% to 95% (non-condensing)
Cooling	Forced air cooling
Control Mode	V/F Control, Sensorless Vector Control
