Chapter 12 Description of Parameter SettingsC2000
12.1-00-7
00-08
00-07

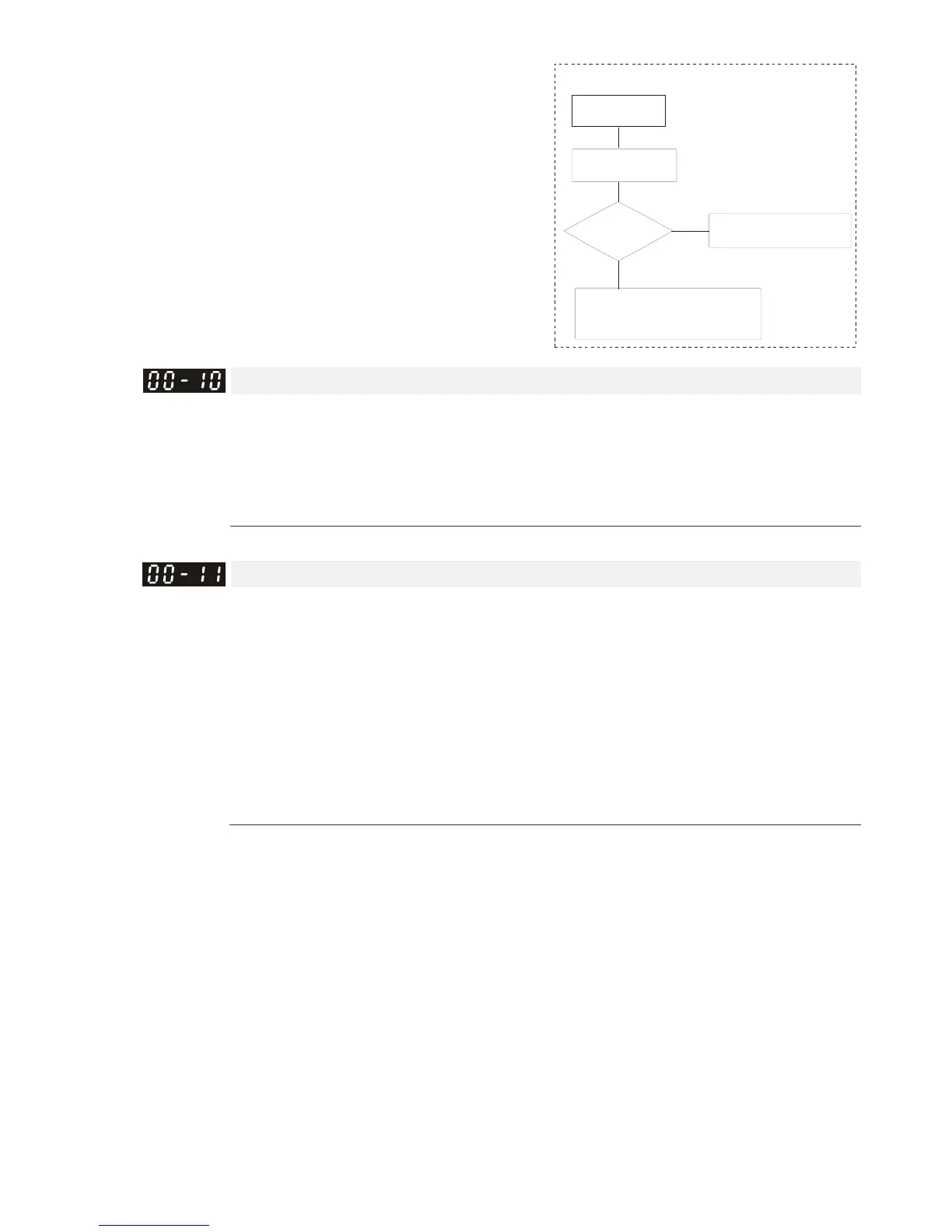

Decode Flow Chart
Password Set
Password Input
Pr.00-08=0
Yes
No
Shut down th drive
and re-apply power
Re-apply power.
(The password is still valid)
Control Mode
Default: 0
Settings 0: Speed mode
1: Point-to-Point position control mode
2: Torque mode
3: Homing mode
Determines the control mode of the AC motor drive.
Speed Control Mode
Default: 0
Settings 0: IMVF (IM V/F control)
1: IMVFPG (IM V/F control+ Encoder)
2: IM/PM SVC (IM/PM space vector control)
3: IMFOCPG (IM FOC + Encoder)
4: PMFOCPG (PM FOC + Encoder)
5: IMFOC Sensorless (IM FOC sensorless)
6: PM Sensorless (PM FOC sensorless)
7: IPM Sensorless (Interior PM FOC sensorless)
Determines the control method of the AC motor drive:
0: IM V/F control, you can set the proportion of V/F as required and control multiple motors
simultaneously.
1: IM V/F control + Encoder, you can use optional PG card with encoder for the closed-loop
speed control.
2: IM/PM space vector control, get the optimal control by auto-tuning the motor parameters.
3: IM FOC + encoder, not only can increase torque, but also can increase the accuracy of the
speed control (1:1000).
4: PM FOC + Encoder, not only can increase torque, but also can increase the accuracy of
the speed control (1:1000).
5: IM FOC sensorless, IM field oriented sensorless vector control
6: PM FOC sensorless, PM field oriented sensorless vector control
7: Interior PM FOC sensorless, Interior PM field oriented sensorless vector control
