Delta C2000 Series User Manual

Chapter 12 Description of Parameter SettingsC2000
12.1-00-8
 There are more detailed explanation of motor adjustment procedure in section 12-2

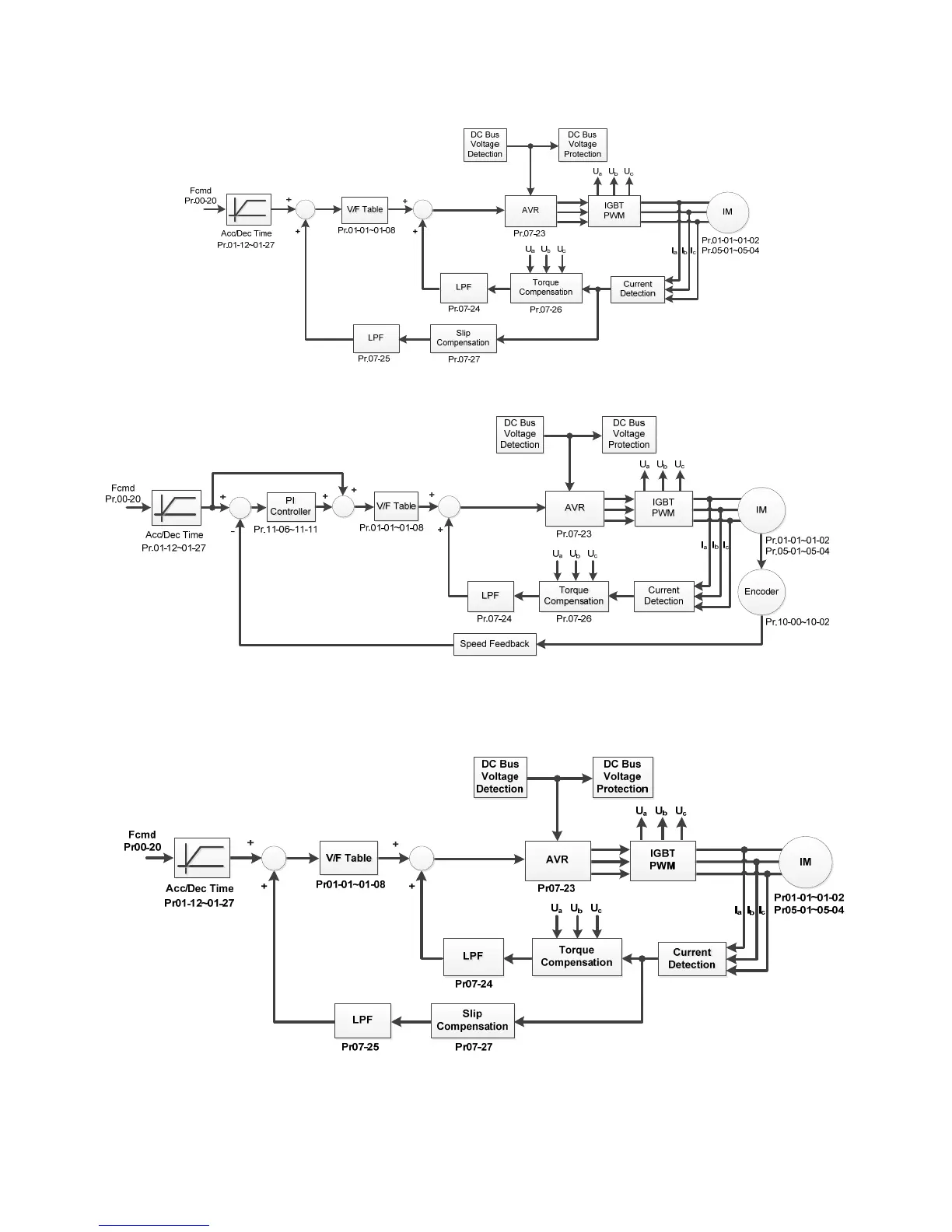

 When Pr. 00-10=0, and you set Pr. 00-11 to 0, the V/F control diagram is as follows.
 When Pr. 00-10=0, and you set Pr. 00-11 to 1, the V/F control + encoder diagram is as follows.
 When Pr. 00-10=0, and you set Pr. 00-11 to 2, the space vector control diagram is as follows:
IM Space Vector Control (IMSVC):

Delta C2000 Series Specifications

General

Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Overload Capacity	150% of rated current for 60 seconds
Communication	DeviceNet
Protection	Overvoltage, Undervoltage, Overcurrent, Overload, Overheat
Humidity	5% to 95% (non-condensing)
Cooling	Forced air cooling
Control Mode	V/F Control, Sensorless Vector Control
