Delta C2000 Series User Manual

Chapter 12 Description of Parameter SettingsC2000
12.1-00-13
230V Series [Heavy Load]
1–15HP
[0.75–11kW]
2–15kHz 2kHz 4–15kHz 4kHz 4–10kHz 4kHz 4–14kHz 4kHz
20–50HP
[15–37kW]
2–10kHz 2kHz 4–10kHz 4kHz 4–10kHz 4kHz 4–10kHz 4kHz
60–125HP
[45–90kW]
2–9kHz 2kHz 4–9kHz 4kHz 4–9kHz 4kHz 4–9kHz 4kHz
460V Series [Normal Load]
Power/ Control
mode
VF, VFPG, SVC,
IMFOCPG, IMTQCPG
PMFOCPG,
PMTQCPG
PMFOC, IPMFOC IMFOC, IMTQC
Settings Default Settings Default Settings Default Settings Default
1–15HP
[0.75–11kW]
2
–15kHz
8kHz
4–15kHz
8kHz
4–10kHz
8kHz
4–14kHz
8kHz
20–50HP
[15–37kW]
2
–10kHz
6kHz
4–10kHz
6kHz
4–10kHz
6kHz
4–10kHz
6kHz
60–125HP
[45–90kW]
2
–9kHz
4kHz
4–9kHz
4kHz
4–9kHz
4kHz
4–9kHz
4kHz
460V Series [Heavy Load]
1–15HP
[0.75–11kW]
2–15kHz 2kHz 4–15kHz 4kHz 4–10kHz 4kHz 4–14kHz 4kHz
20–50HP
[15–37kW]
2–10kHz 2kHz 4–10kHz 4kHz 4–10kHz 4kHz 4–10kHz 4kHz
60–125HP
[45–90kW]
2–9kHz 2kHz 4–9kHz 4kHz 4–9kHz 4kHz 4–9kHz 4kHz
575V Series [Light/ Normal/ Heavy Load] 690V Series [Light/ Normal/ Heavy Load]
Power/ Control
mode
VF, VFPG, SVC
Settings Default Settings Default
1–15HP
[0.75–11kW]
2–15kHz 6kHz - -
20–600HP
[15–450kW]
- - 2–9kHz 4kHz
850HP
[630kW]
- - 2–9kHz 3kHz

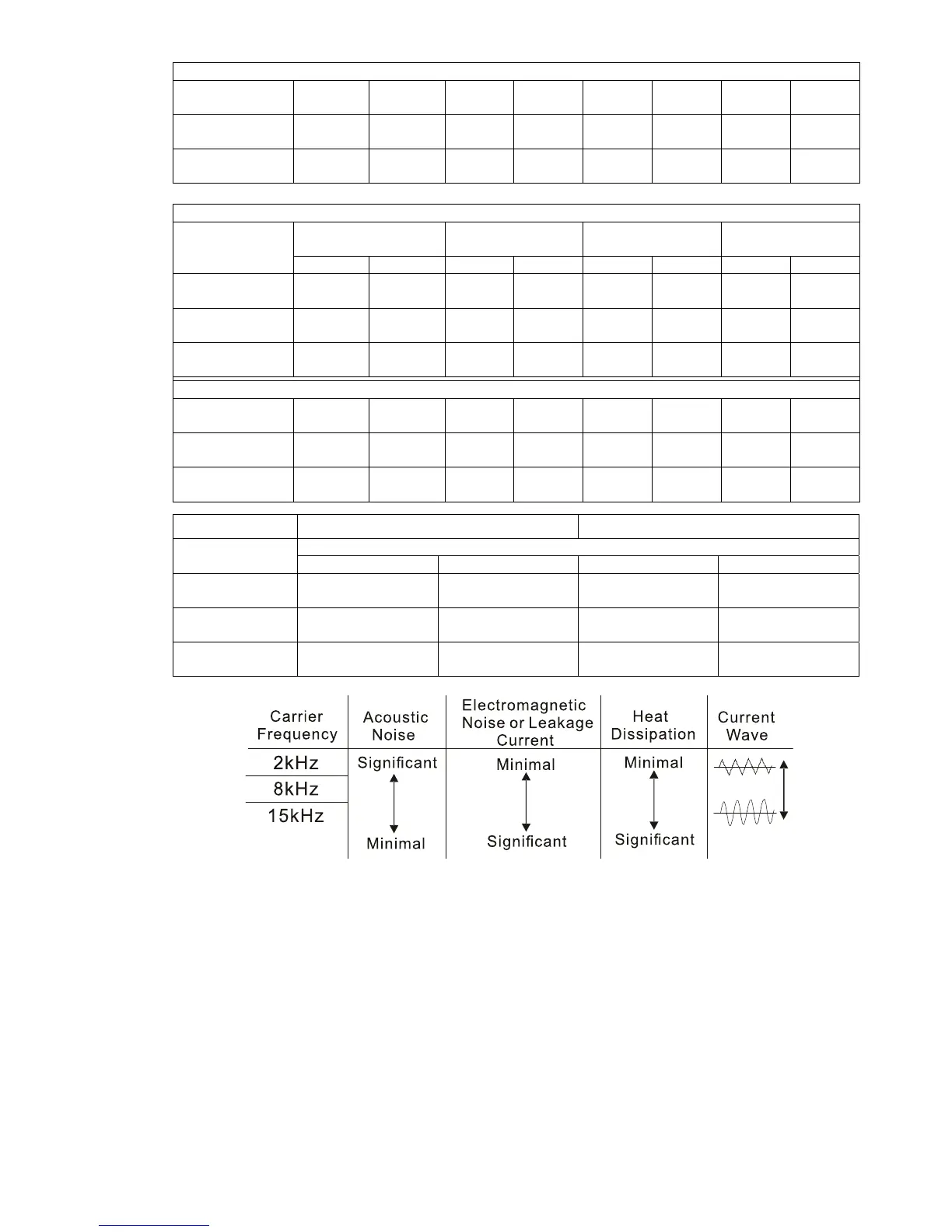

 From the table, you see that the PWM carrier frequency has significant influences on the
electromagnetic noise, the AC motor drive heat dissipation, and the motor acoustic noise.
Therefore, if the surrounding noise is greater than the motor noise, lower the carrier frequency is
good to reduce the temperature rise. Although it is quiet operation in the higher carrier frequency,
the entire wiring and interference resistance should be considerate.
 When the carrier frequency is higher than the factory setting, it needs to protect by decreasing the
carrier frequency. See Pr. 06-55 for the related setting and details.

Delta C2000 Series Specifications

General

Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Overload Capacity	150% of rated current for 60 seconds
Communication	DeviceNet
Protection	Overvoltage, Undervoltage, Overcurrent, Overload, Overheat
Humidity	5% to 95% (non-condensing)
Cooling	Forced air cooling
Control Mode	V/F Control, Sensorless Vector Control
