Chapter 12 Description of Parameter SettingsC2000
12.1-02-26

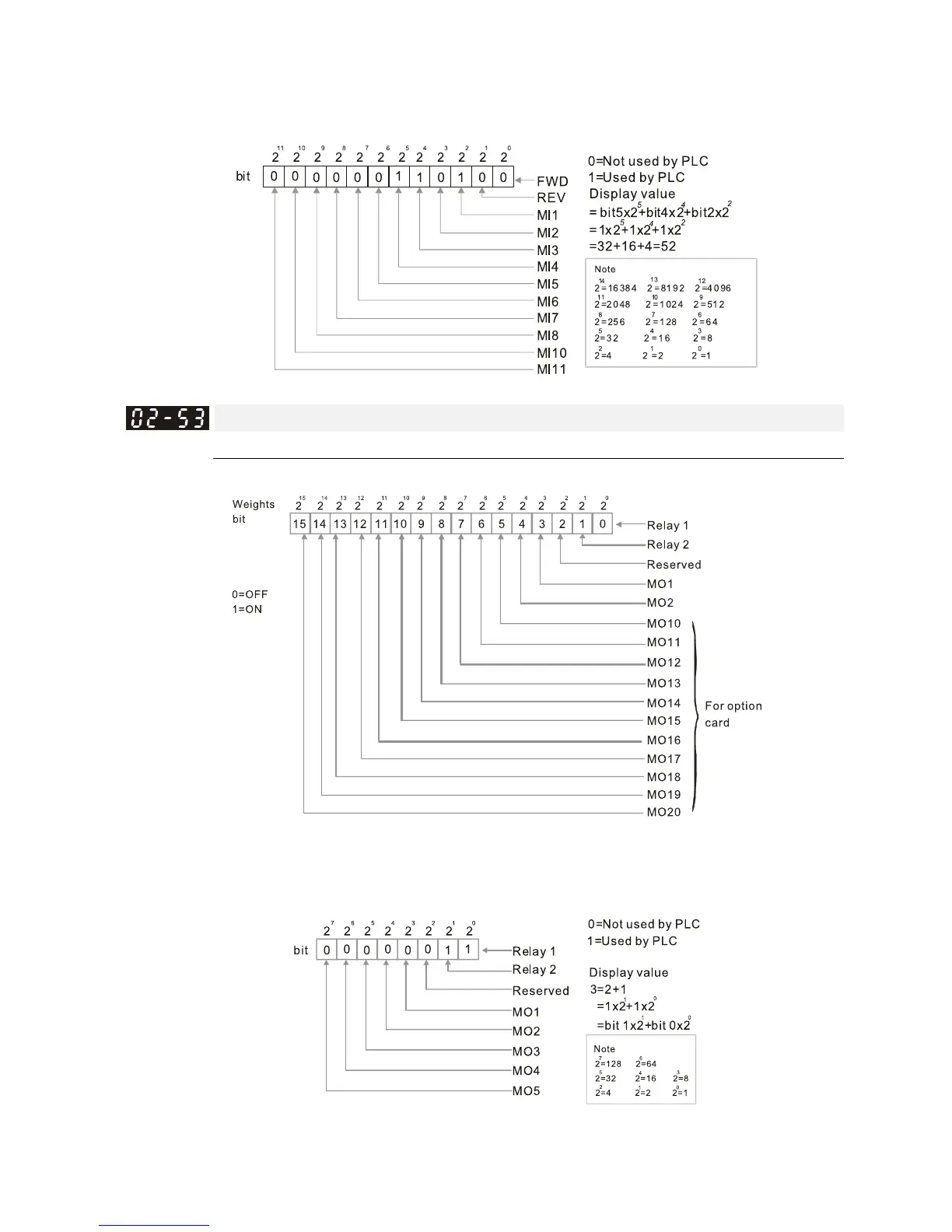

For Example:
When Pr.02-52 displays 0034h (hex) (that is, the value is 52 (decimal) and 110100 (binary)), it
means that MI1, MI3 and MI4 are used by PLC.
Display the External Multi-function Output Terminals Used by PLC
Default: Read only
Pr. 02-53 shows the external multi-function output terminal that used by PLC.
For Example:
When Pr.02-53 displays 0003h (hex) (that is, the value is 3 (decimal) and 0011 (binary)), it means
that RY1 and RY2 are used by PLC.
