Delta C2000 Series User Manual

Chapter 12 Description of Parameter SettingsC2000
12.1-11-5

ASR 2 Gain
Default: 10
Settings 0–40 Hz (IM) / 0–100Hz (PM)

ASR 2 Integral Time
Default: 0.100
Settings 0.000–10.000 sec.

ASR Gain of Zero Speed
Default: 10
Settings 0–40 Hz (IM) / 0–100Hz (PM)

ASR Integral Time of Zero Speed
Default: 0.100
Settings 0.000–10.000 sec.


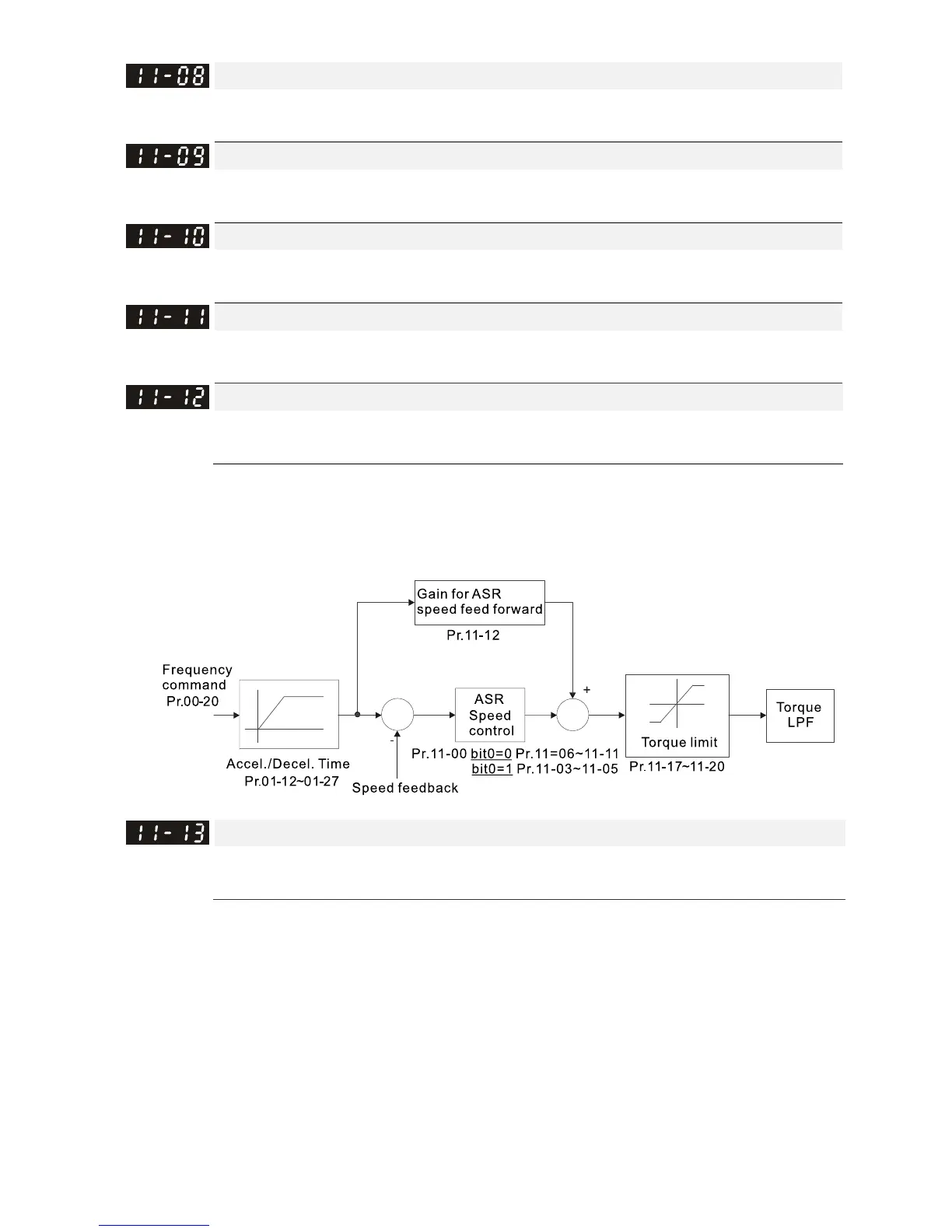

ASR Speed Feed Forward Gain
Default: 0
Settings 0–150%
 This function enables when Pr. 11-00 bit0 = 1.
 Increase the setting for Pr.11-12 to redcue the command tracking difference, and improve the
speed response. Use this function for speed tracking applications.
 Set Pr.11-01 correctly to get excellent improvement of the speed response.

PDFF Gain Value
Default: 30
Settings 0–200%
 This parameter is invalid when Pr. 05-24 = 1.
 This parameter is valid only when Pr. 11-00 bit0 = 1.
 After you finish estimating and set Pr. 11-00 bit0=1 (auto-tuning), use Pr. 11-13 to reduce
overshoot, but a shift of the curve may occur earlier. Set Pr. 11-13 = 0, when the acceleration
time fits the applicable demand, but an overshoot occurs, increase Pr. 11-13 to “the best
acceleration without overshoot”.
 Increase Pr. 11-13 to improve the overshoot of speed tracking, but an excessive value may
reduce the transient response.
 Increase Pr. 11-13 to enhance the system stiffness in high-speed steady state, and reduce the
speed transient fluctuation at suddenly loading.

Delta C2000 Series Specifications

General

Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Overload Capacity	150% of rated current for 60 seconds
Communication	DeviceNet
Protection	Overvoltage, Undervoltage, Overcurrent, Overload, Overheat
Humidity	5% to 95% (non-condensing)
Cooling	Forced air cooling
Control Mode	V/F Control, Sensorless Vector Control
