Chapter 3 UnpackingC2000
3-21

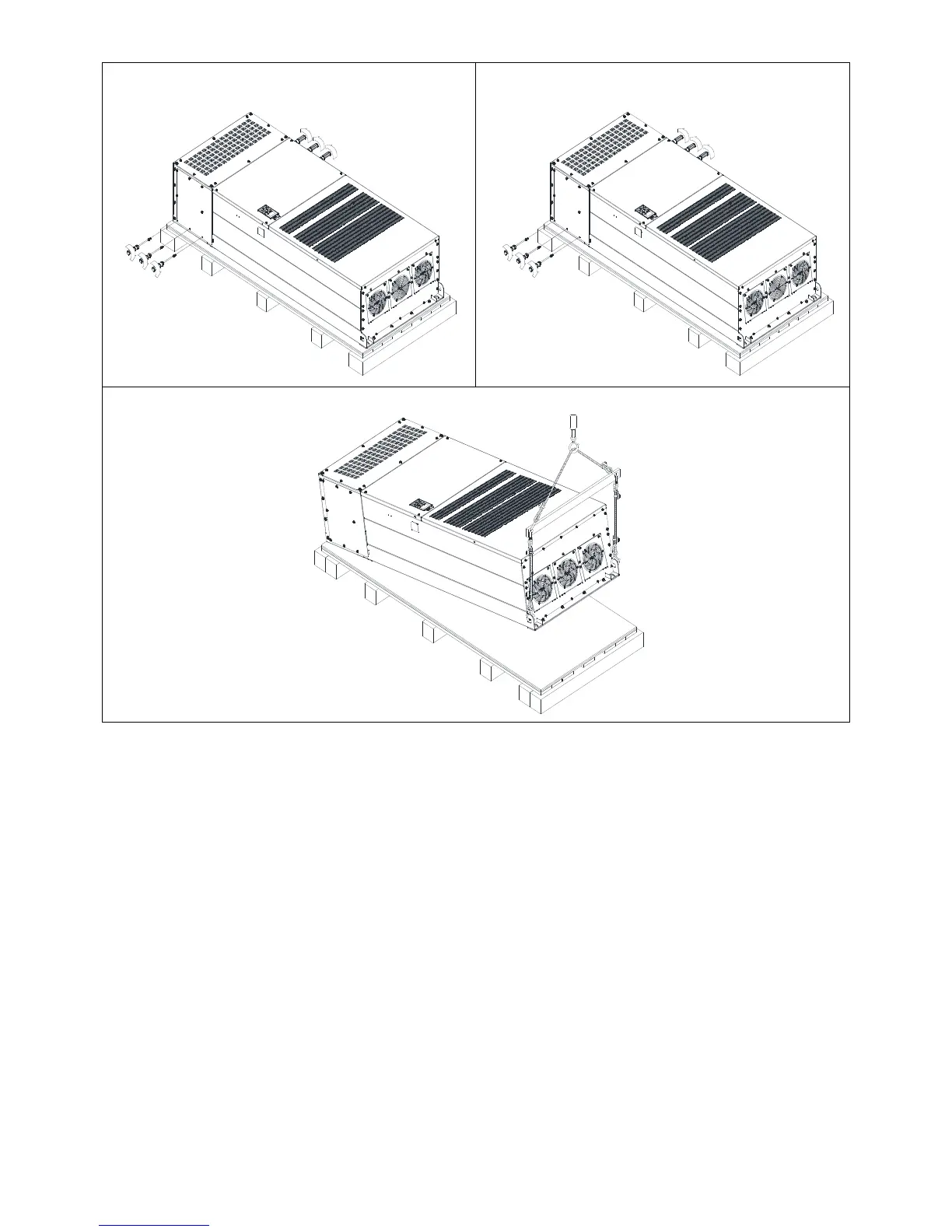

Fasten the six M6 screws back, see the figure
below.
Fasten the six M6 screws back, see the figure
below.
Lift the drive by hooking the lifting hole. It is now ready for installation.
Figure 3-69
Figure 3-71
Figure 3-72
