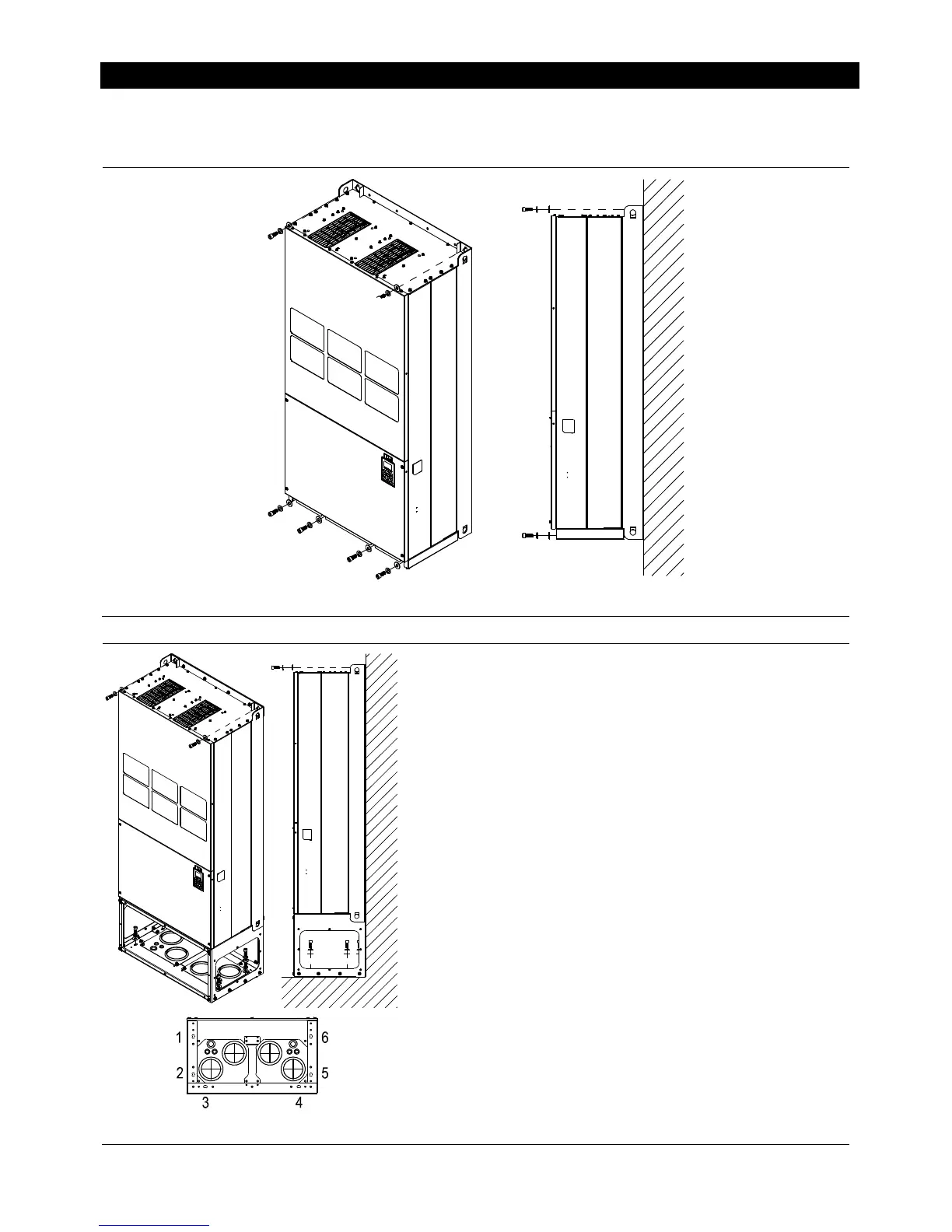

Frame H: Fix the drive
VFDXXXC43A
Screw: M12*6
Torque: 340–420 kg-cm / [295.1–364.6 lb-in.] / [33.3–41.2 Nm]
Figure 3-73
VFDXXXC43E & VFDXXXC43E-1
Fix the drive from the inside.
Screw: M12*8
Torque: 340–420 kg-cm / [295.1–364.6 lb-in.] /
[33.3–41.2 Nm]
Figure 3-74
