Chapter 3 UnpackingC2000
3-23

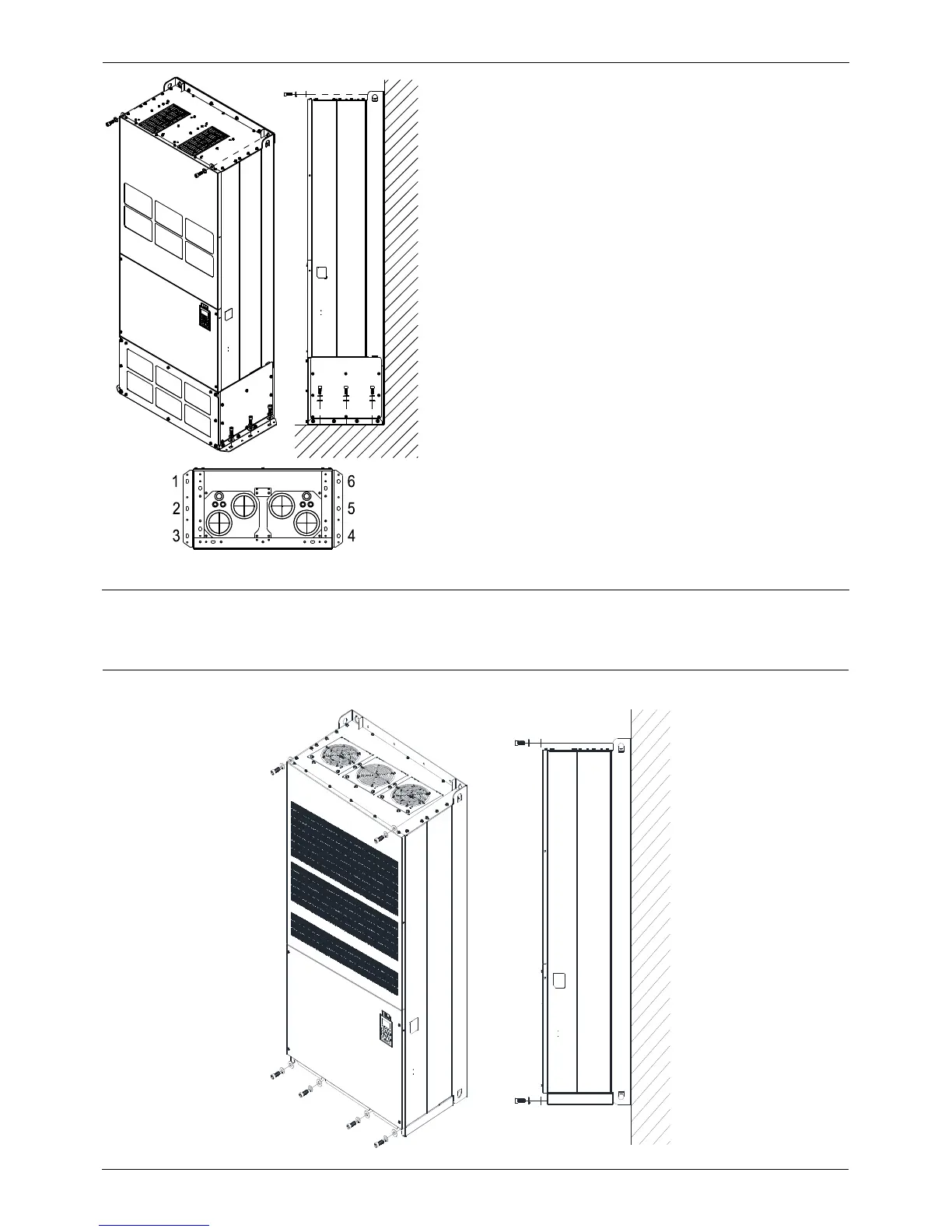

Fix the drive from the outside.
Screw: M12*8
Torque: 340–420 kg-cm / [295.1–364.6 lb-in.] /
[33.3–41.2 Nm]
VFDXXXC63B
Screw M 12*6
Torque: 340–420 kg-cm / [295.1–364.6 lb-in.] /
[33.32–41.16 Nm]
Figure 3-76
Figure 3-75
