6 Installation
Installation and Operation Manual for RPI M6A M8A M10A inverters V1.0 2016-02-03
42

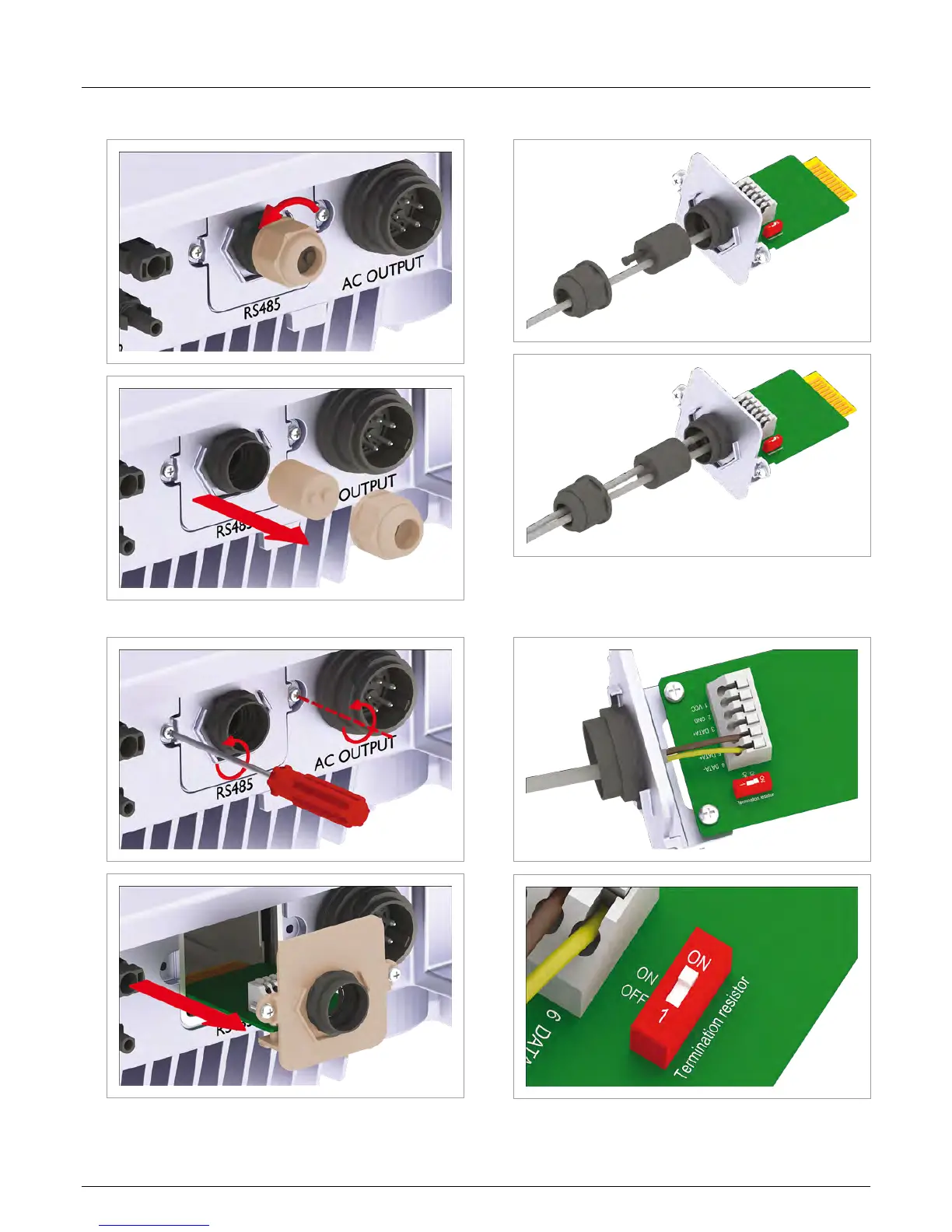

1. Unscrew the cable gland and remove cable gland and seal-
ing.
2. Unscrew and pull out the cover.
3. Pull the cable through cable gland and sealing. Do not re-
move the second grommet, unless you use a second cable.
4. On a single inverter or on the last inverter in a chain of mul-
tiple inverters, wire RS485 as follows and switch the RS485
termination resistor ON.
