6 Installation

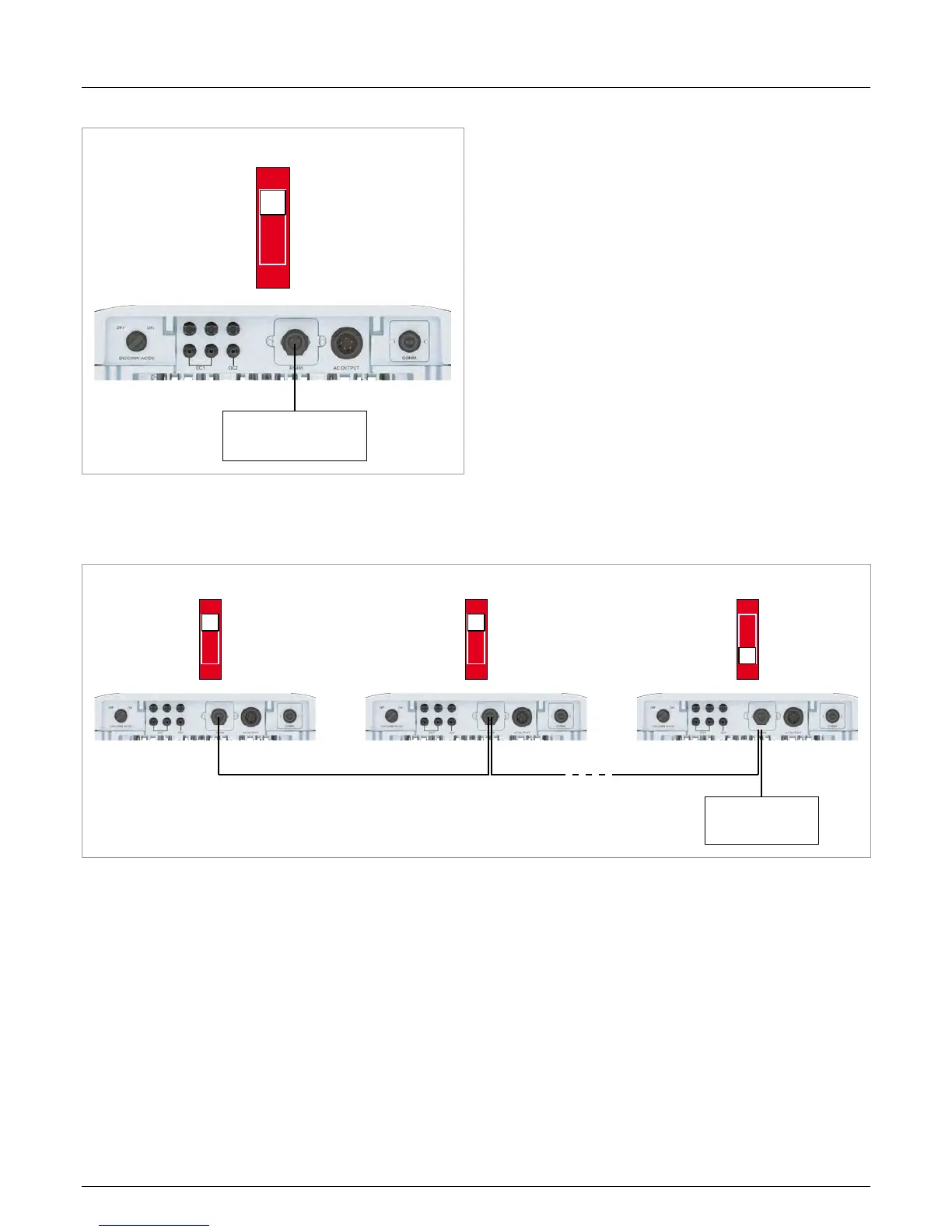

Connecting a single inverter to a datalogger
ON
1
Termination resistor = ON
Data logger
Fig. 6.27: Connecting a single inverter to a dataloggerData logg
Connecting multiple inverters to a datalogger
...
ON
1
ON
1
ON
1
Termination resistor = ON Termination resistor = OFF Termination resistor = OFF
Data logger
Fig. 6.28: Connecting multiple inverters to a datalogger
