Delta VFD-V Series User Manual

5
VFD-V Series
DELTA ELECTRONICS, INC. ALL RIGHTS RESERVED
5-19

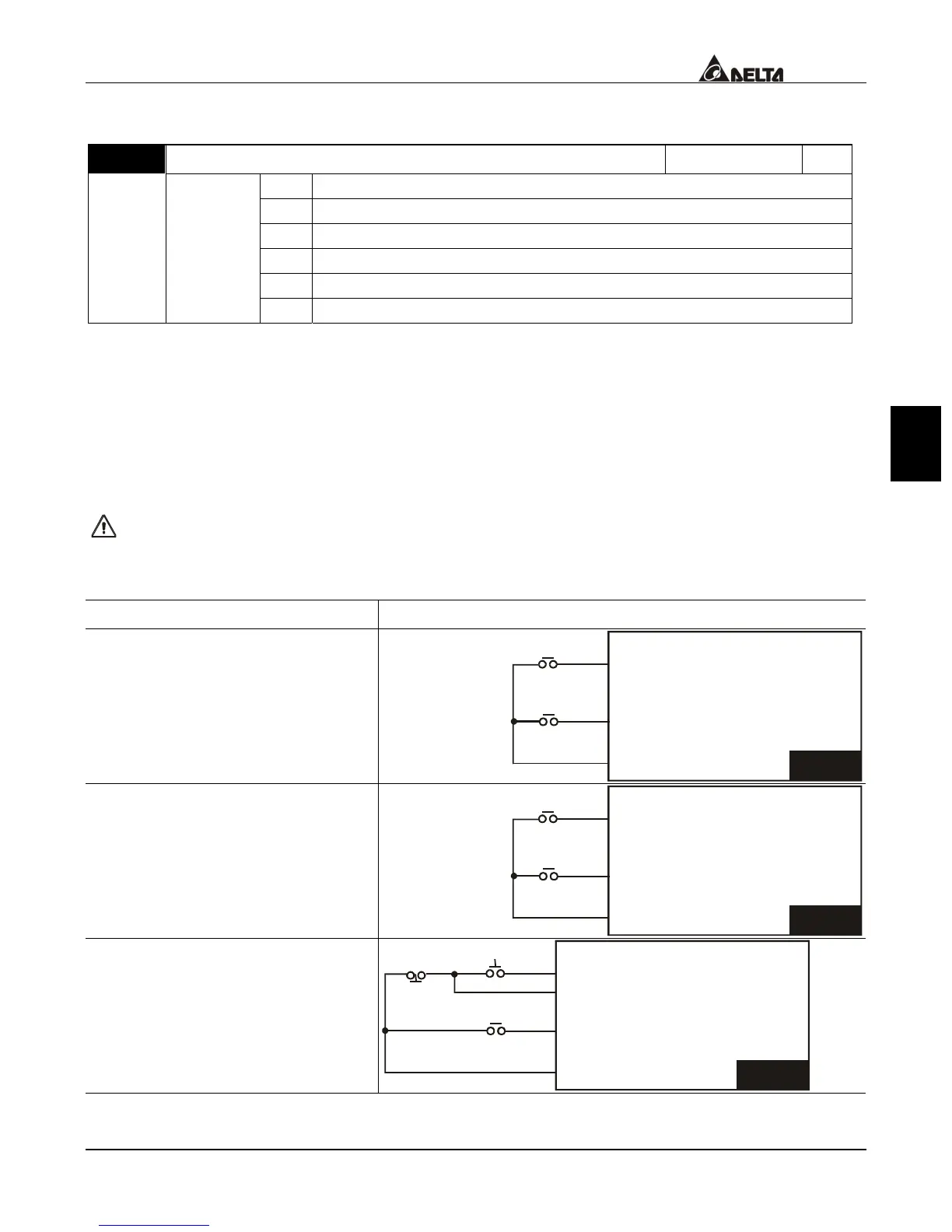

5.3 Group 2: Digital Output/Input Parameter
02-00 2-Wire/3-Wire Operation Control Factory setting 0
0
FWD/STOP, REV/STOP
Settings
1
FWD/STOP, REV/STOP (Line Start Lockout)
2
RUN/STOP, REV/FWD
3
RUN/STOP, REV/FWD (Line Start Lockout)
4
3-wire (momentary push button)
5
3-wire (momentary push button and Line Start Lockout)
 The VFD-V drive offers six types of external operation control.
 Three of
the
six methods include a “Line Start Lockout” feature. When Line
start lock out is enabled, the drive will not recognize a RUN command upon
power up. The VFD-V must see the terminal state change from low to high.
This is a safety feature for applications where applying power does not
determine a RUN command.
The Line Start Lockout feature does not guarantee the motor will never start under this
condition. It is possible the motor may be set in motion by a malfunctioning switch.
02-00 Control Circuits of the External Terminal
0, 1
2-wire operation control (1)
FWD/STOP
REV/STOP
V
FD-V
FWD:("OPEN":STOP)
("CLOSE":FWD)
REV:("OPEN": STOP)
("CLOSE": REV)
DCM
FWD/STOP
REV/STOP
2, 3
2-wire operation control (2)
RUN/STOP
REV/FWD
V
FD-V
FWD:("OPEN":STOP)
("CLOSE":RUN)
REV:("OPEN": FWD)
("CLOSE": REV)
DCM
RUN/STOP
FWD/REV
4, 5
3-wire operation control
V
FD-V
FWD "CLOSE":RUN
EF/MI1 "OPEN":STOP
REV/FWD "OPEN": FWD
"CLOSE": REV
DCM
STOP RUN
RUN/FWD
