Delta VFD-V Series - Component Explanations

VFD-V Series
DELTA ELECTRONICS, INC. ALL RIGHTS RESERVED
3-8

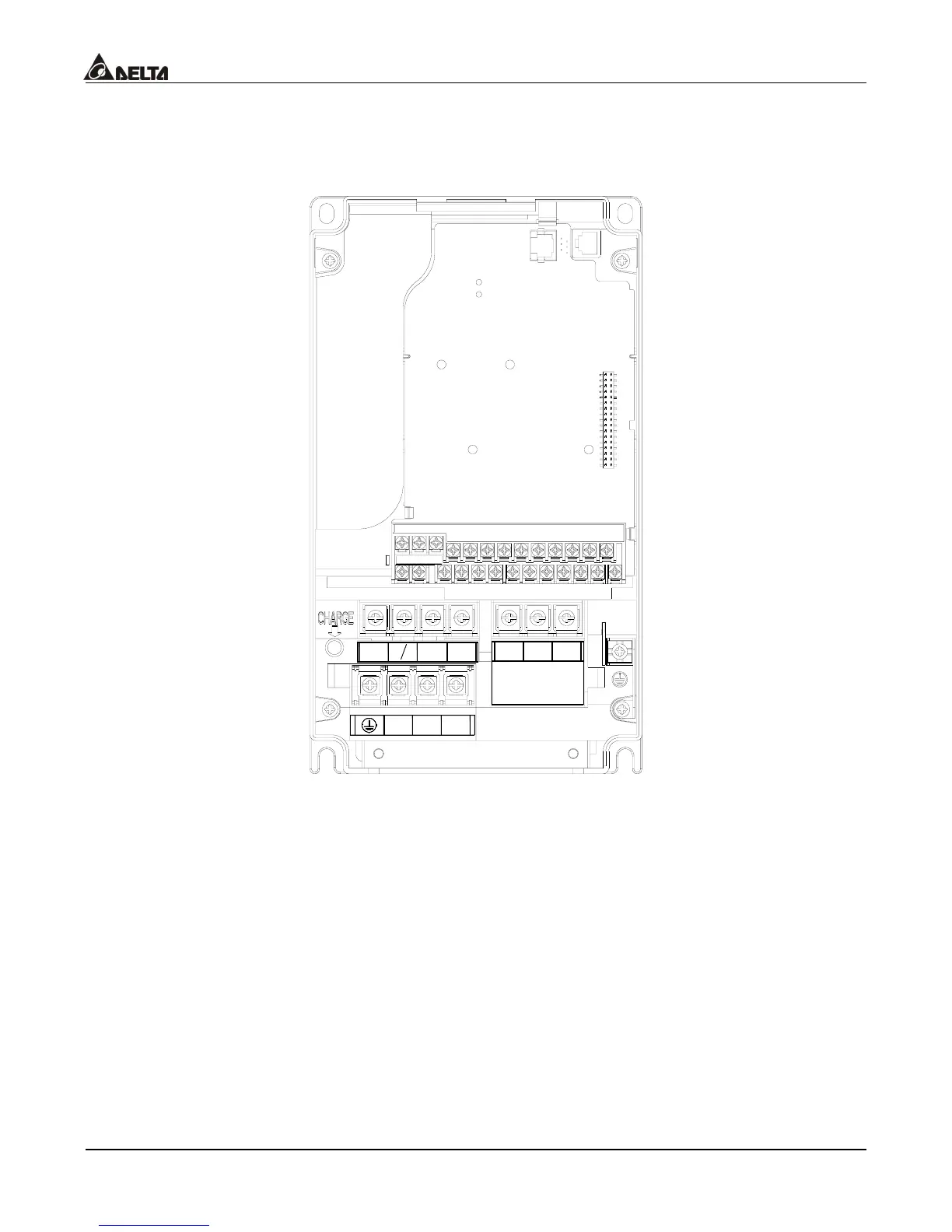

3.5 Component Explanations
1 HP to 5 HP (VFD007V23A/43A, VFD015V23A/43A, VFD022V23A/43A, VFD037V23A/43A)
+1
+2
B
1
-
B2
U/T1 V/T2 W/T3
Screw Torque :
Wire Gauge :
18Kgf-cm
18~10AWG
R/L1 S/L2 T/L3
Control Terminal
Torque: 8Kgf-cm (6.9 in-lbf)
Wire: 22-14 AWG
Power Terminal
Torque: 18 kgf-cm (15.6 in-lbf)
Wire Gauge: 18-10 AWG
Wire Type: Stranded Copper only, 75°C
