Delta VFD-V Series User Manual

VFD-V Series
DELTA ELECTRONICS, INC. ALL RIGHTS RESERVED
5-60
08-05 PID Frequency Output Command limit
a
Factory setting 100.0
Settings 0.0~100.0%
 This parameter determines the limit of the PID Command frequency. If this parameter
is set to 120%, then the maximum output frequency while in the PID operation will be
(120% x Pr.01-00) 72%.
08-06 PID Deviation Range
a
Factory setting 0.0
Settings -100.0~+100.0%
08-07 One-Time Delay
a
Factory setting 0.000
Settings 0.000~0.005 Sec

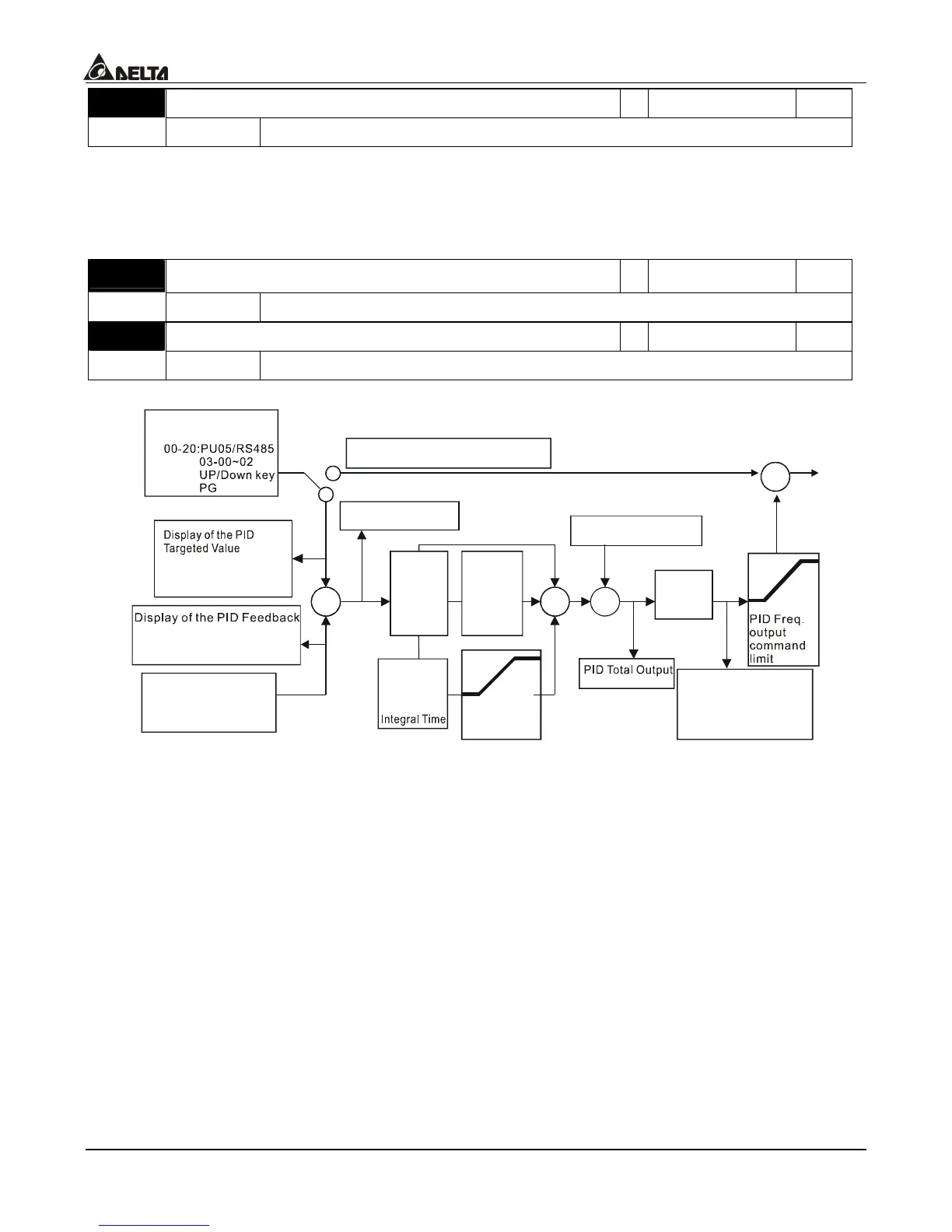

08-00=0
or 02-01~06=24(pid off)
03-13=20
P
08-01
D
08-03
I
08-02
08-04
08-06
08-07
If Hz>08-05
time over08-08
=>08-09
03-13=21
08-05
Output
+
-+
+
+
Input Selection
of the PID Feedback
1
2
PID Cancelled
PID Deviation Range
Error Range Output
One-Time Delay
Treatment of the
Feedback Signal Fault
Proportion
gain
Input Selection of the
PID Targeted Value
One-Time
Delay
00-14=18 display of the
PID feedback
Integral's
Upper
Bound Freq.
Differential
Time
00-14=17:PID
command
10-00:AVI/ACI
AUI/PG
 PI Control: controlled by the P action only, and thus, the deviation cannot be eliminated
entirely. To eliminate residual deviations, the P + I control will generally be utilized.
And when the PI control is utilized, it could eliminate the deviation incurred by the
targeted value changes and the constant external interferences. However, if the I
action is excessively powerful, it will delay the responding toward the swift variation.
The P action could be used solely on the loading system that possesses the integral
components.
