CHAPTER 1 RECEIVING AND INSPECTION
This VFD-V AC drive has gone through rigorous quality control tests at the factory before
shipment. After receiving the AC drive, please check for the following:
Receiving
 Check to make sure that the package includes an AC drive, the User Manual, dust
covers and rubber bushings.
 Inspect the unit to insure it was not damaged during shipment.
Make sure that the part number indicated on the nameplate corresponds with the part number
of your order.

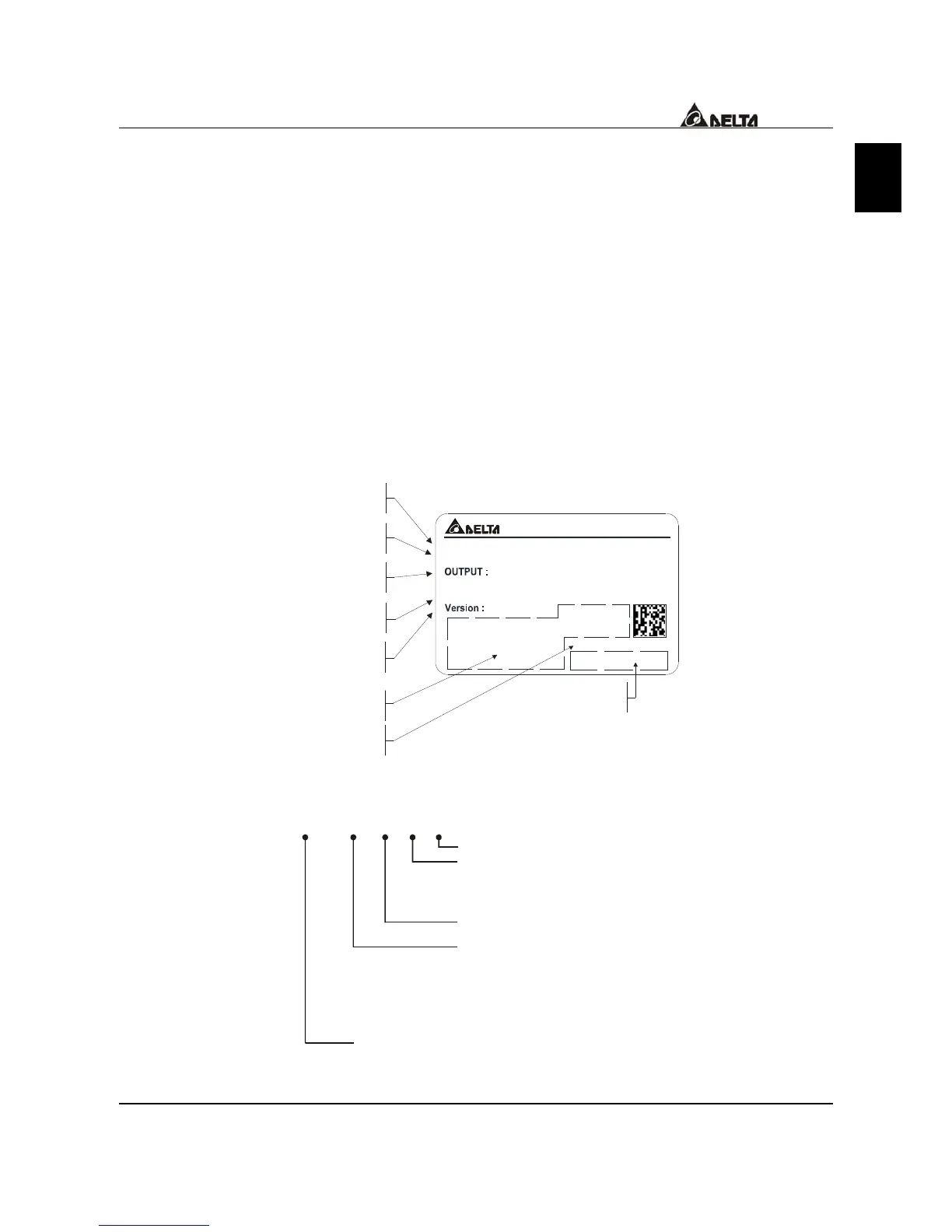

1.1 Nameplate Information → Example for 5HP/3.7kW 230V 3-Phase
037V23A0T00010123
DELTA ELECT RONICS, INC.
MODEL: VFD037V23A-2
3PH 200-240V 50/60Hz 21.2A
INPUT:
3PH 0-240V 17A 6.5KVA 5HP
0-600Hz
XX.XX
國際認證標示區 ；
國際認證標示區；
Certifications
序號；
序號；
S
e
r
ial numbe
r
機種名稱；
機種名稱；
Model name
輸入端電壓/電流範圍；
輸入 端電 壓/電 流範圍；
Input voltage/current
輸出端電壓/電流範圍；
輸出端電壓/電流範圍；
Output voltage/current
頻率範圍；
頻率範 圍；
Frequency r ange
韌體版本；
韌體版 本；
Firmware version
生產識別；
生产识别；
Product identification
FREQUENCY RANGE:
1.2 Model Explanation
VFD 037 V 23 A
Version Type
Input Voltage
2 3:2 3 0 V 3 - PH ASE
4 3:4 6 0 V 3 - PH ASE
VFD-V Series
Series Name
Applicable Motor Capacity
007:1HP(0.75kW) 015:2HP(1.5kW)
022:3HP(2.2kW) 037:5HP(3.7kW)
055:7.5HP(5.5kW) 075:10HP(7.5kW)
110:15HP(11kW) 150:20HP(15kW)
185:25HP(18.5kW) 220:30HP(22kW)
300:40HP(30kW) 370:50HP(37kW)
450:60HP(45kW) 550: 75HP(55kW)
750:100HP(75kW)
