Getting Started Connections Playback Remote ControlMulti-zone Information Troubleshooting Specifi cations
Setting items Setting contents
Monitor Out
(Continued)
If both the Monitor 1 and 2 connectors are connected and “Resolution”
(vpage 49) is set to “Auto”, the signals are output with a resolution
compatible with both TV.
With “Resolution” (vpage 49) not set to “Auto”, check whether
the TV you are using is compatible with the resolution under “HDMI
Information” – “Monitor 1” and “Monitor 2” (vpage 78).
Depending on the monitor you have connected, the display may not be
correct when you set to “Auto (Dual)”. In such a case, set to either
“Monitor 1” or “Monitor 2”.
You can also set “Monitor Out” by pressing [M.SEL].
•
•
•
•
HDMI Control
External devices can be
controlled from the AVR-
4310CI and the AVR-4310CI
can be controlled from
external devices.
Please consult the
operating instructions for
each connected device to
check the settings.
Refer to “HDMI Control
Function” (vpage 80) for
more information about the
HDMI control function.
When the “Control”
setting has been changed,
always turn off the power
to the connecting devices
afterwards and then turn
back on.
NOTE
The HDMI control function
controls operations of a
TV that is compatible with
the HDMI control function.
Make sure that the TV and
HDMI are connected when
you perform HDMI control.
•
•
•
Control
ON : Use HDMI control function
OFF : Do not use HDMI control function
When a device that is not compatible with the HDMI control function
is connected, set “Control” to “OFF”.
NOTE
When “Control” is set to “ON”, it consumes more standby power.
When not using this unit for a long period, we recommend that you
press <POWER> on the main unit to turn off the power.
“HDMI Control” does not work when the power to the equipment is off.
Either power on or set to standby.
•
•
•
•
•
Standby Source : Set the HDMI connector for HDMI signal input during
standby.
Last : Standby with last used input source during power on.
HDMI1 / HDMI2 / HDMI3 / HDMI4 / HDMI5 / HDMI6 : The standby mode
is set at the input source assigned to the respective.
This can be set when “Control“ is set to “ON“.
•
•
Control Monitor : Set the HDMI MONITOR terminal to output the HDMI
control signal.
Monitor 1 : Output from the MONITOR 1 terminal.
Monitor 2 : Output from the MONITOR 2 terminal.
This can be set when “Control“ is set to “ON“.
•
•
Power Off Control : The power of the AVR-4310CI and external device
turn off together.
ON : Interlock.
OFF : Do not interlock.
This can be set when “Control“ is set to “ON“.
•
•
Setting items Setting contents
RGB Range
Set the video range of RGB
output from the HDMI
terminal.
Normal : Output with RGB video range (16 (black) to 235 (white)).
Enhanced : Output with RGB video range (0 (black) to 255 (white)).
This setting is valid when using a TV equipped with a DVI terminal.
Vertical Stretch
Expand image signal in
vertical direction.
ON : Expand image signal in vertical direction.
OFF : Do not expand signal in vertical direction.
This setting is valid with respect to the HDMI output when using an
HDMI-compatible TV. When not using an HDMI-compatible TV, it is
valid with respect to the analog output.
Auto Lip Sync
Automatic compensation
for timing shift in audio and
video output.
ON : Compensated.
OFF : Not compensated.
HDMI Audio Out
Select HDMI audio output
device.
Amp : Playback through speakers connected to the receiver.
TV : Playback through TV connected to the receiver.
When the HDMI control function is operating, the setting of audio
playback in the connected TV takes priority (vpage 80 “HDMI
Control Function”).
Monitor Out
Make settings for HDMI
monitor output.
Auto (Dual) : The presence of a TV connected to the MONITOR 1 or
MONITOR 2 terminal is detected automatically, and that TV connection
is used.
Monitor 1 : A TV connected to the MONITOR 1 terminal is always used.
Monitor 2 : A TV connected to the MONITOR 2 terminal is always used.
Making Detailed Settings (Manual Setup)
See overleaf
Main remote control
operation buttons
:Displaying the menu
Cancel the menu
:Moves the cursor
(Up/Down/Left/Right)
:Confi rm the setting :Return to previous menu
Make settings for HDMI video/audio output.
Setting items Setting contents
Surround Speaker
(Continued)
When using the PRE OUT terminal, set to “A” or “B”.
Make the surround speaker settings when the input mode is set to “EXT.
IN” at “EXT. IN Setup” (vpage 38).
When the “Speaker Confi guration” – “Surround A” or “Surround B”
setting (vpage 35) is “Small”, and using surround speakers A and B
simultaneously, playback is with the same output as when “Surround A”
and “Surround B” are set to “Small”.
•
•
•

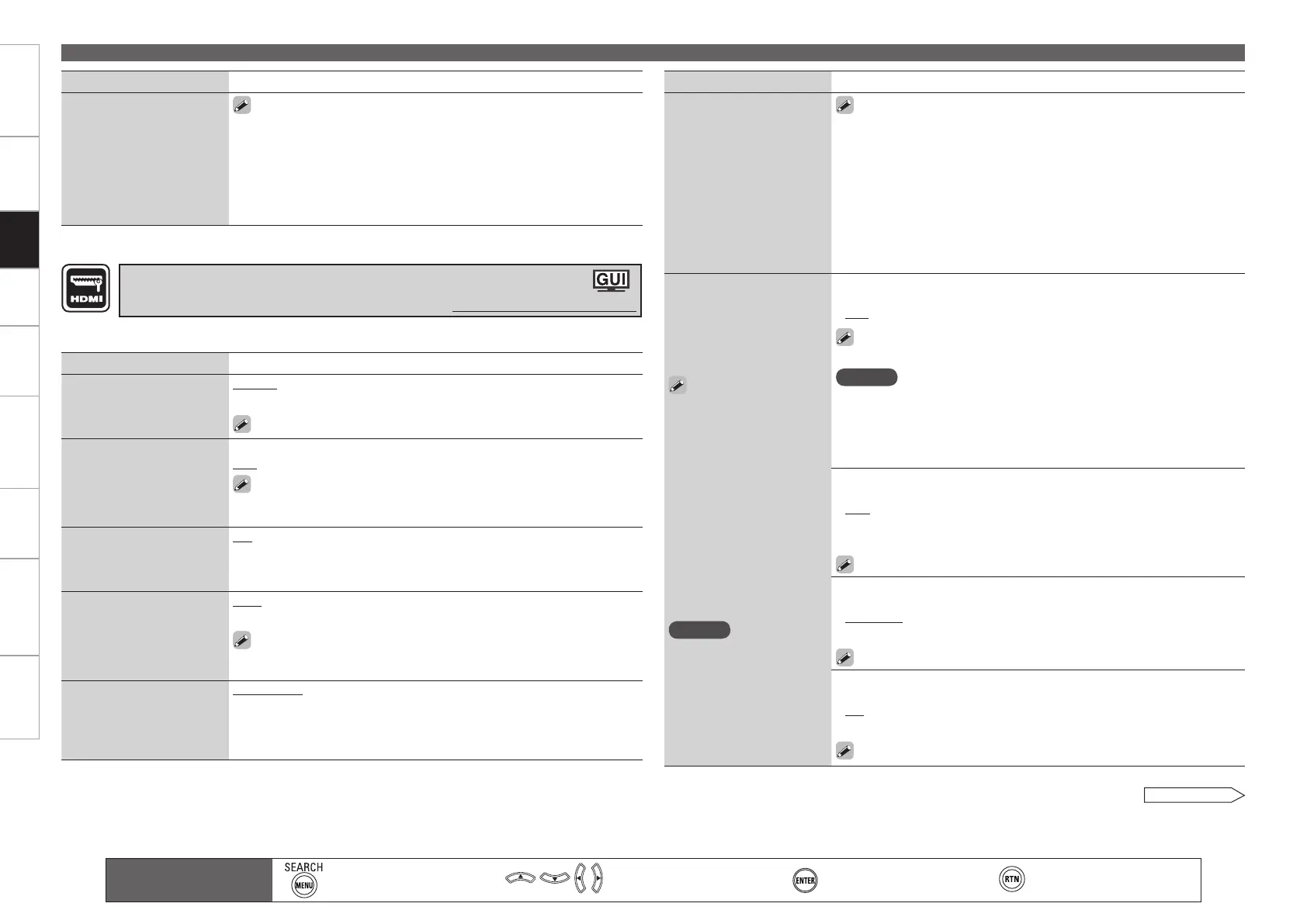

Making the HDMI Settings (HDMI Setup)
Default settings are underlined.
Setting
1.AVR4310CIEU.indd 37 2009/04/14 16:37:07
To Next Page
