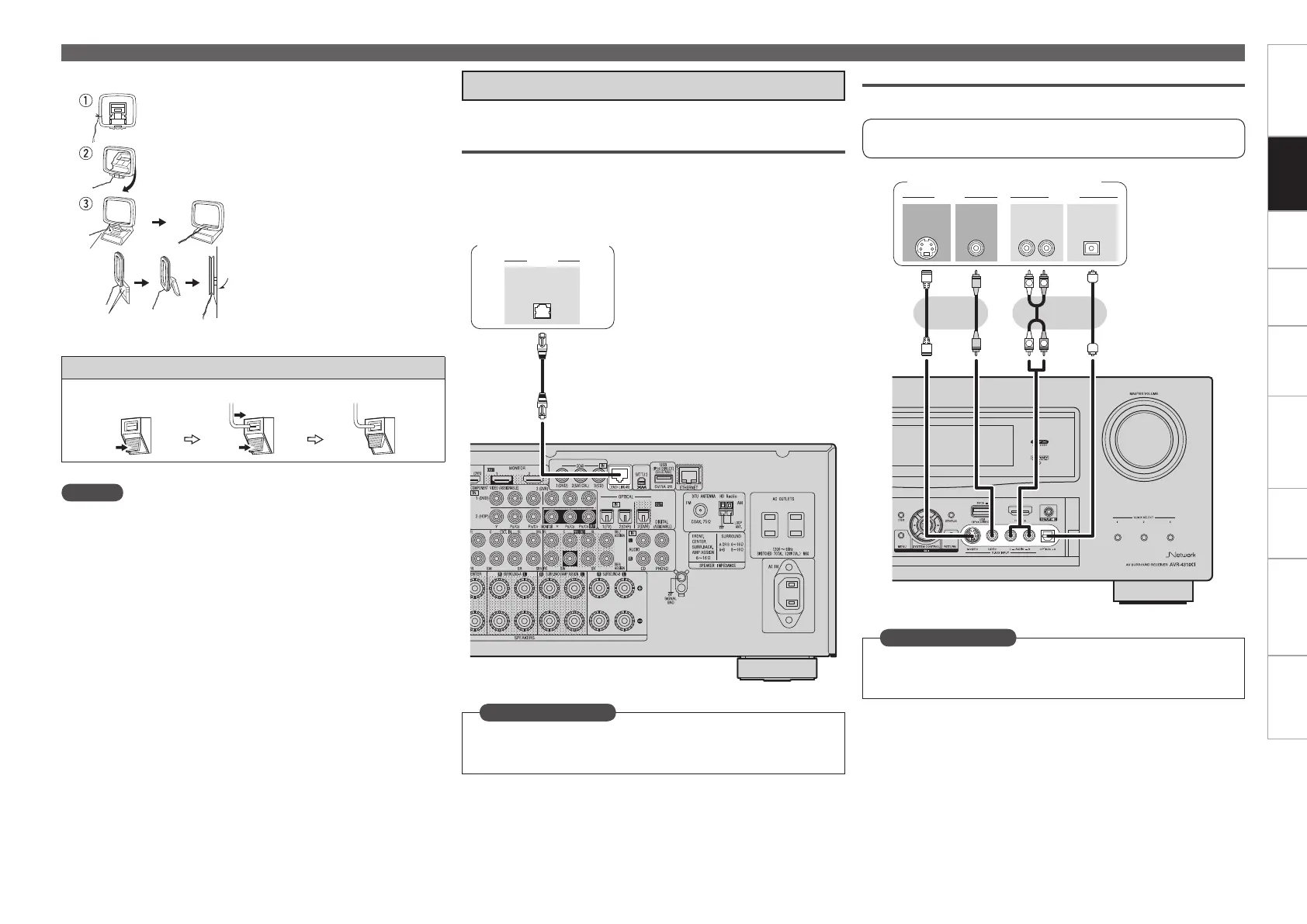

Connecting Devices
Connections to Other Devices
Components Equipped with a DENON LINK
Connector
Multi-channel playback is possible with BD, Super Audio CD, etc.
(vpage 79 “Playing a Blu-ray Disc Player Compatible with DENON
LINK 4th“, “Playing Super Audio CD“).
Blu-ray Disc player /
DVD player
Video Camera / Game Console
Select the terminal to use and connect the device.
R
L
R
L
47*%&0
065
"6%*07*%&0
7*%&0
065 065
015*$"-"6%*0
3-
065
Video camera / Game console
Set this to change the input signal to which the input source is
assigned.
“Input Assign” (vpage 46)
Set as Necessary
For instructions on HDMI connections, see “Connecting Devices
Equipped with HDMI Terminals” on page 14.
AM loop antenna assemblyn
Remove the vinyl tie and take out
the connection line.
Bend in the reverse direction.
a. With the antenna on top of any
stable surface.
Mount
b. With the antenna attached to a
wall.
Installation hole Mount
on wall, etc.
Connection of AM antennas
1. Push the lever. 2. Insert the conductor. 3. Return the lever.
NOTE
Do not connect two FM antennas simultaneously.
Even if an external AM antenna is used, do not disconnect the AM
loop antenna.
Make sure the AM loop antenna lead terminals do not touch metal
parts of the panel.
•
•
•
When connecting by use of DENON LINK, set “Digital” to
“D.LINK”.
“Input Assign” (vpage 47)
Set as Necessary
Connections
