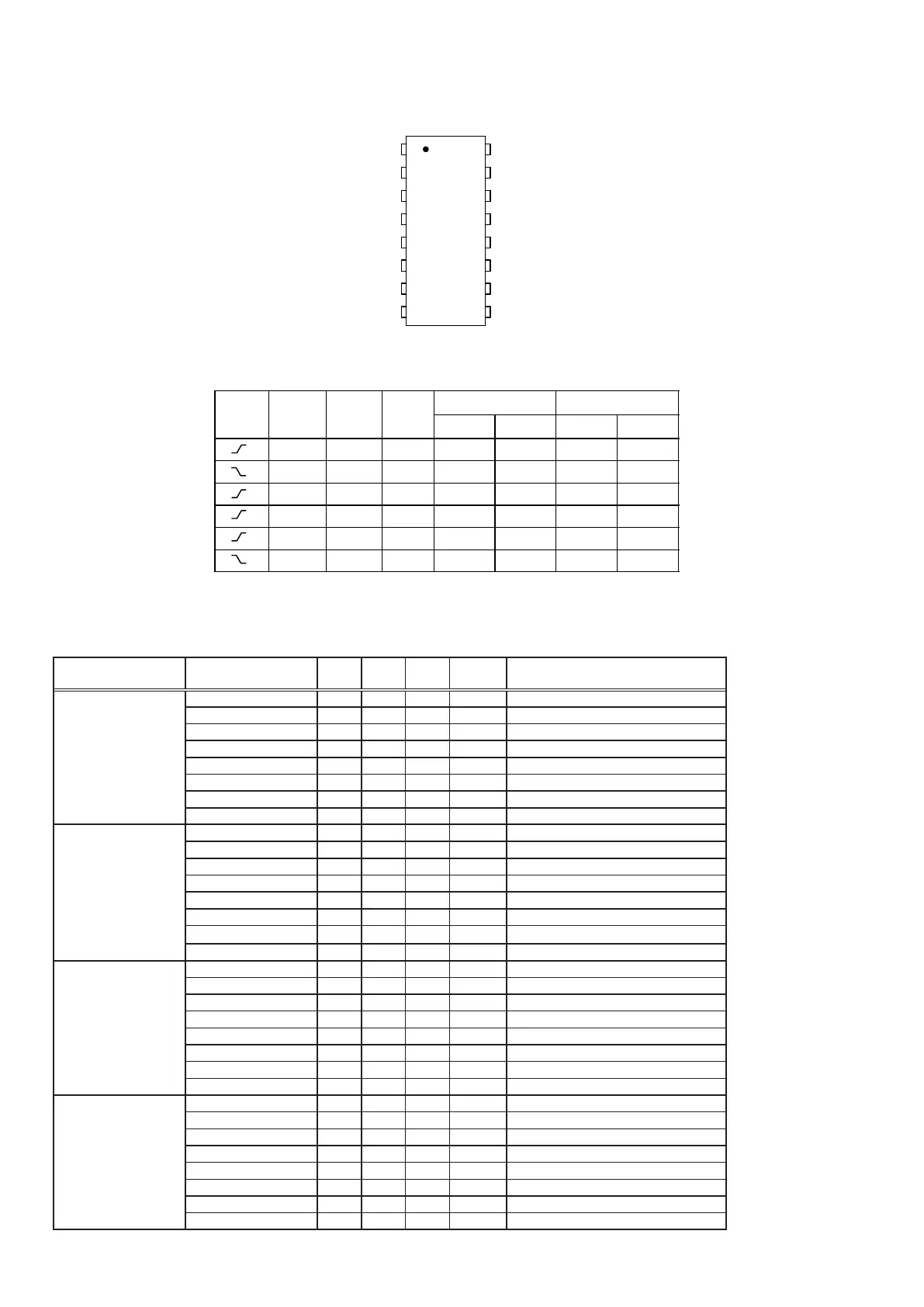

198
MC14094BDTR2G (A.AUDIO/VIDEO : U3001, U3002, U3003, U3004)
MC14094BDTR2G Terminal Functions
Device Pin Name I/O STBY STOP
CEC
STBY
Function
A/V:U3001
PRERL_FW O L L L PRE OUT Mute control
PRERL_FH O L L L PRE OUT Mute control
PRERL_SB O L L L PRE OUT Mute control
PRERL_SW2 O L L L PRE OUT Mute control
PRERL_SW1 O L L L PRE OUT Mute control
PRERL_C O L L L PRE OUT Mute control
PRERL_S O L L L PRE OUT Mute control
PRERL_F O L L L PRE OUT Mute control
A/V:U3002
PRERL_Z2 O L L L Z2 PRE OUT Mute control
PRERL_Z3 O L L L Z3 PRE OUT Mute control
H/PRL O L L L HEADPHONE Relay control
TRIGGER OUT 2 O L L L TRIGGER OUT control
BRL_HIGH O L L L HIGH B Relay control
NC O L L L NC
NC O L L L NC
TRIGGER OUT 1 O L L L TRIGGER OUT control
A/V:U3003
SPRL_SB_EX2 O L L L Speaker Relay control
SPRL_SB_EX1 O L L L Speaker Relay control
SPRL_SB O L L L Speaker Relay control
SPRL_S O L L L Speaker Relay control
SPRL_C O L
L L Speaker Relay control
SPRL_F_EX2 O L L L Speaker Relay control
SPRL_F_EX1 O L L L Speaker Relay control
SPRL_F O L L L Speaker Relay control
A/V:U3004
FANCONTON_1 O L L L FAN control
FANCONTON_2 O L L L FAN control
FANCONT L ON 1 O L L L FAN control
FANCONT L ON 2 O L L L FAN control
SPRL_H O L L L Speaker Relay control
SPRL_H EX1 O L L L Speaker Relay control
NC O L L L NC
NC O L L L NC
MC14094B
http://onsemi.com
2
13
14
15
16
9
10
11
125
4
3
2
1
8
7
6
Q7
Q6
Q5
OUTPUT
ENABLE
V
DD
Q
S
Q
S
Q8
Q1
CLOCK
DATA
STROBE
V
SS
Q4
Q3
Q2
PIN ASSIGNMENT
TRUTH TABLE
Clock
Output
Enable
Strobe Data
Parallel Outputs Serial Outputs
Q1 Q
N
Q
S
* Q
S
0 X X Z Z Q7 No Chg.
0 X X Z Z No Chg. Q7
1 0 X No Chg. No Chg. Q7 No Chg.
1 1 0 0 Q
N
−1 Q7 No Chg.
1 1 1 1 Q
N
−1 Q7 No Chg.
1 1 1 No Chg. No Chg. No Chg. Q7
Z = High Impedance X = Don’t Care
* At the positive clock edge, information in the 7th shift register stage is transferred to Q8 and Q
S
.
ORDERING INFORMATION
Device Package Shipping
MC14094BCP PDIP−16 500 Units / Rail
MC14094BCPG PDIP−16
(Pb−Free)
500 Units / Rail
MC14094BD SOIC−16 48 Units / Rail
MC14094BDG SOIC−16
(Pb−Free)
48 Units / Rail
MC14094BDR2 SOIC−16 2500 Units / Tape & Reel
MC14094BDR2G SOIC−16
(Pb−Free)
2500 Units / Tape & Reel
MC14094BDTR2 TSSOP−16* 2500 Units / Tape & Reel
MC14094BF SOEIAJ−16 50 Units / Rail
MC14094BFG SOEIAJ−16
(Pb−Free)
50 Units / Rail
MC14094BFEL SOEIAJ−16 2000 Units / Tape & Reel
MC14094BFELG SOEIAJ−16
(Pb−Free)
2000 Units / Tape & Reel
For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specifications Brochure, BRD8011/D.
*This package is inherently Pb−Free.
