Denon AVR-E400 Service Manual

＋
LINE IN
+20dB
+10dB
0dB
-20dB
-30dB
-40dB
-10dB
+20dB
+10dB
0dB
-20dB
-30dB
-40dB
-10dB
LINE IN
0dBFS
2.0Vrms
PREOUT
AVR-E400/X2000

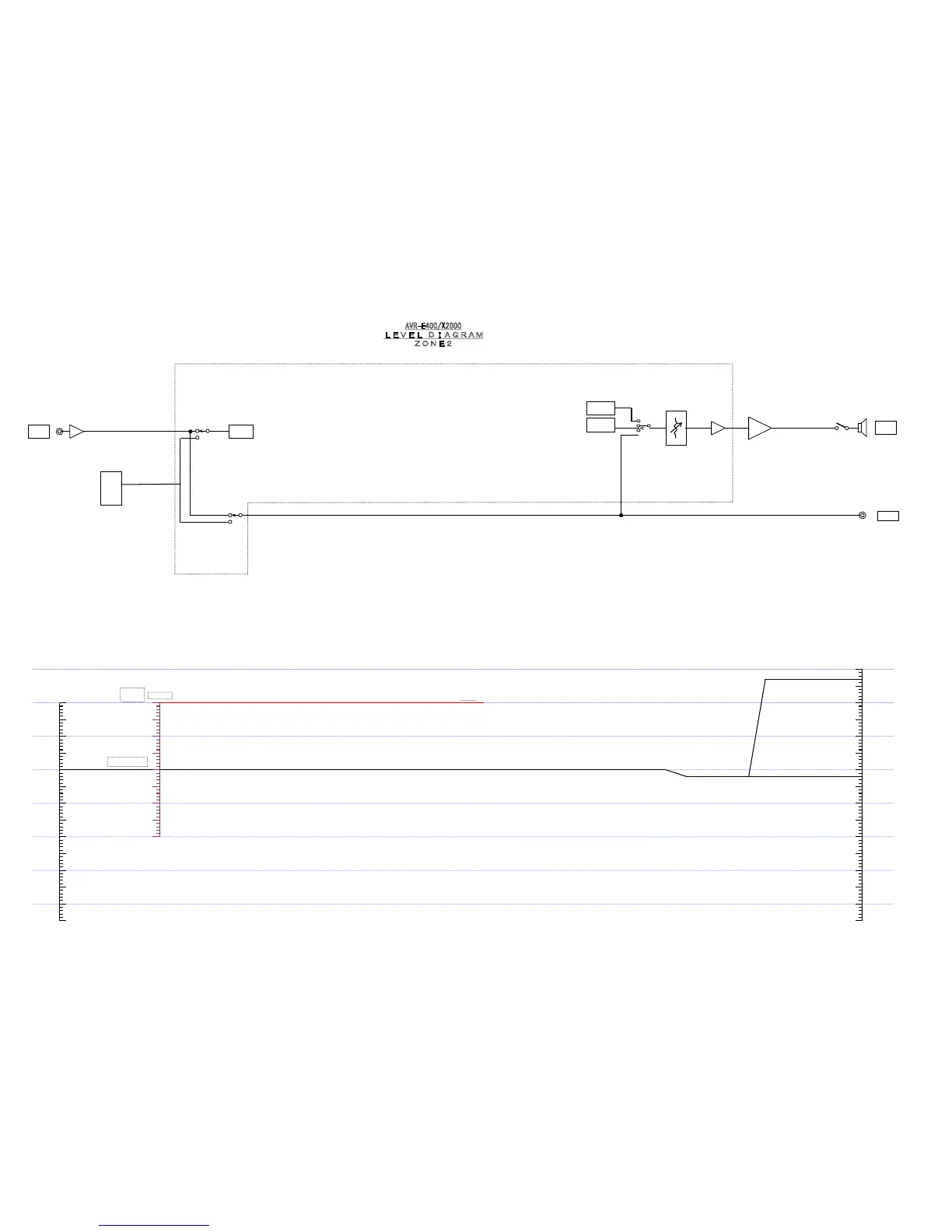

ＬＥＶＥＬ ＤＩＡＧＲＡＭ
ＺＯＮＥ２
-2.0dB
0dBFS
-10dBFS
-20dBFS
-30dBFS
-40dBFS
-20dBFS(DIG.IN)
PCM5100
200mV
MAX SIGNAL LEVEL 2.00Vrms
＋
SPEAKER
+30dB
SP OUT
D/A
from
DA SB-ch
TO
MAIN
from
F-ch
NET/USB DAC
R2A15218FP
ZONE2
(AVRX2000 ONLY)
104

Denon AVR-E400 Specifications

General

HDMI Inputs	6
HDMI Outputs	1
3D Pass-through	Yes
4K Pass-through	Yes
Dolby TrueHD	Yes
DTS-HD Master Audio	Yes
Audyssey MultEQ	Yes
Network Connectivity	Yes
AirPlay	Yes
DLNA	Yes
Input Impedance	47 kOhms
Input Sensitivity	200 mV
Signal-To-Noise Ratio	100 dB
Response Bandwidth	10 Hz - 100 kHz
THD	0.08%
Tuner Presets	56
Tuner Bands	AM/FM
Frequency Response	10 Hz - 100 kHz
Video Upscaling	Yes
Bluetooth	No
Wi-Fi	No
Surround Sound Effects	DTS Neo:6
Audio D/A Converter	192kHz/24-bit
Inputs	HDMI, Digital Optical, Digital Coaxial, Analog
Outputs	HDMI, Headphones
