Denon AVR-E400 Service Manual

InitializingINTEGRATEDNETWORKAVRECEIVER
INTEGRATED NETWORK AV RECEIVER initialization should be performed when the μcom, peripheral parts of μcom, and
Digital PCB were replaced.
1. Turn off the power pressing "Power operation (
X
)" button.
2. Press "Power operation (
X
)" button while simultaneously while pressing "ZONE2 SOURCE" and "DIMMER" buttons.
3. Check that the entire display is ashing at intervals of about 1 second, and then release the 2 buttons.
The microprocessor will be initialized.

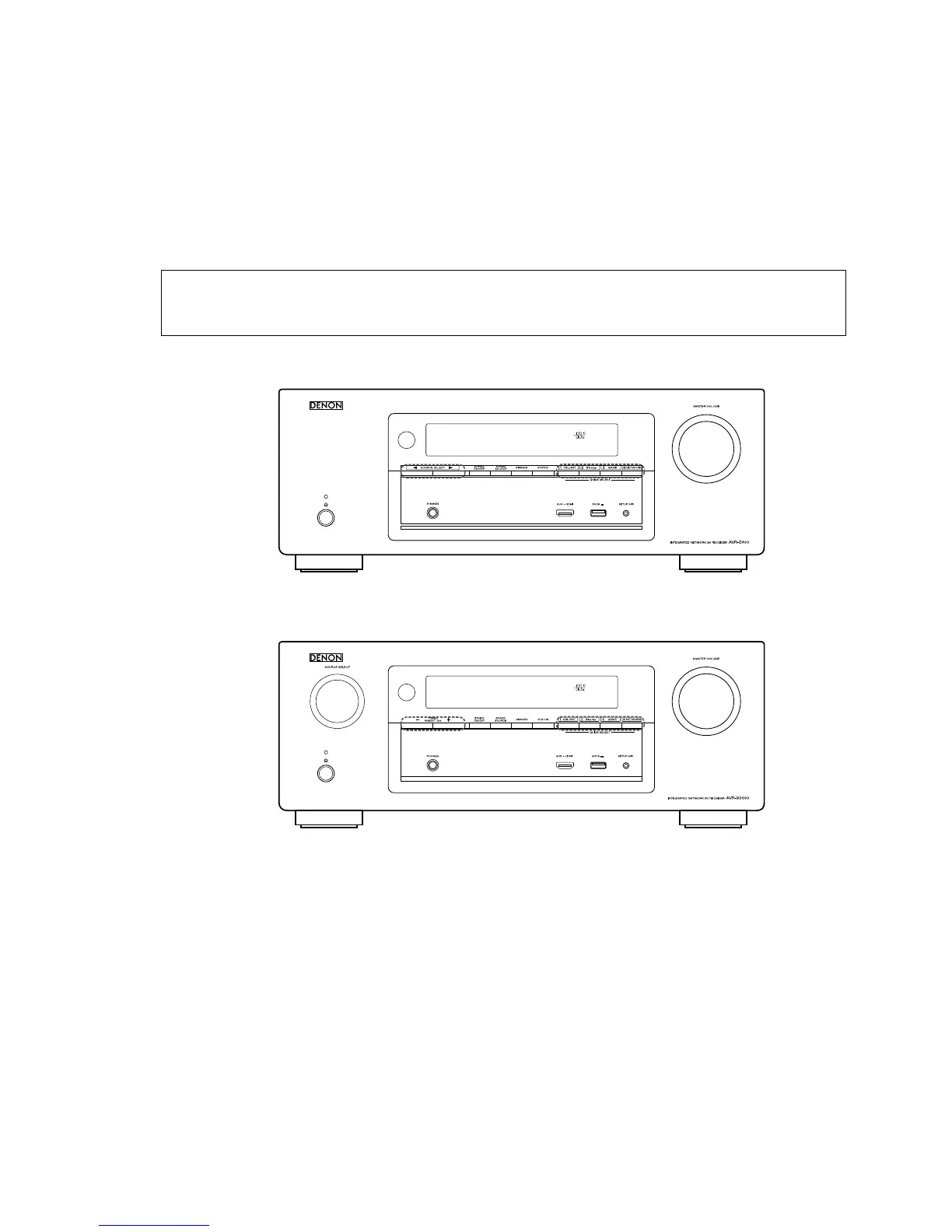

[AVR-E400E3 model]
[AVR-X2000 model]
Service Jig
When you repair the printing board, you can use the following JIG (Extension cable kit).
Please order it from Denon Ofcial Service Distributor in your region if necessary.
8U-110084S : EXTENSION UNIT KIT : 1 Set
8U-110136S : EXTENSION UNIT KIT : 1 Set
(Refer to 52 page.)
When you update the rmware by DFW, you can use the following JIG (RS232C to internal connector conversion adapter
with 4P FFC kit ).
Please order it from Denon Ofcial Service Distributor in your region if necessary.
8U-210100S : WRITING KIT : 1 Set
(Refer to 55 page.)
NOTE: • If step 3 fails, start over from step 1.
• All user settings will be lost and the factory setting will be recovered after the set is initialized.
So make sure to note down your setting beforehand for restoring after the initialization.
CAUTION IN SERVICING
11

Denon AVR-E400 Specifications

General

HDMI Inputs	6
HDMI Outputs	1
3D Pass-through	Yes
4K Pass-through	Yes
Dolby TrueHD	Yes
DTS-HD Master Audio	Yes
Audyssey MultEQ	Yes
Network Connectivity	Yes
AirPlay	Yes
DLNA	Yes
Input Impedance	47 kOhms
Input Sensitivity	200 mV
Signal-To-Noise Ratio	100 dB
Response Bandwidth	10 Hz - 100 kHz
THD	0.08%
Tuner Presets	56
Tuner Bands	AM/FM
Frequency Response	10 Hz - 100 kHz
Video Upscaling	Yes
Bluetooth	No
Wi-Fi	No
Surround Sound Effects	DTS Neo:6
Audio D/A Converter	192kHz/24-bit
Inputs	HDMI, Digital Optical, Digital Coaxial, Analog
Outputs	HDMI, Headphones
