3. PCB HDMI
Proceeding : TOP COVER
→
BACK CHASSIS
→
PCB HDMI

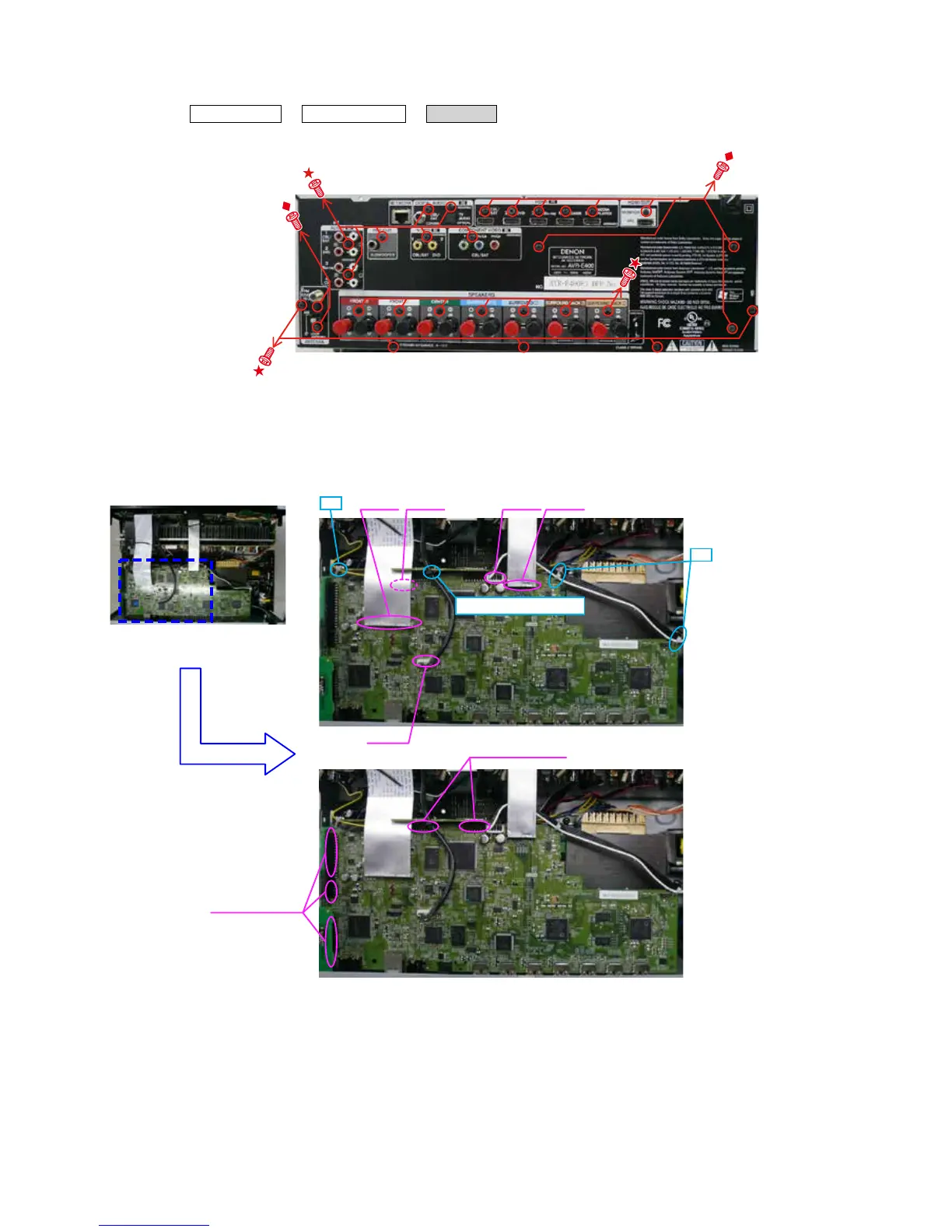

(1) Remove the screws.
(2) Cut the wire clamp band, then disconnect the connector wires and FFC. Disconnect the connector board.
Shooting of photograph: A
N2801
Board to board
Board to board
N3405FCC N3601 FCC
cut
cut
STYLE PIN : Loosen
