Denon AVR-E400 Service Manual

1. FRONT PANEL ASSY
Cautions when replacing the FRONT PANEL (Only AVR-X2000E3)
f
Depending on when the model was manufactured, there may be washers in the FRONT PANEL screw positions. Washers
are not used in the replacement FRONT PANEL.If you are replacing a FRONT PANEL that has washers, discard the
washers.
This caution does not apply to models that are not originally tted with washers.
Proceeding : TOP COVER
→
FRONT PANEL ASSY

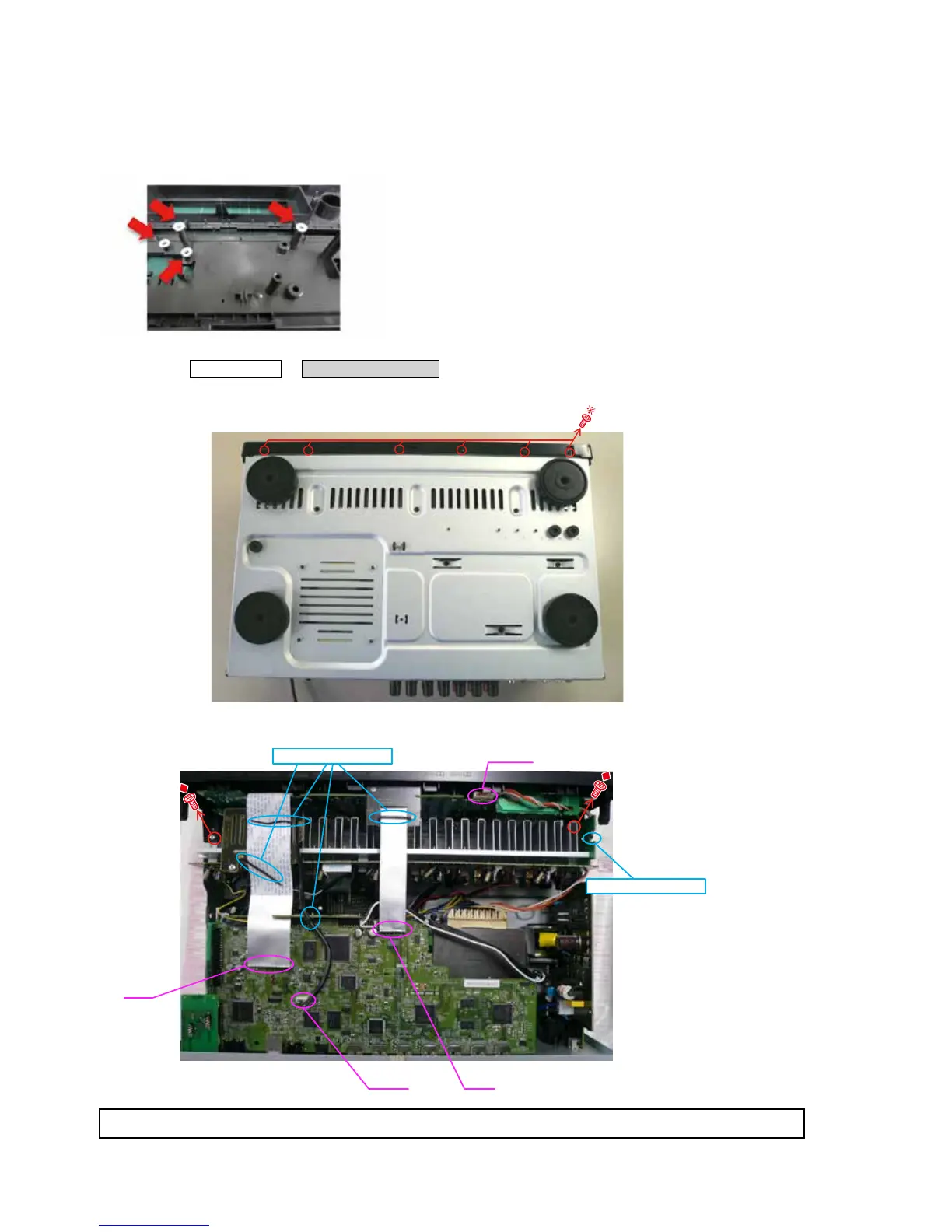

(1) Remove the screws.
(2) Disconnect the connector wires and FFC. Remove the screws.
View from the bottom
N2801 FFC
CP4400
FFC
STYLE PIN : Loosen
STYLE PIN : Loosen
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in FRONT PANEL ASSY.
