4. POWER TRANS MAIN
Proceeding : TOP COVER
→
BACK CHASSIS
→
PCB HDMI
→
POWER TRANS MAIN

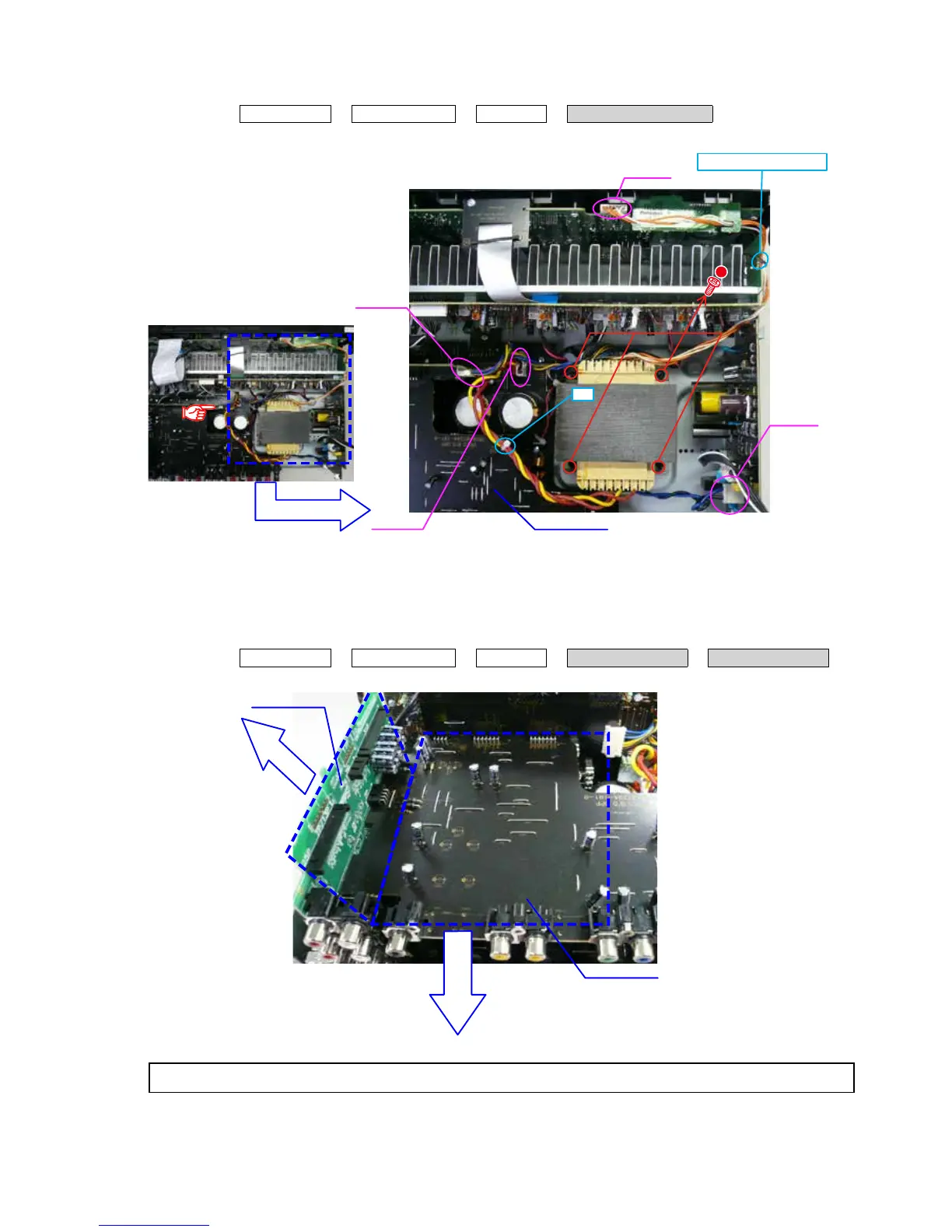

(1) Disconnect the connector wires, then remove the screws
.
5. PCB VIDEO ASSY
Proceeding : TOP COVER
→
BACK CHASSIS
→
PCB HDMI
→
PCB VIDEO ASSY
→
PCB INPUT ASSY
(1) Disconnect the connector board.
CP4142
CP5003
CP4000
CP4400
STYLE PIN : Loosen
cut
PCB VIDEO
PCB INPUT
PCB VIDEO
Please refer to "EXPLODED VIEW" for the disassembly method of each PCB.
