JIG FOR SERVICING
When you repair the printing board, you can use the following JIG (Extension cable kit).
Please order it from DENON Ofcial Service. Distributor in your region if necessary.
NOTE: The incorrect connection with in the JIG (EXTENSION UNIT KIT) may cause damage.
• Connection of PCB HDMI JIG
-Preparation-
8U-110084S : EXTENSION UNIT KIT : 1Set
8U-110136S : EXTENSION UNIT KIT : 1Set
Insulation sheet (Do not supply it) : 1 sheet
Ground lead (Do not supply it) : 2 pc
-Procedures-

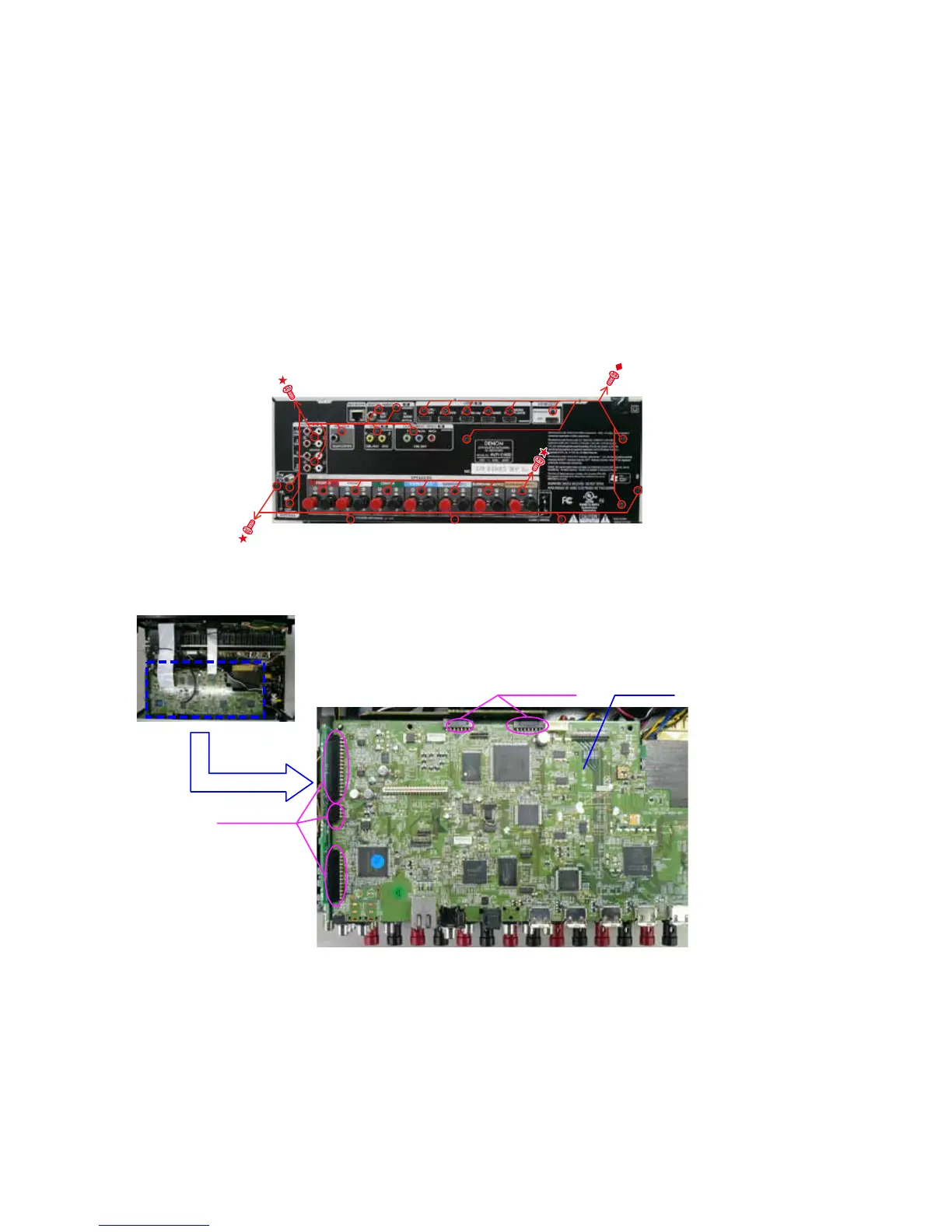

(1) Remove the screws.
(2) Disconnect the connector board.
PCB HDMI
Board to board
Board to board
52
