PIN CONFIGURATION AND FUNCTION DESCRIPTIONS
NOTES
1. THE AD8195 LFCSP HAS AN EXPOSED PAD ON THE UNDERSIDE OF
THE PACKAGE THAT AIDS IN HEAT DISSIPATION. THE PAD MUST BE
ELECTRICALLY CONNECTED TO THE AVEE SUPPLY PLANE IN ORDER
TO MEET THERMAL SPECIFICATIONS.
AD8195
TOP VIEW
(Not to Scale)
1IN0
2IP0
3IN1
4IP1
5VTTI
6IN2
7IP2
10AVCC
30 AVCC
29 PE_EN
28 TX_EN
27 AVEE
26 AVCC
25 AVCC
24 AVEE
21 COMP
40 SCL_IN
39 SDA_IN
38 CEC_IN
37 AVEE
36 VREF_IN
35 SCL_OUT
34 SDA_OUT
31 CEC_OUT
11ON0
12OP0
13VTTO
14ON1
15OP1
16AVCC
17ON2
20OP3
9IP3
8IN3
22 AVCC
23 AVCC
19ON3
18OP2
32 AMUXVCC
33 VREF_OUT
PIN 1
INDICATOR
07049-003

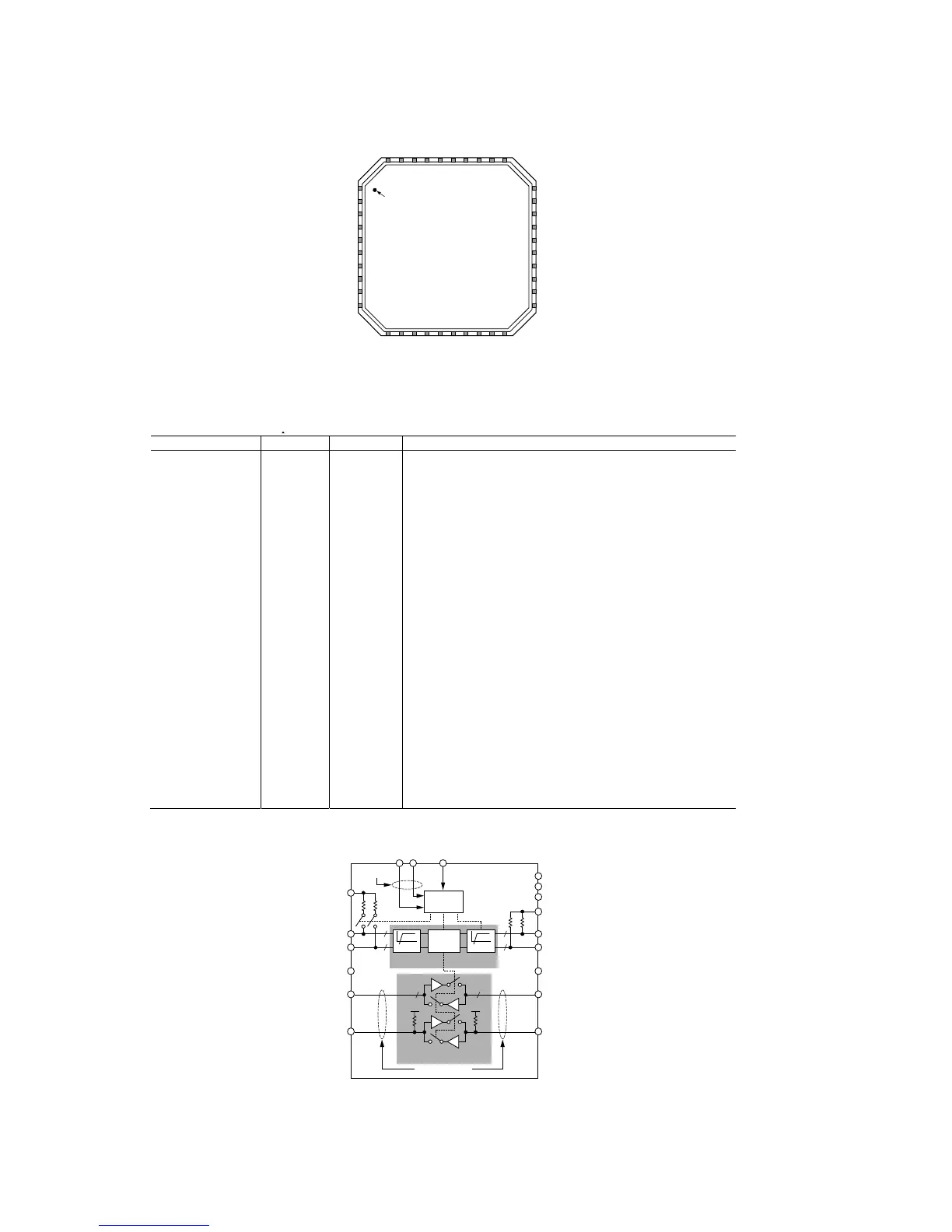

Figure 3. Pin Configuration
Table 6. Pin Function Descriptions
Pin No. Mnemonic Type
1
Description
1 IN0 HS I High Speed Input Complement.
2 IP0 HS I High Speed Input.
3 IN1 HS I High Speed Input Complement.
4 IP1 HS I High Speed Input.
5 VTTI Power Input Termination Supply. Nominally connected to AVCC.
6 IN2 HS I High Speed Input Complement.
7 IP2 HS I High Speed Input.
8 IN3 HS I High Speed Input Complement.
9 IP3 HS I High Speed Input.
10, 16, 22, 23, 25, 26, 30 AVCC Power Positive Analog Supply. 3.3 V nominal.
11 ON0 HS O High Speed Output Complement.
12 OP0 HS O High Speed Output.
13 VTTO Power Output Termination Supply. Nominally connected to AVCC.
14 ON1 HS O High Speed Output Complement.
15 OP1 HS O High Speed Output.
17 ON2 HS O High Speed Output Complement.
18 OP2 HS O High Speed Output.
19 ON3 HS O High Speed Output Complement.
20 OP3 HS O High Speed Output.
21 COMP Control Power-On Compensation Pin. Bypass to ground through a 10 μF capacitor.
24, 27, 37, Exposed Pad AVEE Power Negative Analog Supply. 0 V nominal.
28 TX_EN Control High Speed Output Enable Parallel Interface.
29 PE_EN Control High Speed Preemphasis Enable Parallel Interface.
31 CEC_OUT LS I/O CEC Output Side.
32 AMUXVCC Power Positive Auxiliary Buffer Supply. 5 V nominal.
IP[3:0]
IN[3:0]
VTTI
OP[3:0]
AMUXVCC
AVEE
VTTO
AVCC
ON[3:0]
VREF_IN VREF_OUT
+
–
+
–
EQ
BUFFER
PE
CONTROL
LOGIC
4
4
4
22
4
HIGH SPEED BUFFERED
LOW SPEED BUFFERED
PE_EN
TX_EN
COMP
PARALLEL
BIDIRECTIONAL
AD8195
SCL_IN
SDA_IN
SCL_OUT
SDA_OUT
CEC_IN CEC_OUT
