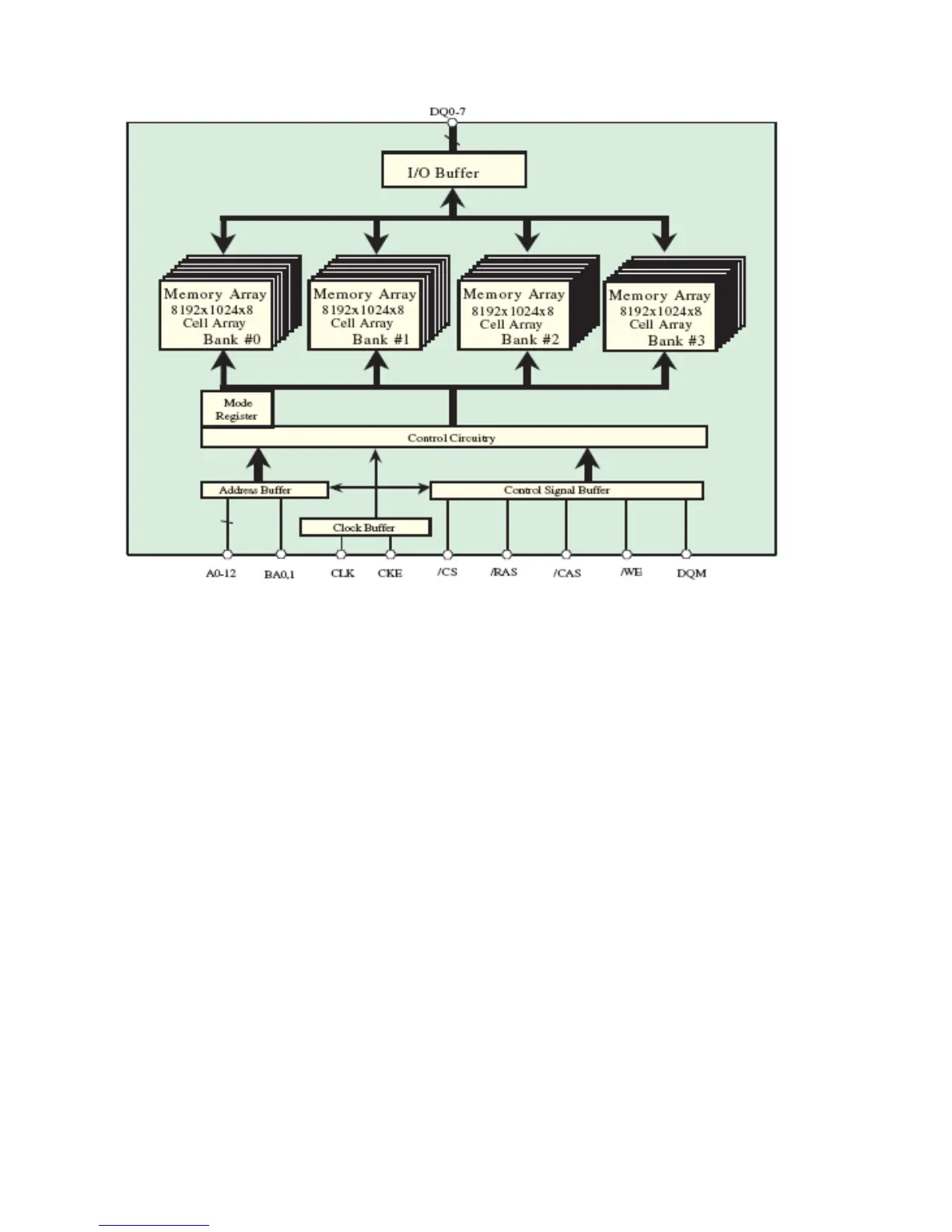

A3V56S30FTP-G6 Block Diagram
A3V56S30FTP
A3V56S40FTP
256M Single Data Rate Synchronous DRAM
Revision 1.1 Mar., 2010
Page 3 / 39
Note:This figure shows the A3V56S30FTP
The A3V56S40FTP configuration is 8192x512x16 of cell array and DQ0-15
Type Designation Code
A 3Ｖ 56 Ｓ４０F ＴＰ－G6
Speed Grade 75： 133MHz@CL=3
7： 143MHz@CL=3
6： 166MHz@CL=3
G： Green
Package Type TP：TSOP (II)
Process Generation
Function Reserved for Future Use
Organization 2
n
3：x8, 4：x16
SDR Synchronous DRAM
Density 56：256M bits
Interface V：LVTTL
Memory Style (DRAM)
Zentel DRAM
166

Denon AVR-E400 Specifications

General

HDMI Inputs	6
HDMI Outputs	1
3D Pass-through	Yes
4K Pass-through	Yes
Dolby TrueHD	Yes
DTS-HD Master Audio	Yes
Audyssey MultEQ	Yes
Network Connectivity	Yes
AirPlay	Yes
DLNA	Yes
Input Impedance	47 kOhms
Input Sensitivity	200 mV
Signal-To-Noise Ratio	100 dB
Response Bandwidth	10 Hz - 100 kHz
THD	0.08%
Tuner Presets	56
Tuner Bands	AM/FM
Frequency Response	10 Hz - 100 kHz
Video Upscaling	Yes
Bluetooth	No
Wi-Fi	No
Surround Sound Effects	DTS Neo:6
Audio D/A Converter	192kHz/24-bit
Inputs	HDMI, Digital Optical, Digital Coaxial, Analog
Outputs	HDMI, Headphones
