Denon AVR-E400

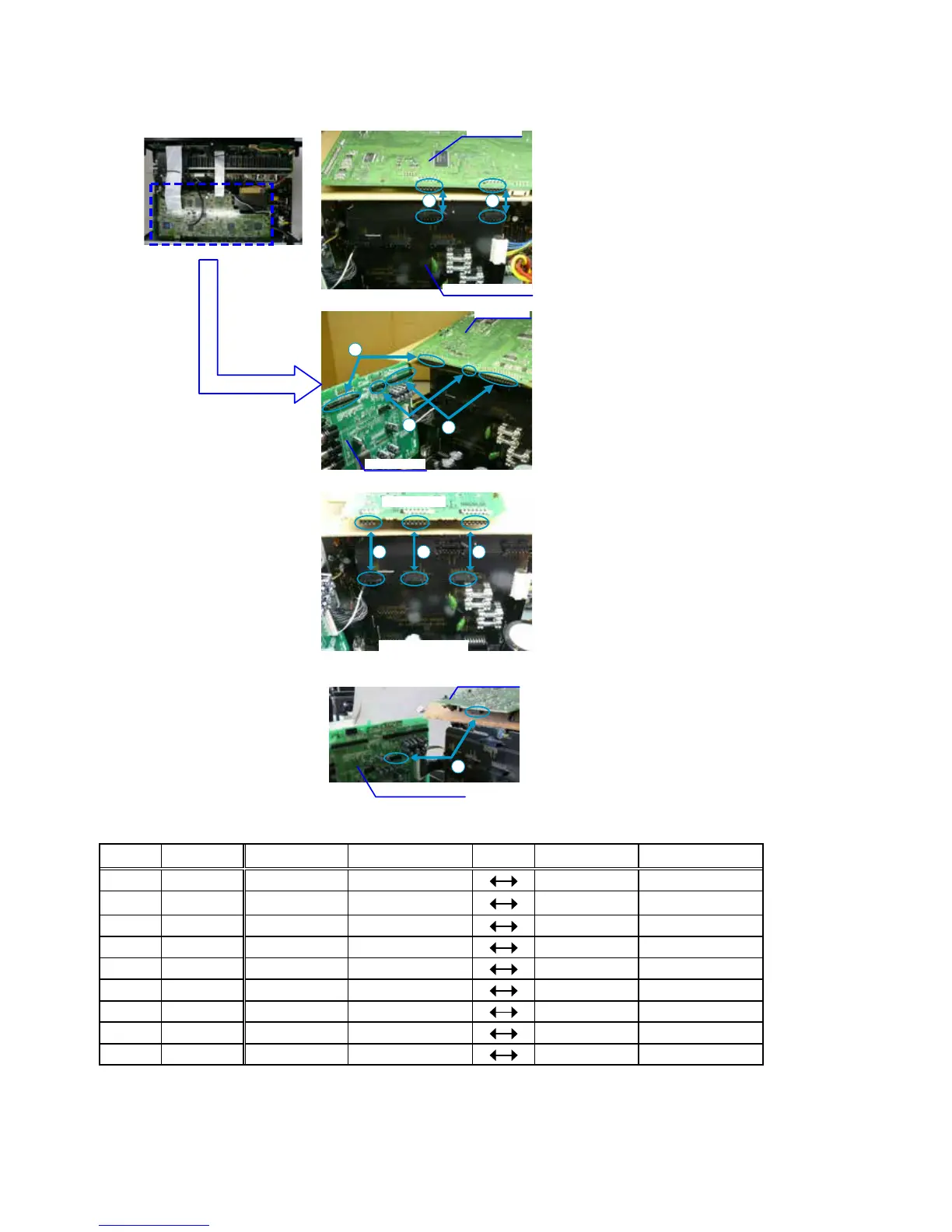

(4) Connect the Nine extension jig cables.
Connection table of Board to Board
No. Pin Ref. No. PCB Ref. No. PCB
q
13pin CP3404 FRONT CNT
N3404 HDMI
w
13pin CP3401 FRONT CNT
N3401 HDMI
e
25pin CP4200 INPUT PCB
N3407 HDMI
r
7pin CP4203 INPUT PCB
N3406 HDMI
t
31pin CP4201 INPUT PCB
N3403 HDMI
y
7pin CP5004 FRONT CNT
CN5004 VIDEO
u
13pin CP5001 FRONT CNT
CN5001 VIDEO
i
13pin CP5000 FRONT CNT
CN5000 VIDEO
o
9pin CP4204 INPUT
CN5003 VIDEO
PCB HDMI
PCB FRONT CNT
PCB INPUT
PCB HDMI
PCB VIDEO
PCB FRONT CNT
PCB VIDEO
PCB FRONT CNT
1 2
3
4
5
6 7 8
9
54
