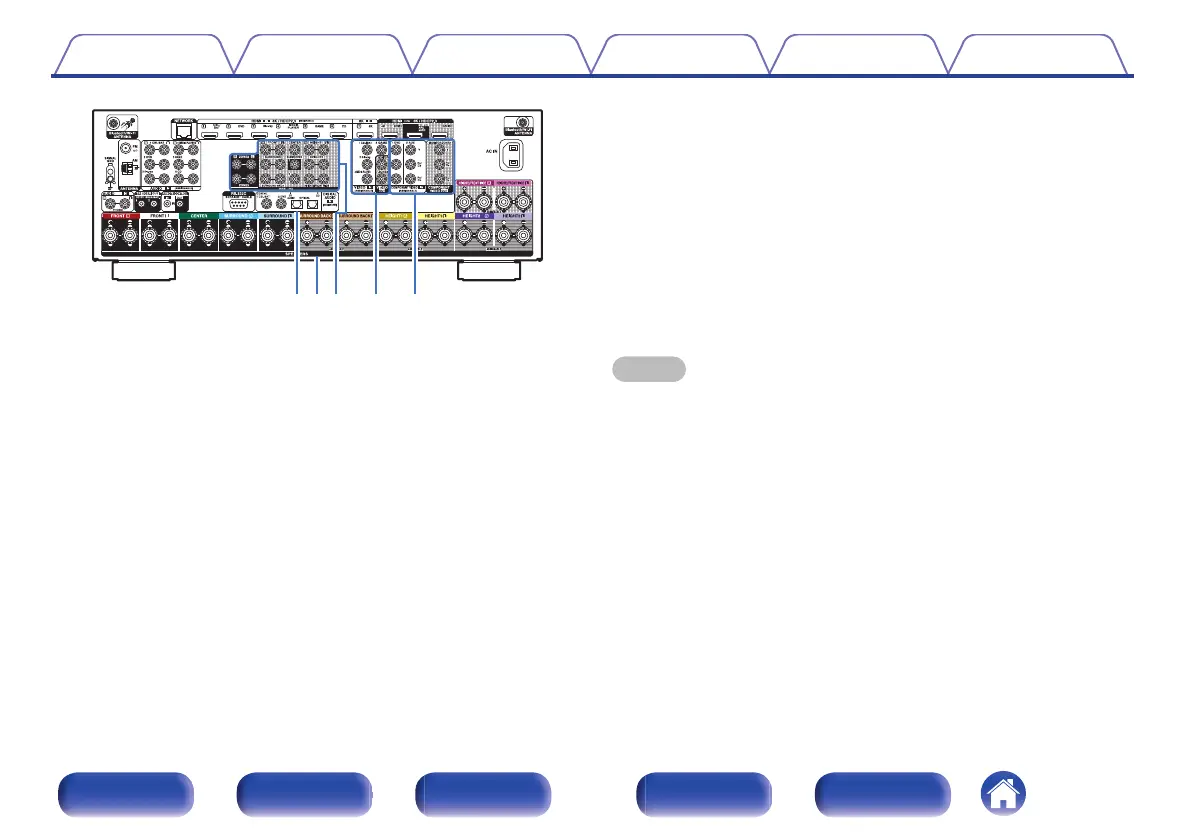

Q2Q3 Q4 Q5Q1
L
Speaker terminals (SPEAKERS)
Used to connect speakers. (v p. 41)
M
PRE OUT connectors
Used to connect a subwoofer with built-in amplifier or an external power
amplifier.
0
“Connecting the subwoofer” (v p. 42)
0
“Example connection for the Auro-3D 11.1-channel
system” (v p. 64)
0
“Connecting 13.1-channel speakers” (v p. 65)
0
“Connecting ZONE” (v p. 178)
N
Video connectors (VIDEO)
Used to connect devices equipped with video connectors.
0
“Connection 3 : TV equipped without an HDMI
connector” (v p. 84)
0
“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 86)
0
“Connecting a DVD player or Blu-ray Disc player” (v p. 87)
O
Component video connectors (COMPONENT VIDEO)
Used to connect devices equipped with component video connectors.
0
“Connection 3 : TV equipped without an HDMI
connector” (v p. 84)
0
“Connecting a DVD player or Blu-ray Disc player” (v p. 87)
NOTE
0
Do not touch the inner pins of the connectors on the rear panel. Electrostatic
discharge may cause permanent damage to the unit.
