Derby cycle Pedelec - Shimano Dual Control Lever

EN-40 Originalbetriebsanleitung Allgemein
Shifting to a lower gear
10. Step on the pedals as you shift gears.
11. LeverAontheright:To shift from a high gear to the
next lower gear, push lever A to Click position 1. To
shift two gears down, move lever A to Click position 2.
When shifting, the chain will be lifted to a larger
sprocket. Lever A then returns to its original position.
12. LeverBontheleft: Push or pull lever B. The chain is
moved to a larger sprocket. Lever B then returns to its
original position.

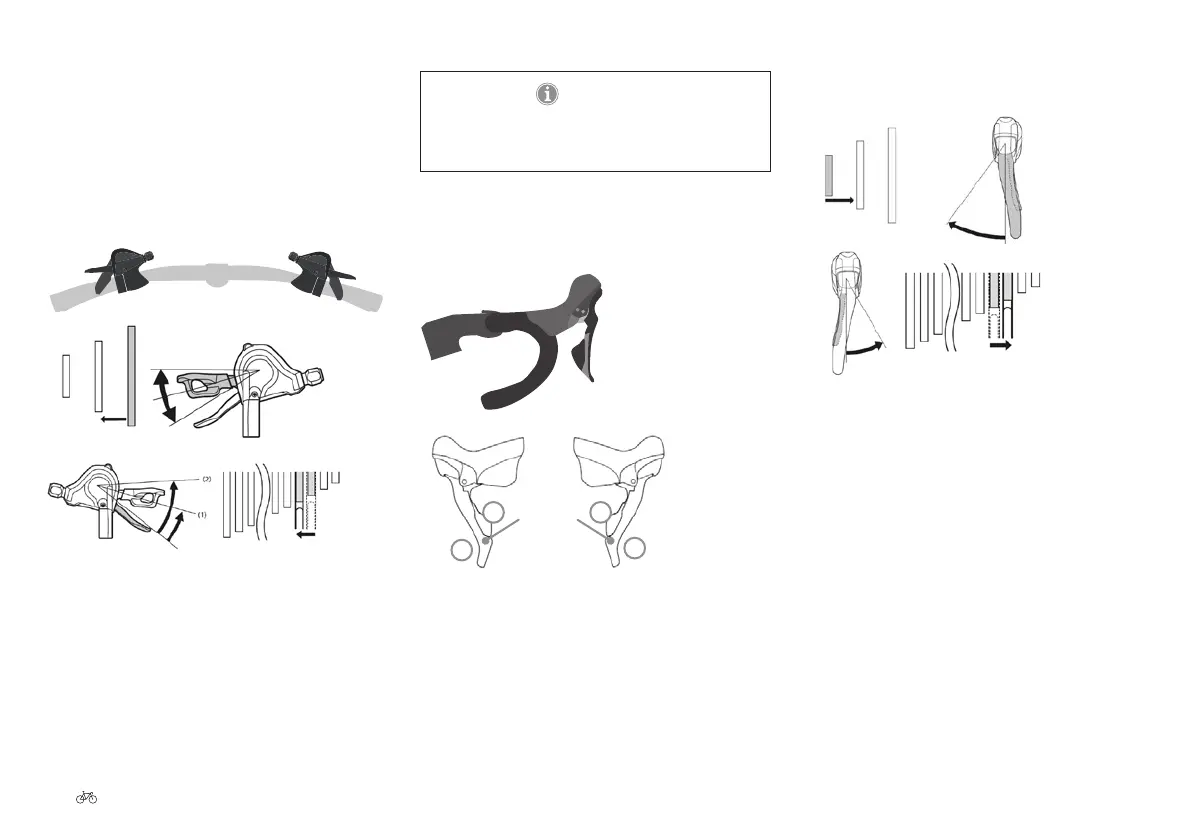

Fig. 69 Shifting to a lower gear ©Shimano
Chainring size
Sprocket size
24.3.1.3 Shimanodualcontrollever
Information
Do not push levers A and B at the same time. If the
levers are pushed at the same time, you will not be able
to shift gears.
With Shimano dual control levers, you can both brake
 23. Brakes Page EN-32 and shift gears.
Shifting to a higher gear
Left: front derailleur Right: rear derailleur
Fig. 70 Shimano Dual Control ©Shimano
A
A
B B
Gearshift and
brake lever
1. Step on the pedals as you shift gears.
2. LeverAontheleft: To shift from a low gear to the next
higher gear, push lever A as far as it will go and then
release it. If the gear is not fully engaged, push the
lever again as far as it will go. When shifting, the chain
will slip onto a larger chainring. Lever A then returns
to its original position.
3. LeverBontheright: To shift from a low gear to the
next higher gear, push lever B once. When shifting, the
chain will be lifted to a smaller sprocket. Lever B then
returns to its original position.
Fig. 71 Shifting to a higher gear ©Shimano
Sprocket size
Chainring size
Shifting to a lower gear
1. Step on the pedals as you shift gears.
2. LeverBontheleft: To shift from a high gear to the
next lower gear, push lever B far as it will go and then
release it. When shifting, the chain will slip onto a
smaller chainring. Lever B then returns to its original
position.
3. LeverAontheright:To shift from a high gear to the
next lower gear, push lever A to Click position 1. To
shift two gears down, move lever A to Click position 2.
When shifting, the chain will be lifted to a larger
sprocket. Lever A then returns to its original position.
