Derby cycle Pedelec - Sram Eagle AXS Gear Lever; Sram Etap AXS Gear Lever

EN-42 Originalbetriebsanleitung Allgemein

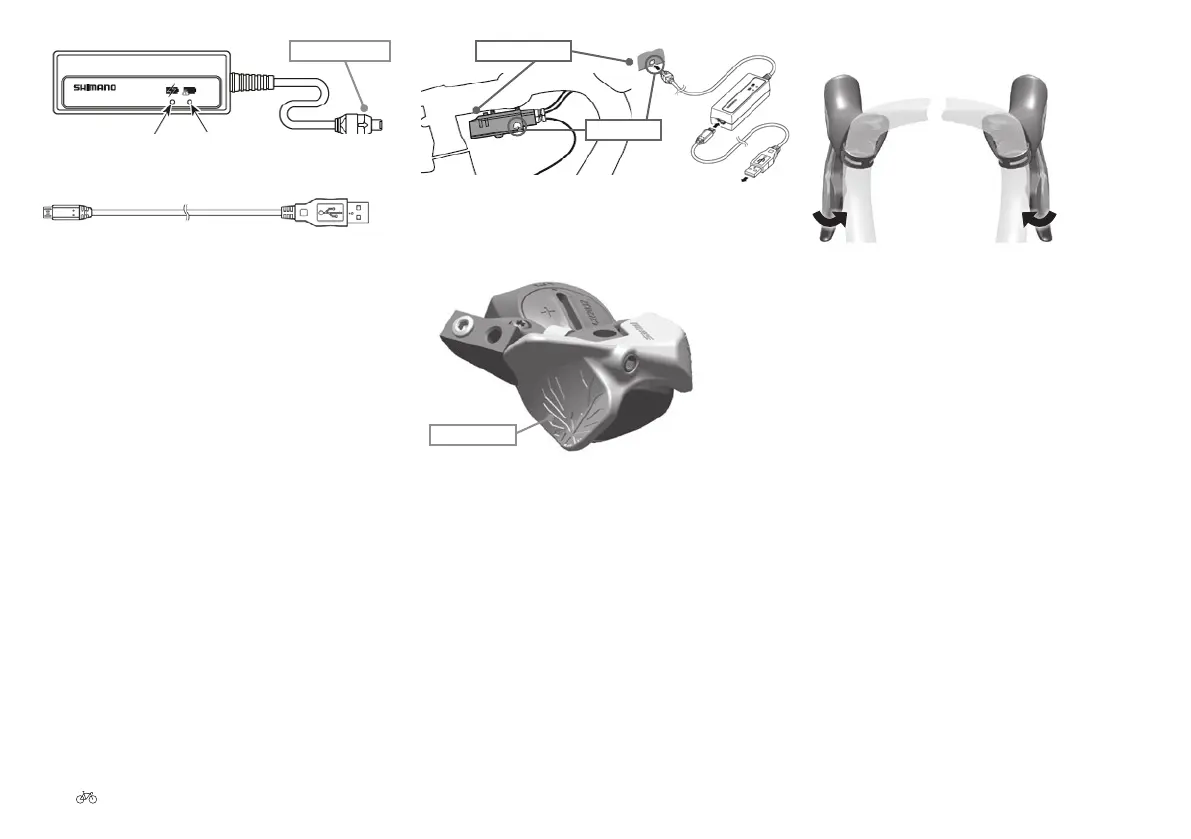

Fig. 74 Charger ©Shimano
Fig. 76 USB cable ©Shimano
CHARGE indicator
Error indicator
Micro USB plug USB plug
System connector
CHARGE indicator: When the battery is charging, the
CHARGE indicator lights up orange. Once charging is
complete, the indicator goes out. If the indicator ashes,
there is a charging error. In this event, proceed as follows:
▪ Re-connect the charging cable or USB cable and try to
charge once again.
▪ Use a charging device with a USB connector and a power
capacity of 1.0 A DC or higher.
▪ The battery or electrical connection are faulty. In this
case, get in touch with your specialist workshop.
ERROR display: If the ERROR display ashes, there is a
fault. In this event, proceed as follows:
▪ Re-connect the charging cable or USB cable and try to
charge once again.
▪ Check the ambient temperature.
▪ The battery or electrical connection are faulty. In this
case, get in touch with your specialist workshop.
Power jack
Display module
Fig. 77 Charging the battery ©Shimano
24.3.2.3 SramEagleAXSgearlever
Fig. 78 Sram Eagle AXS gear lever ©Sram
Rocker switch
Shifting to a higher gear
1. Step on the pedals as you shift gears.
2. Push the rocker switch upward, or the front part of the
rocker switch downward. Hold the rocker switch in the
pressed position to shift multiple gears.
Shifting to a lower gear
1. Step on the pedals as you shift gears.
2. Push the rocker switch downward. Hold the rocker
switch in the pressed position to shift multiple gears.
24.3.2.4 SrameTapAXSgearlever
Fig. 79 Sram eTap AXS gear lever ©Sram
Shifting to a higher gear
1. Step on the pedals as you shift gears.
2. Push the right-hand gear lever to move the rear
derailleur outward to a smaller sprocket. Hold the gear
lever in the pressed position to shift multiple gears.
Shifting to a lower gear
1. Step on the pedals as you shift gears.
2. Push the left-hand gear lever to move the rear
derailleur inward to a larger sprocket. Hold the gear
lever in the pressed position to shift multiple gears.
For 2-derailleur systems: Push both gear levers at the same
time to move the front derailleur inward or outward.
