Originalbetriebsanleitung Allgemein EN-47

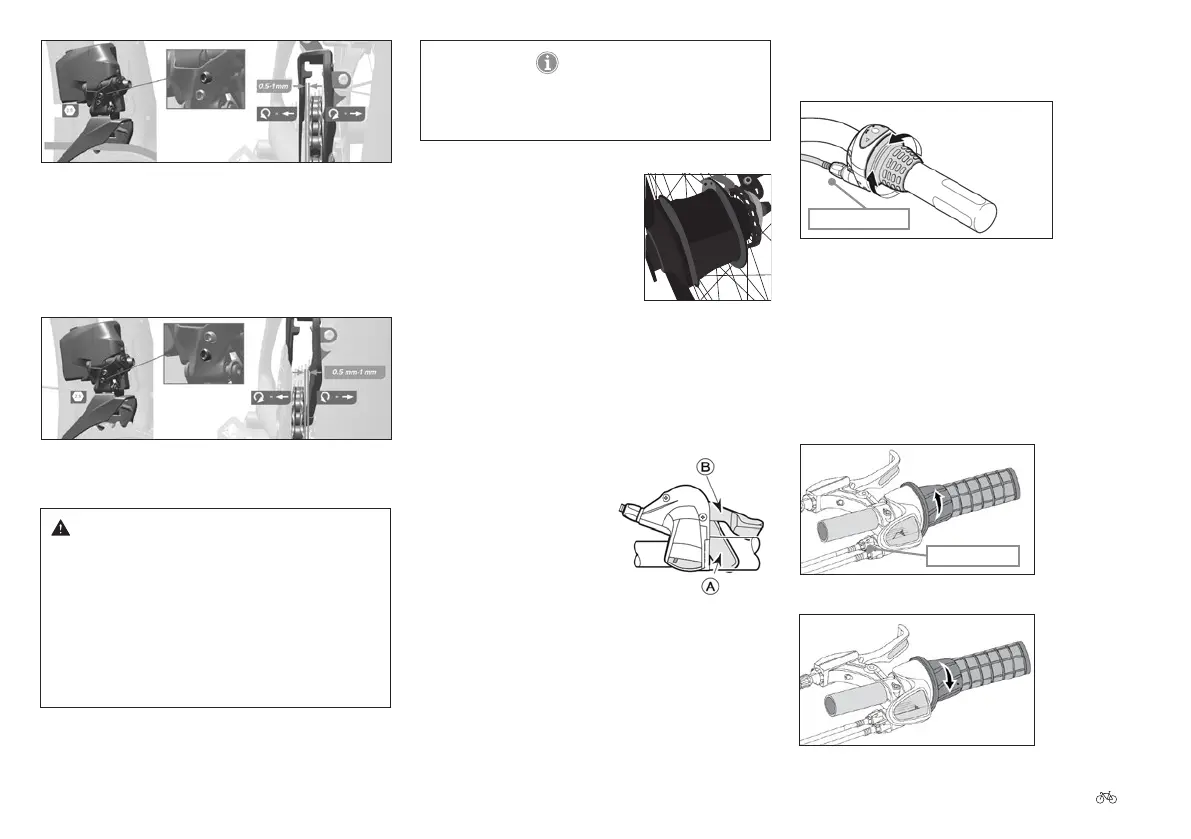

Fig. 96 Setting the upper stop ©Sram
3. Shift the chain to the small chainring and the largest
sprocket.
4. Turn the lower stop screw until the distance between
the inside of the inner front derailleur cage plate and
the chain is between 0.5 and 1 mm.
Fig. 97 Setting the upper stop ©Sram
24.4 Hub gear
Warnings
Seriousfallsandaccidentscausedbyinsucient
bicycle control.
▪ Make sure that you always only shift one gear
upward or downward using the twist grip. Do not
step on the pedals when shifting gears.
▪ If the wheel is dicult to turn, the brake shoes must
be replaced, or the hub lubricated. This should be
done in a specialist workshop.
Information
In rare cases, the internal gears and the pawls in the
hub can make a noise when shifting. These noises are
normally harmless.
With hub gears, gear changes
take place on the rear wheel hub
and use the planetary gear
principle. Hub gears can be cable
(mechanical) or motor (electric)
driven. On both variants, this is
done using the control element on
the handlebars.
24.4.1 Control elements
24.4.1.1 Shimanostandardgearlever
1. Do not step on the pedals as you shift gears.
2. To shift to a lower gear, move lever A up. The number
on the display will become smaller. Lever A will return
to its original position after shifting.
3. To shift to a higher gear,
move lever B up or down.
The number on the display
will become larger. Lever B
will return to its original
position after shifting.
24.4.1.2 Shimano
standard twist grip
1. Do not step on the pedals as you shift gears.
2. To shift to a higher gear, turn the twist grip step by
step towards you. The number on the display will
become larger.
Fig. 98 Hub gear
Fig. 99 Shimano standard
gear lever ©Shimano
3. To shift to a lower gear, turn the twist grip step by step
away from you. The number on the display will become
smaller.
Fig. 100 Shimano standard twist grip ©Shimano
Adjustment screw
24.4.1.3 Enviolotwistgrip
1. Do not step on the pedals as you shift gears.
2. Shift to a low gear when starting o or going uphill.
To do this, move the twist grip in the direction of the
"mountain" symbol.
3. To ride faster on at stretches or downhill, move the
twist grip in the direction of the "level" symbol.
Fig. 101 Shifting to a lower gear ©Shimano
Setting screws
Fig. 102 Shifting to a higher gear ©Shimano
