Originalbetriebsanleitung Allgemein EN-41

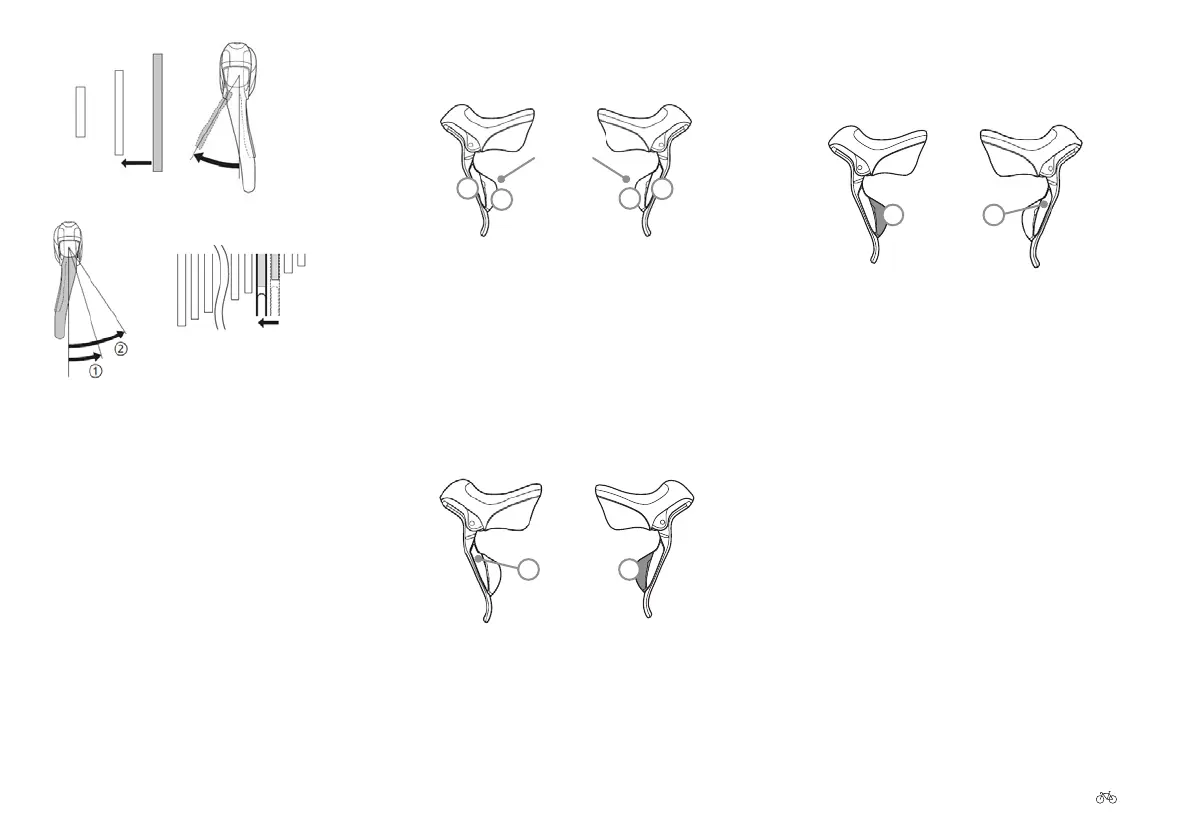

Fig. 72 Shifting to a lower gear ©Shimano
Chainring size
Sprocket size
24.3.2 Electronic derailleur: control elements
24.3.2.1 ShimanoUltegraDi2gearlever
Fig. 73 Shimano Ultegra Di2 ©Shimano
Left: front derailleur Right: rear derailleur
A
A
B
B
Brake lever
Shifting to a higher gear
1. Step on the pedals as you shift gears.
2. Button A on the left: To shift from a low gear to the
next higher gear, push button A briey. When shifting,
the chain will slip onto a larger chainring.
3. Button B on the right: To shift from a low gear to the
next higher gear, push button B briey. When shifting,
the chain will be lifted to a smaller sprocket.
Fig. 74 Shifting to a higher gear ©Shimano
B
A
Shifting to a lower gear
1. Step on the pedals as you shift gears.
2. Button B on the left: To shift from a high gear to the
next lower gear, push button B briey. When shifting,
the chain will slip onto a smaller chainring.
3. Button A on the right: To shift from a high gear to the
next lower gear, push button A. When shifting, the
chain will be lifted to a larger sprocket.
Fig. 75 Shifting to a lower gear ©Shimano
B
A
24.3.2.2 Shimano Ultegra Di2: charger and
USB cable
Charging the battery: To charge the shifter battery, proceed
as follows:
1. Plug the system connector of the charger into the
charge socket of the display module.
2. Connect the Micro USB plug to the Micro USB socket
of the charger.
3. Connect the USB plug to a USB mains charger or the
USB port of a computer. The CHARGE indicator lights
up orange. Charging is complete when the CHARGE
indicator goes out. The charging time for an empty
battery is approximately 1.5 hours using a USB mains
charger. On the USB port of a computer, charging can
take up to 3 hours.
Click position
Click position
