5.2.4. Isolated version: EtherCAT® 
The basic concept is the same as on the isolated USB version but the EtherCAT® slices do not have CAN                    
or analog-output. They also do not have a separate sync-connector, since the synchronisation is done via                
the EtherCAT® protocol. 


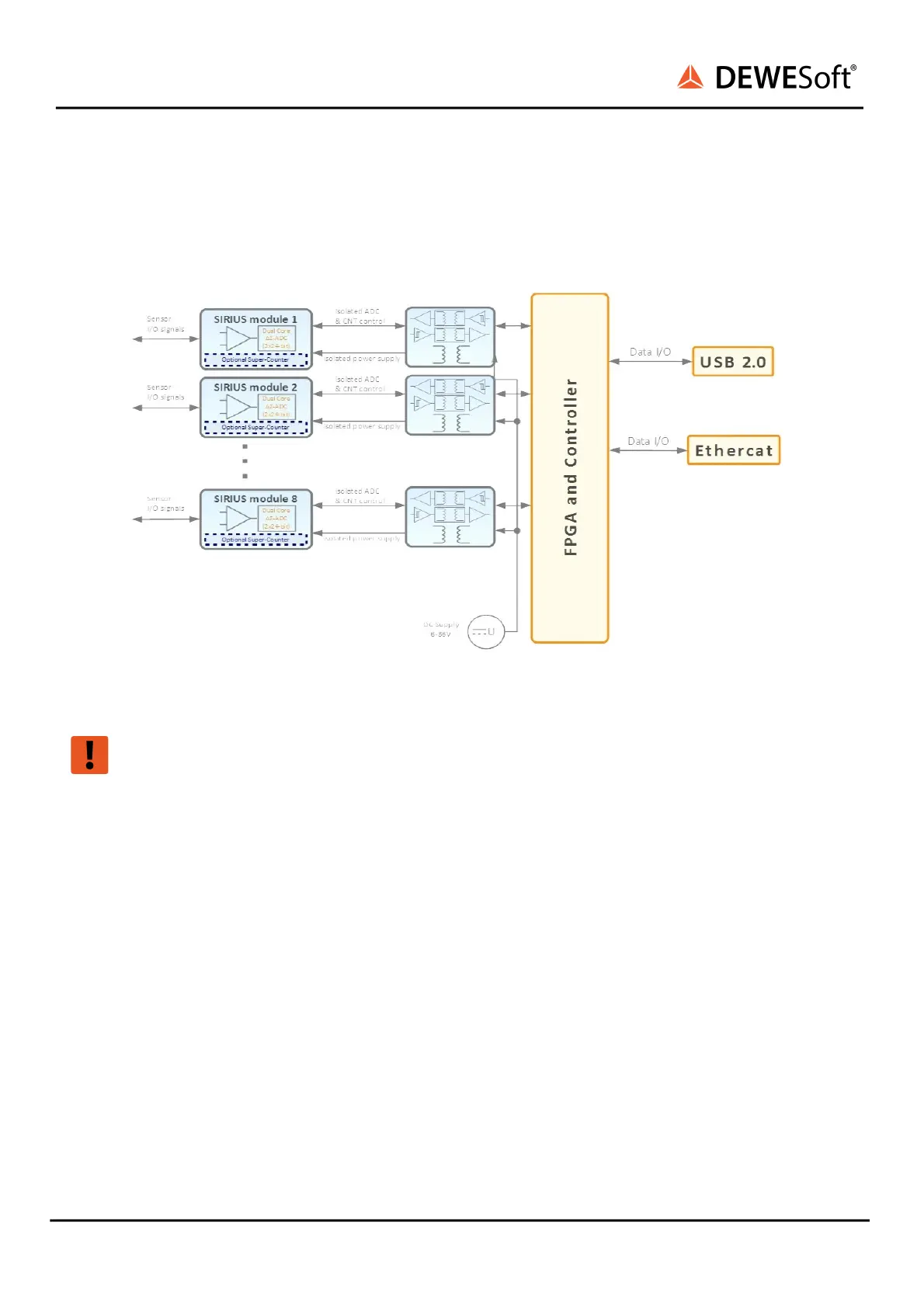

EtherCAT® Motherboard 

Warning 
Be careful with voltages >25 VAC or >35 VDC! These voltages are already high enough in order                 
to get a perilous electric shock by touching the wiring. 
 
