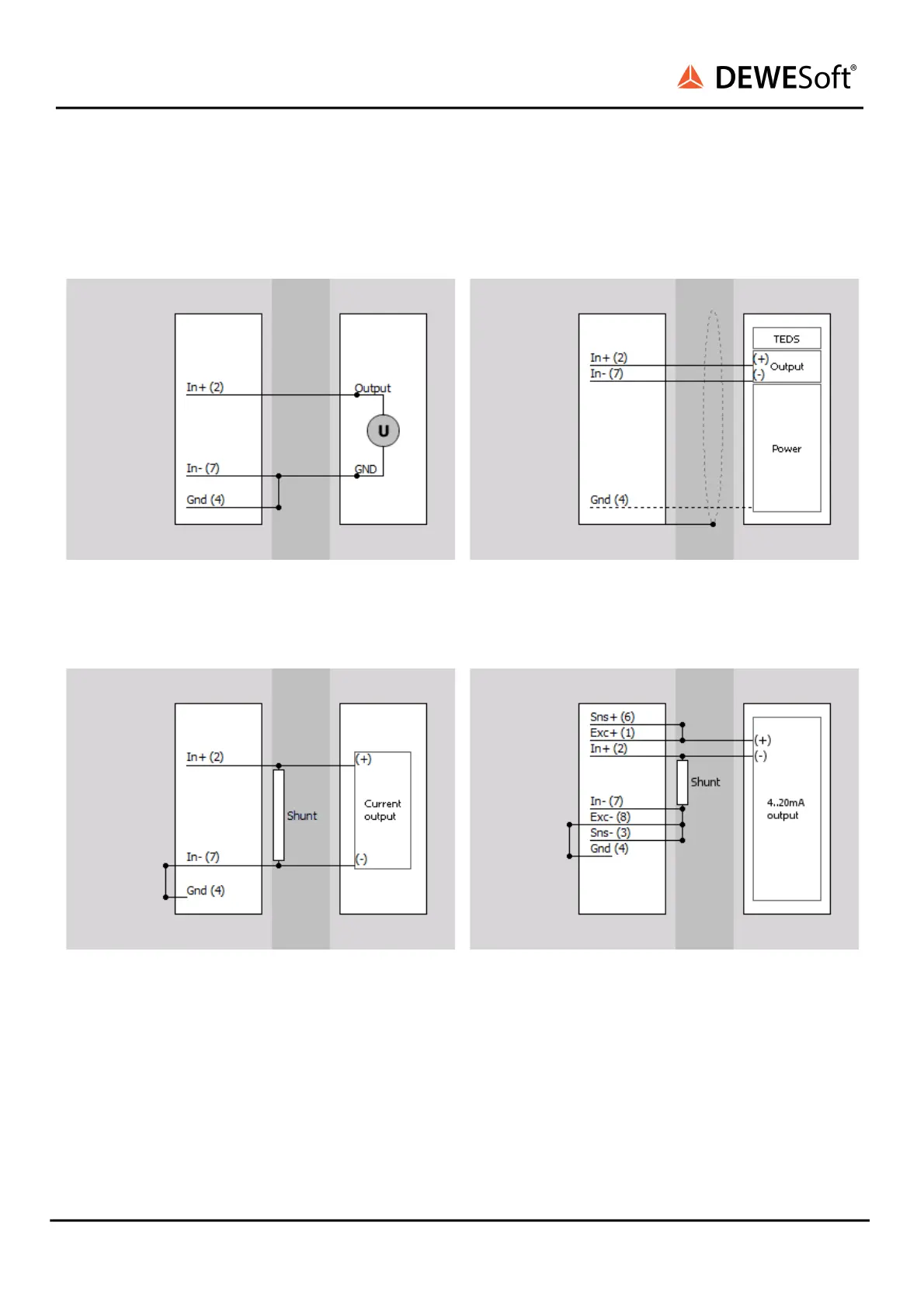

5.17.2.1. HD-STGS: Voltage 
Voltage - Single ended 



Voltage – Differential 
Use only when sensor Output (+) and Output (-)         
are referenced to Gnd. Gnd must be connected.       

5.17.2.2. HD-STGS: Current 
External direct shunt 


External loop powered shunt 


