DEWESOFT SIRIUS-SBOXe - HD-STGS-L1 B10 F: Current; HD-STGS-L1 B10 F: Voltage

/
SIRIUS
® 
TECHNICAL REFERENCE MANUAL 



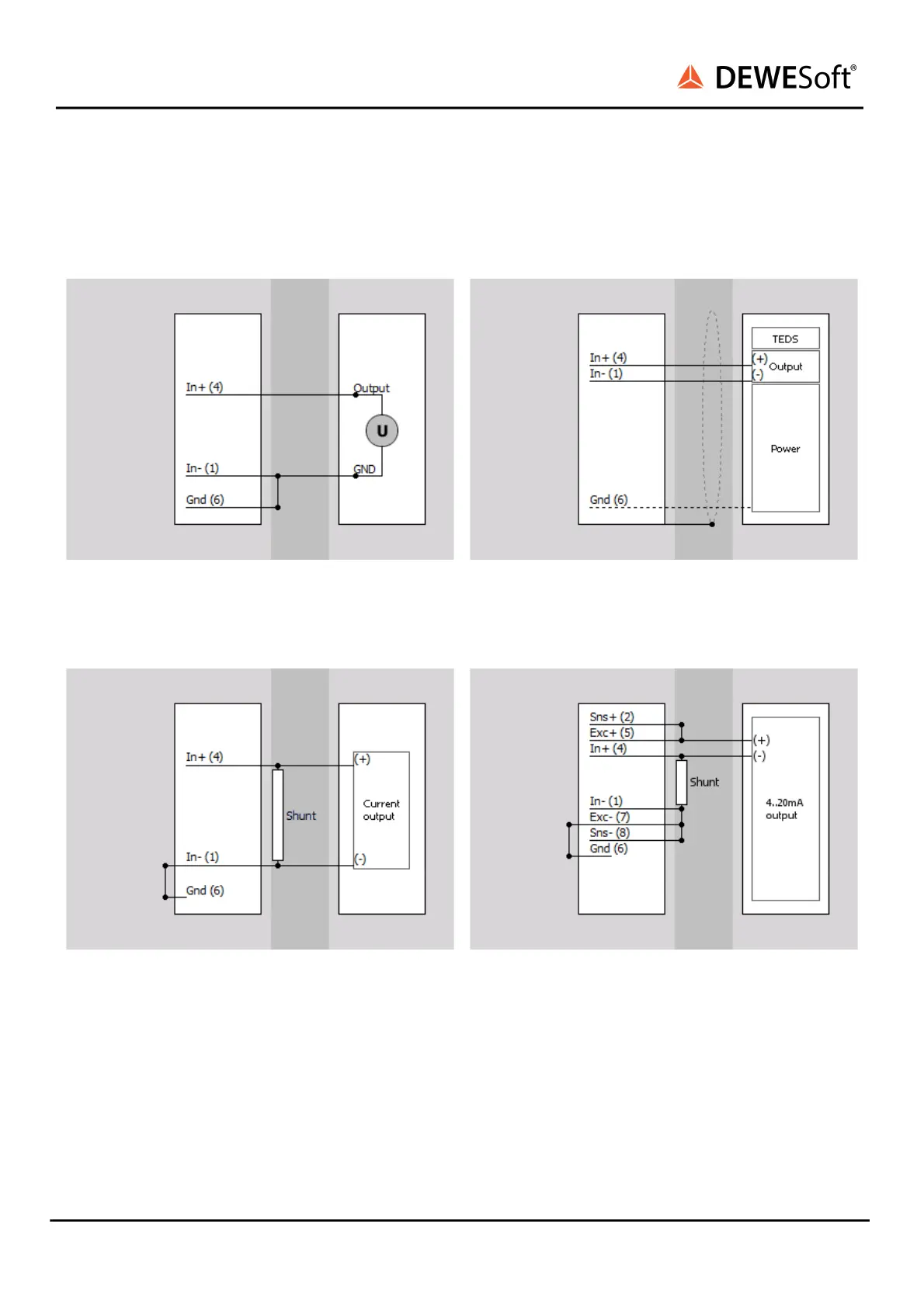

5.17.3.1. HD-STGS-L1B10f: Voltage 
Voltage - Single ended 



Voltage – Differential 
Use only when sensor Output (+) and Output (-) 
are referenced to Gnd. Gnd must be connected. 

5.17.3.2. HD-STGS-L1B10f: Current 
External direct shunt 


External loop powered shunt 


SIRIUS
®
V20-1 225 / 336  
