4.5.5. SIRIUS-SBOXfe: Rear side 



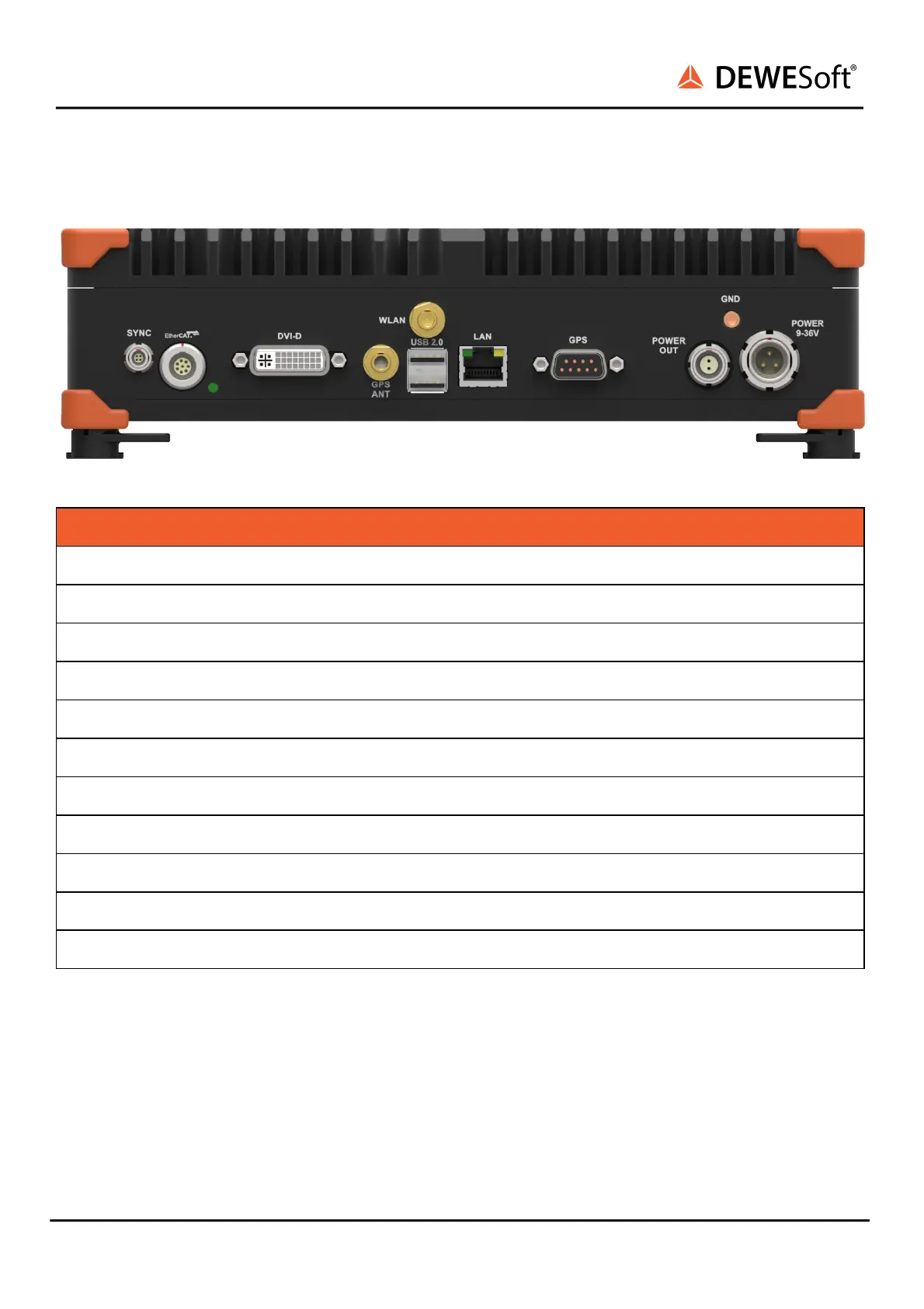

SIRIUS-SBOXfe Rear side 

Name 
Description 
SYNC 
4-pin LEMO female sync connector 
EtherCAT 
8-pin LEMO female connector 
DVI-D 
DVI video out (VGA and HDMI compatible) 
GPS ANT 
SMA Female GPS antenna 
WLAN 
RP-SMA Female WLAN antenna: WiFi 802.11 b/g/n 
USB 2.0 
2x USB 2.0 
LAN 
1x GLAN Ethernet, RJ45 connector 
GPS 
Connection for external GPS display, PPS, Remote ON 
POWER OUT 
2-pin LEMO female connector 
GND 
M4 grounding insert 
POWER 9-36V 
3-pin LEMO male connector 


 
